Access the quick setup wizard from the endpoint or web interface, as described in Accessing the Quick
Setup Procedure on page 75.
Procedure
1. Set the Use Gatekeeper list to Yes.

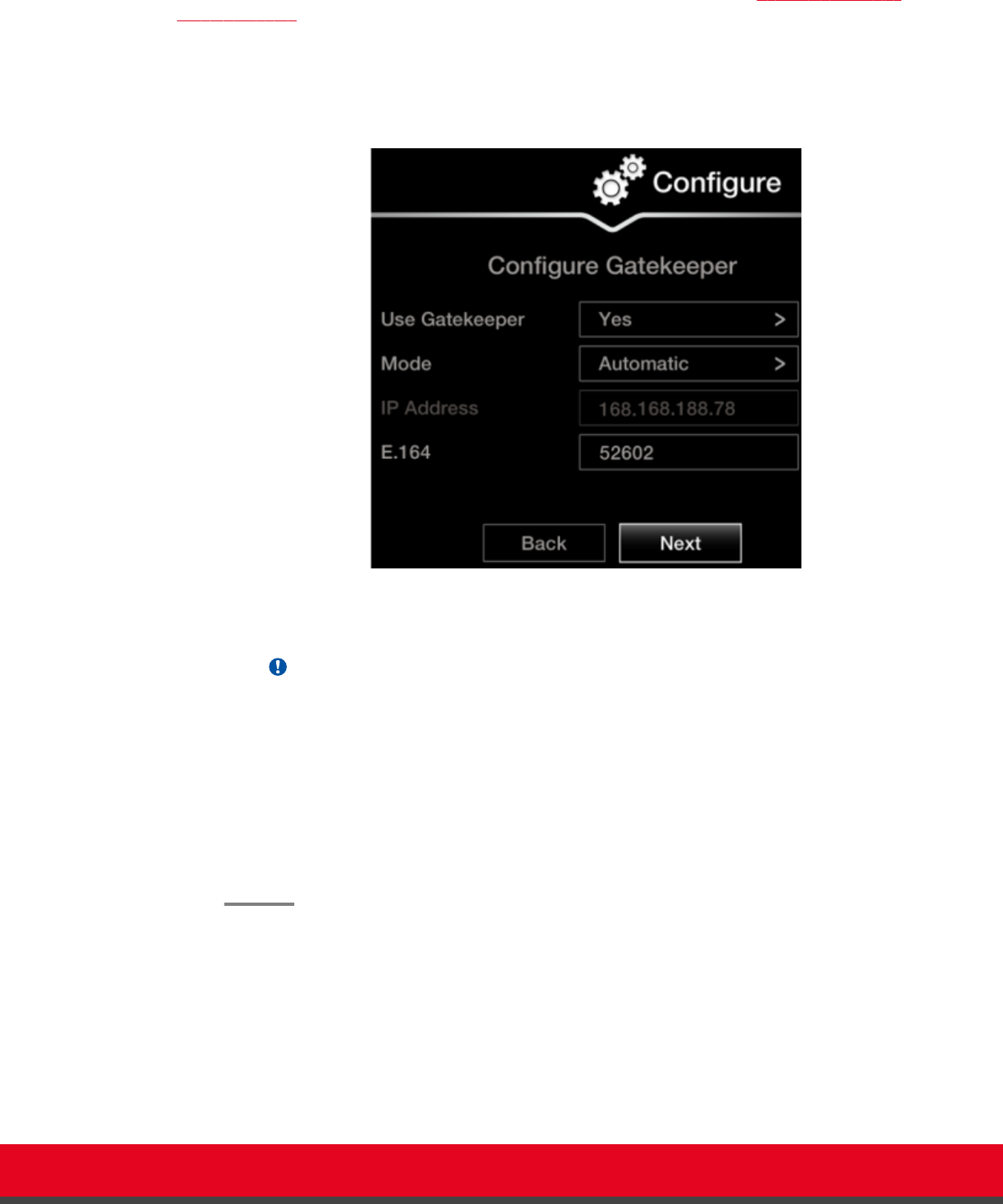

Figure 48: Gatekeeper settings
2. Set the Mode list to Manual.
Important:
If the gatekeeper is configured to be automatically detected by endpoints, select
Automatic (depends on the type of gatekeeper). Consult the network administrator.
3. Enter the IP address of the gatekeeper in the Gatekeeper IP address field.
4. Enter the H.323 number required to dial the XT Codec Unit in the E.164 field.
5. Select Done.
The basic configuration of your Scopia XT Endpoint for IP Office is complete.
