Procedure
1. Press ok/menu and select one of the following from the IP Address Mode list:
•
Automatic: (Default) Select this option if the system gets its IP address automatically
(using DCHP).
The IP address, Subnet mask, Gateway, and DNS fields appear as read-only. See
Table 13: Configuring IP addresses on page 81 for a description of these fields.
•
Manual: Select this option if you require a static IP address. This is required, for
example, if the XT Endpoint is connected directly to the Internet, without any address
translation, or when other external endpoints need to dial to this endpoint as an MCU.
Enter the fields as described in Table 13: Configuring IP addresses on page 81.
To secure SIP connections using TLS certificates, your system must have a static IP
address, since the system generates the certificate request using its IP address as the
Common Name (CN). For more information, see Securing Connections to the XT
Endpoint Using TLS on page 131.

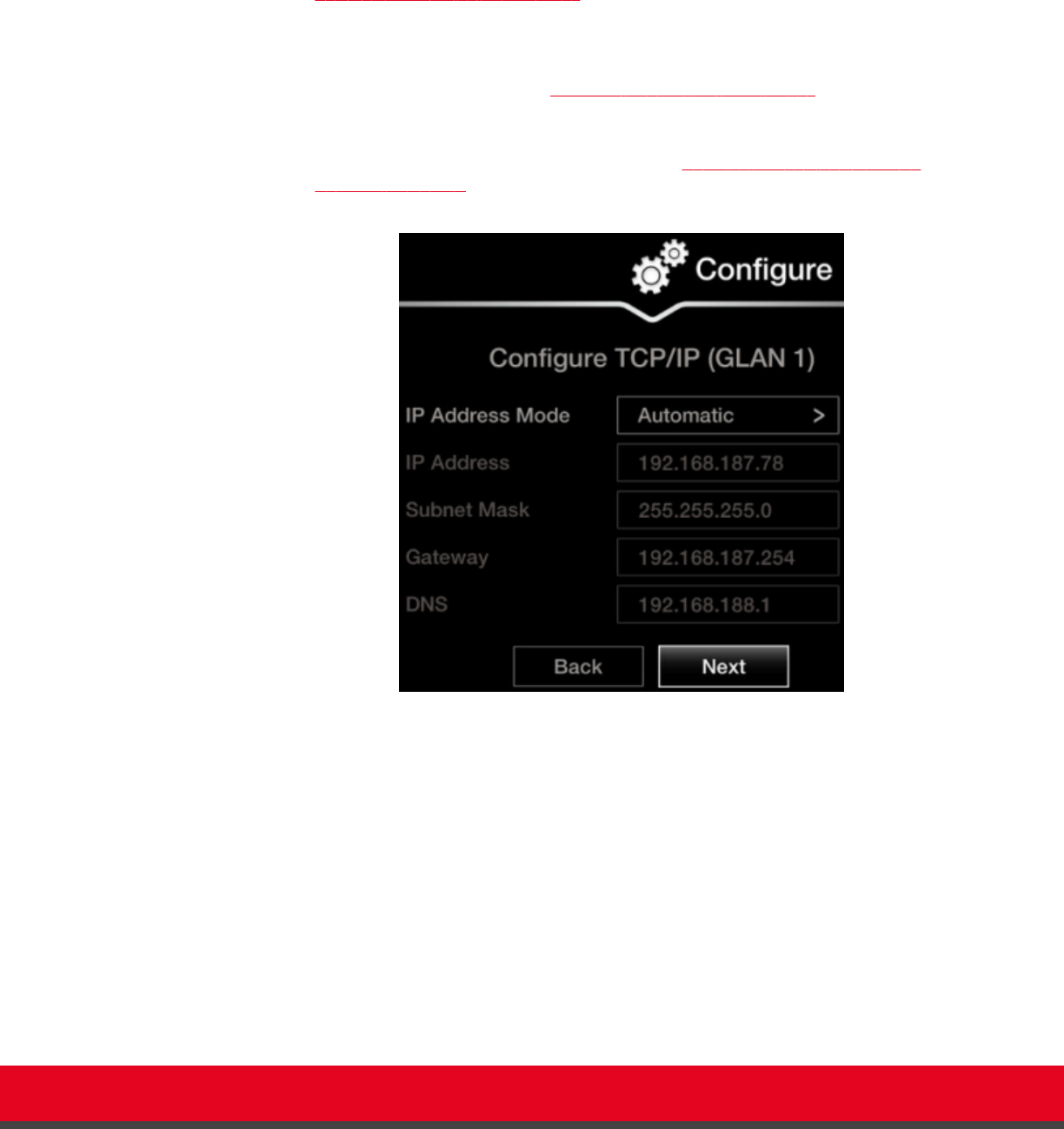

Figure 47: Defining IP Settings
2. If you selected Manual, configure the following, as instructed by the system administrator:
