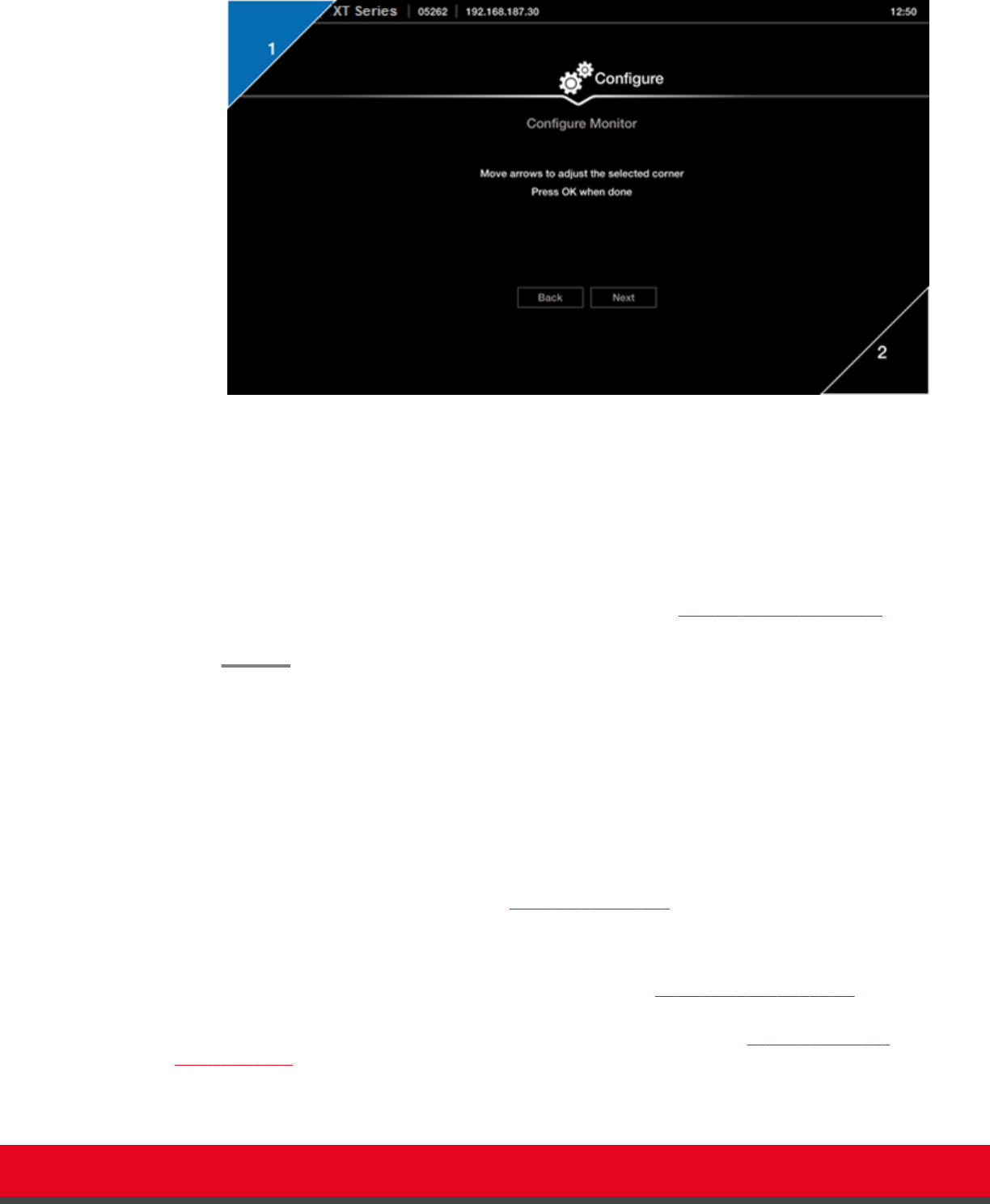

Figure 46: Adjusting the image position
3. Use the arrow keys on the XT Remote Control Unit to position the image, and then press
ok/menu.
4. Press 2 to align the bottom right corner.
5. Use the arrow keys on the XT Remote Control Unit to position the image, and then press
ok/menu.
6. To configure network settings, select Next and continue with Configuring Network Settings
on page 79.
Configuring Network Settings
About this task
This procedure describes how to set up the network settings and the IP address the system uses for
placing a call.
If you are modifying the network settings after initial setup, navigate to Configure > Network > GLAN 1
from the Main menu. For more information, see Configuring GLAN Use on page 112.
Before you begin
This procedure is performed as part of the Quick Setup Wizard, after Adjusting the Image Position on
page 78. Consult with your network administrator to configure these fields.
Access the quick setup wizard from the endpoint or web interface, as described in Accessing the Quick
Setup Procedure on page 75.
