Adjusting the Image Position
About this task
If your monitor does not center the image correctly, perform this procedure. This can be done from the
endpoint itself only.
Before you begin
This procedure is performed as part of the Quick Setup Wizard, after Setting the System Name and
Language on page 76.
Access the quick setup wizard from the endpoint, as described in Accessing the Quick Setup Procedure
on page 75.
Procedure
1. Examine the image on the monitor to decide if you need to adjust the image position.
The triangles in the top left corner and bottom right corner must be fully visible so that the
white border of the triangle is fully visible on all sides.
If the image is centered correctly, skip this procedure and select Next.

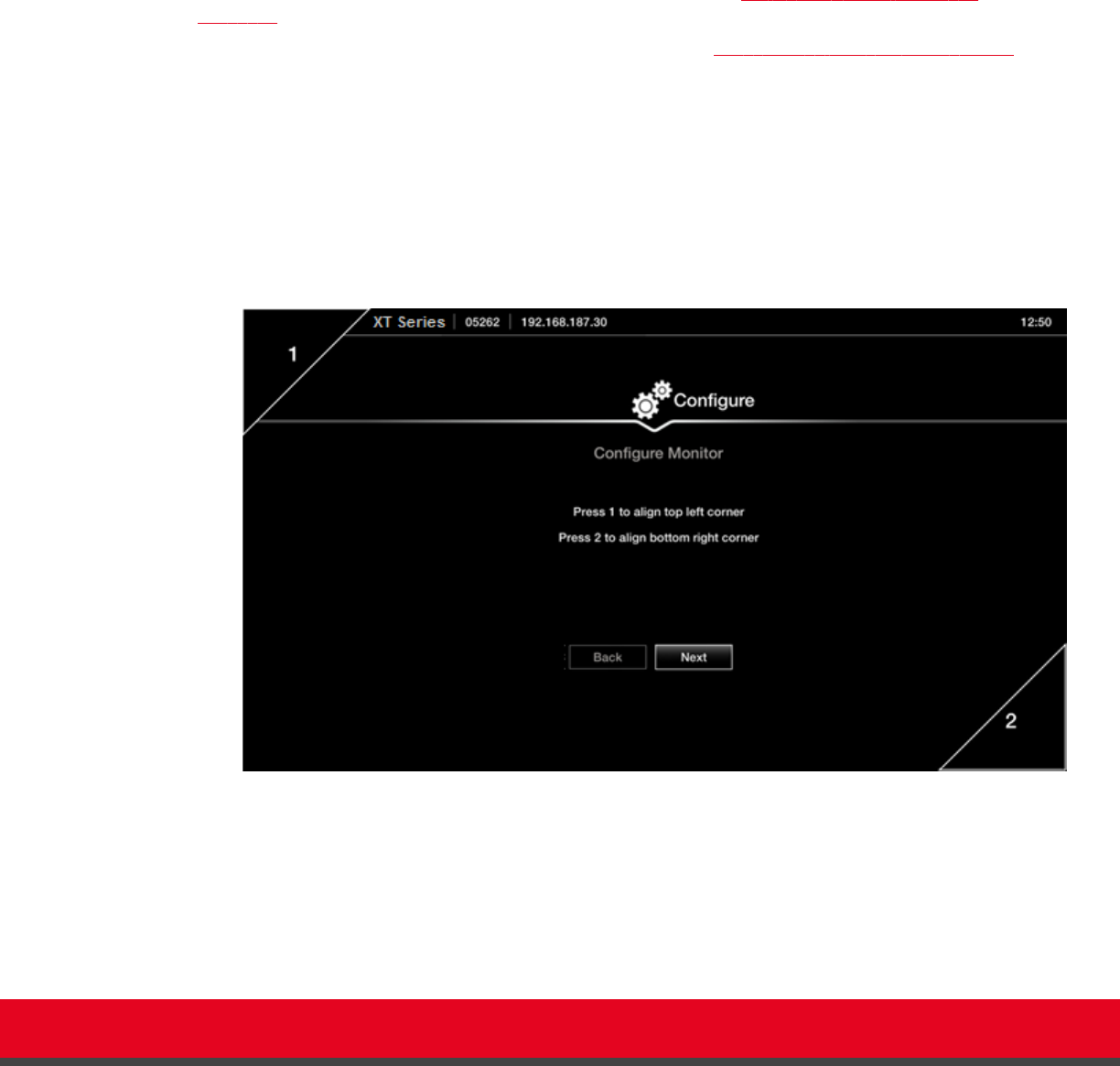

Figure 45: Examining the image position
2. Press 1 to align the top left corner.
