Before you begin
•
Obtain a license key for the Scopia XT Endpoint for IP Office as described in Registering the
Scopia XT Endpoint for IP Office to Obtain a License Key on page 69 or, if you are enabling a
license option to extend Scopia XT Endpoint for IP Office functionality, see Installing and Enabling
Licenses which Extend System Functionality on page 69.
•
If configuring from the endpoint, you must first enable advanced configuration, as described in
Maintaining the XT Endpoint Locally from the Endpoint on page 66.
Procedure
1. Access the Scopia XT Endpoint for IP Office's Main menu.
2. Select Configure > Advanced > Utilities > Licenses.
The Licenses screen appears, displaying the serial number (10-digit string) and user code.
The user code corresponds to the system MAC address. These fields are not editable.

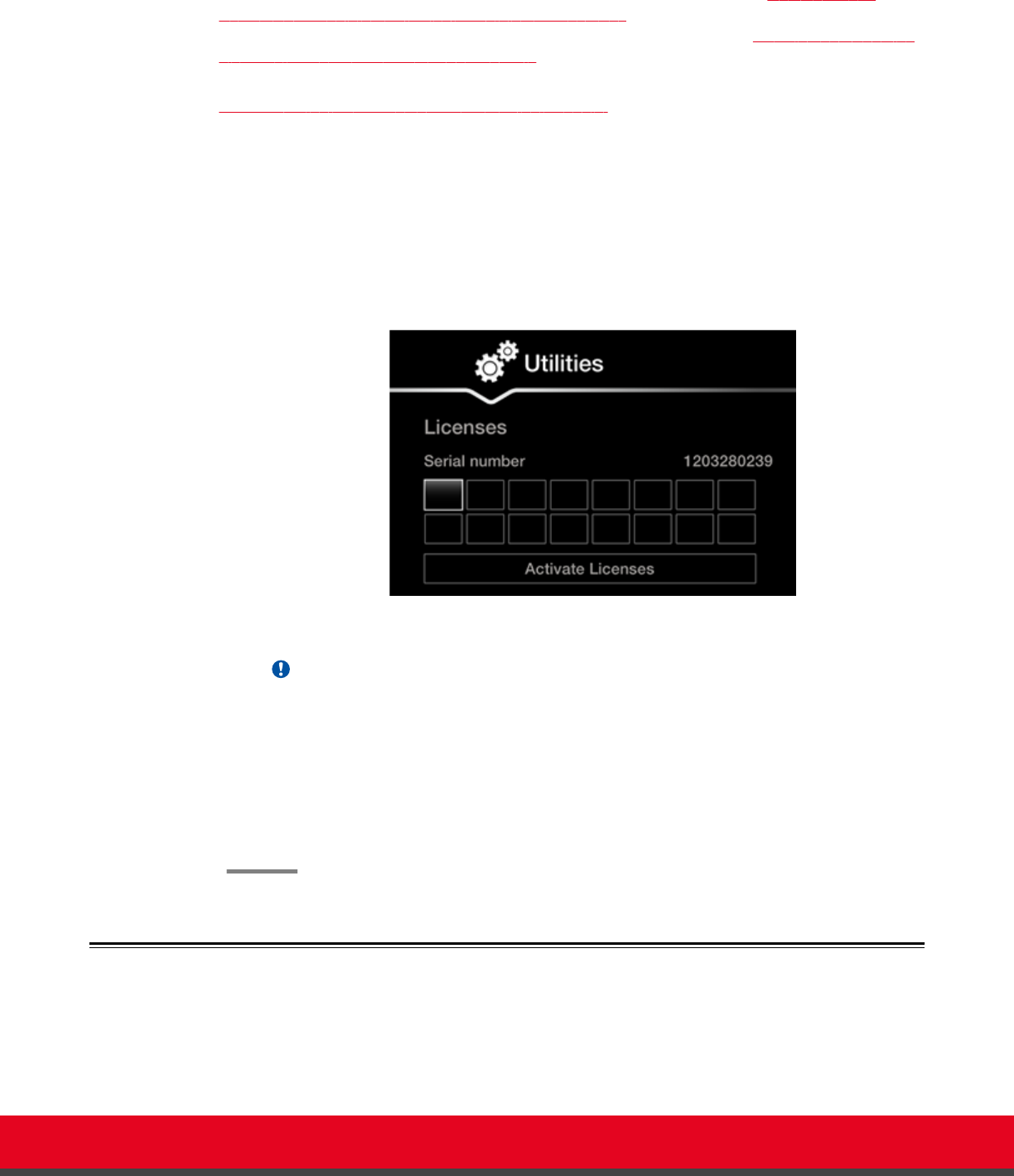

Figure 42: Activating a license
Important:
The serial number is also printed on a label affixed at the back of the XT Codec Unit.
3. Enter the license key you received when registering the product. You can also enter license
keys for optional features.
4. Select Activate Licenses.
The license is automatically enabled.
Performing Basic Configuration
Before you perform basic configuration for the XT Endpoint, your system administrator should install and
activate your XT Endpoint (for details, see the Quick Setup Guide for Scopia XT Endpoint for IP Office,
Installation Guide for Scopia XT5000 Endpoint with Embedded
Server for IP Office Version 3.2
Initial Configuration | 74
