Chapter 1 | About the Scopia XT Endpoint
for IP Office
The Scopia XT Endpoint for IP Office incorporates state-of-the-art video technology for high definition (HD)
conferencing, allowing you to locally host videoconferences with the built-in MCU. Videoconferences can include a
variety of different endpoints: H.323, SIP, Scopia XT Desktop clients and Scopia Mobile clients (with the Scopia XT
Desktop Server), and ISDN endpoints (via Scopia 100 Gateway).
Avaya IP Office connects to the Scopia XT Endpoint for IP Office as a SIP server, allowing to host videoconferences
and add Avaya endpoints to videoconferences. Figure 1: A typical Scopia XT Endpoint for IP Office deployment on
page 7 shows a typical deployment integrating Scopia XT Endpoint for IP Office with Avaya IP Office.
You can use the Scopia XT Endpoint for IP Office as an MCU only, or as an endpoint by connecting a monitor,
camera, and microphone.

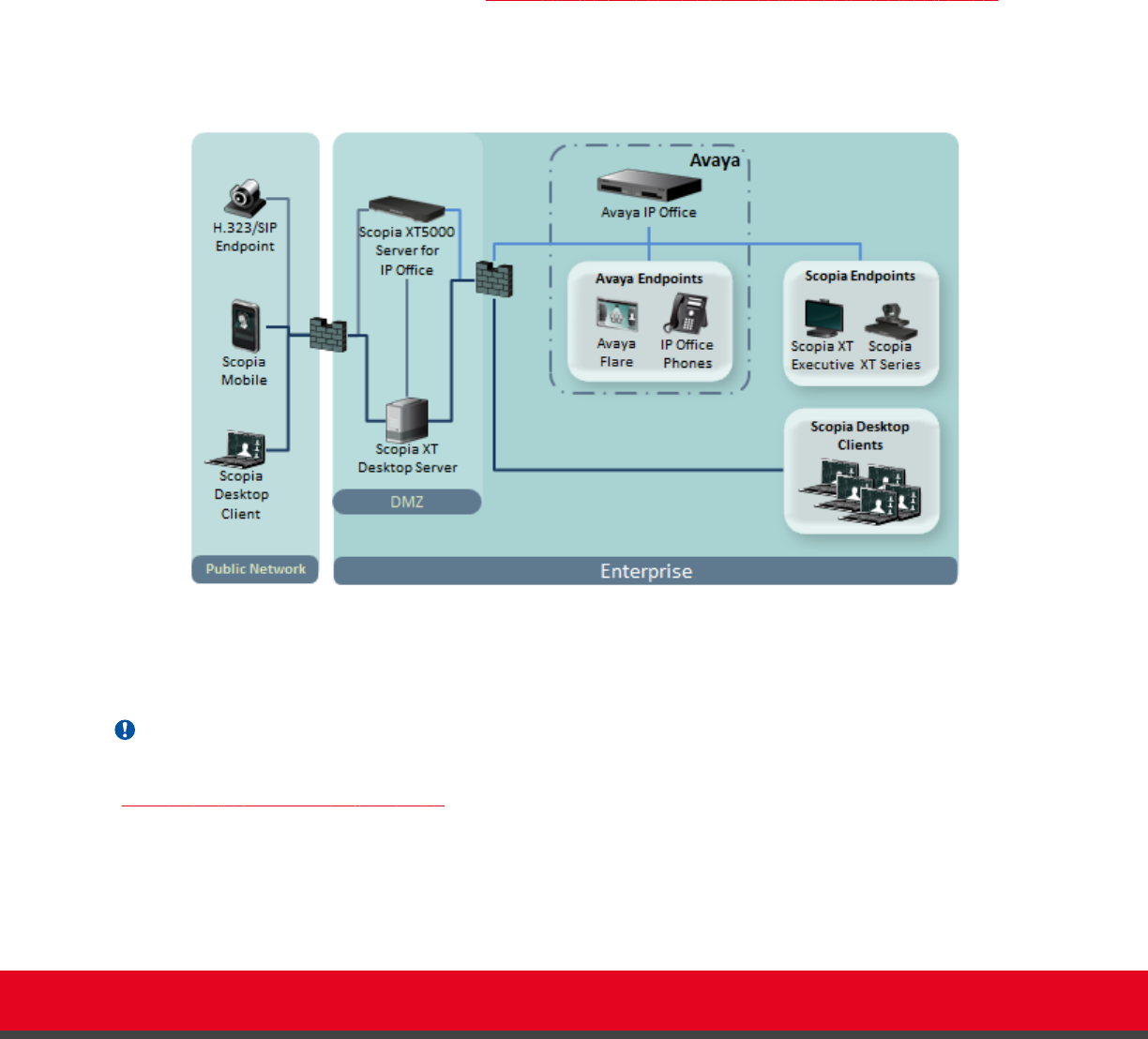

Figure 1: A typical Scopia XT Endpoint for IP Office deployment
This section provides an overview of the general features and capabilities available in the Scopia XT Endpoint for IP
Office:
Important:
If you do not register to IP Office, you cannot host videoconferences or use the full functionality of the system. See
Registering the XT Endpoint to IP Office on page 82 for details.
•
Ability to host videoconferences locally with a high-capacity embedded MCU, without requiring an external
MCU deployment.
•
Excellent video quality, with resolutions of 720p, and up to 1080p at an unprecedented 60 frames per second
(fps), depending on the license.
