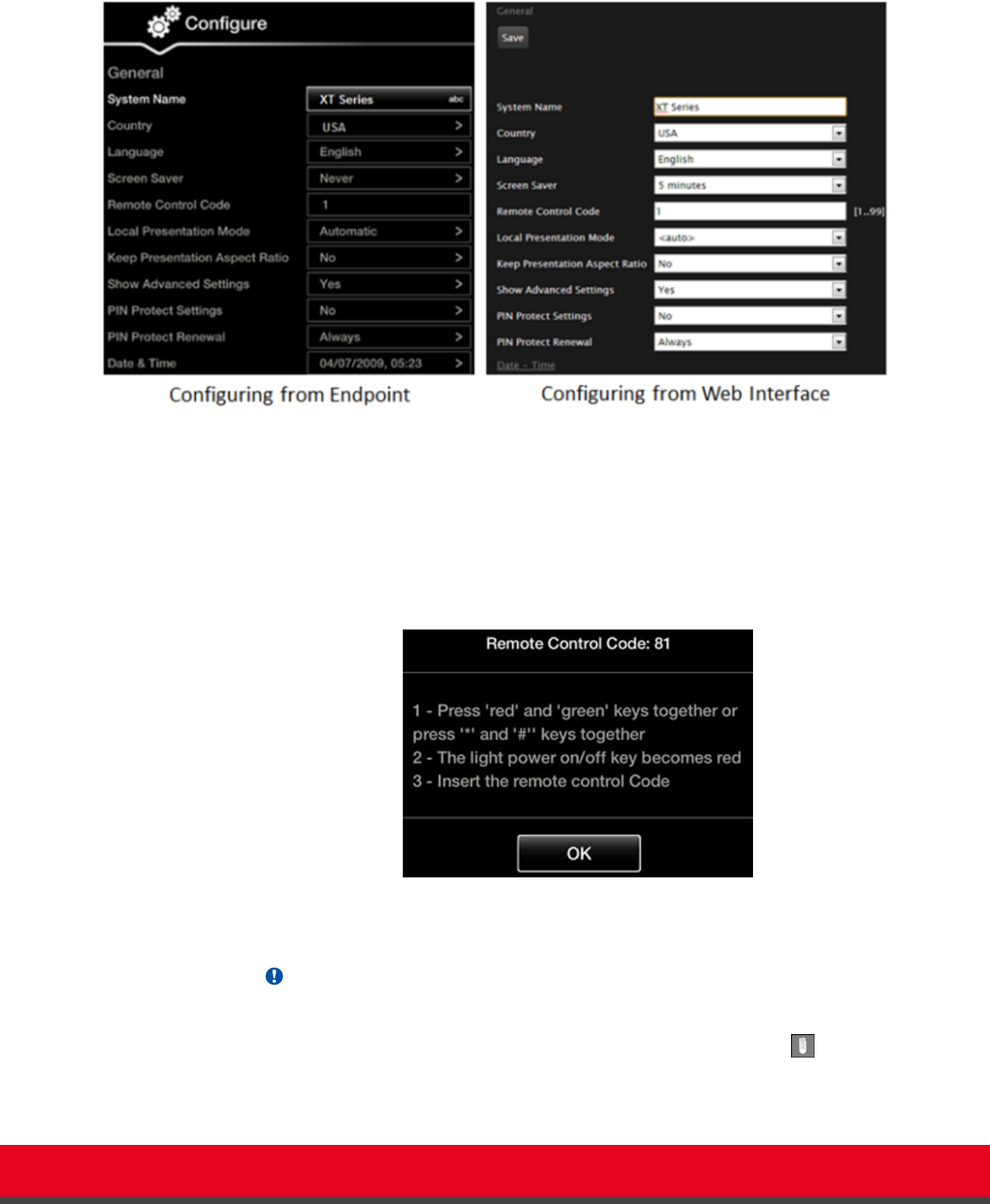

Figure 37: Setting the XT Remote Control Unit Code
2. Enter the numeric code in the Remote control code field. You can choose any value
between 1-99.
3. From the web interface only, select Save.
4. On the XT Remote Control Unit, press the * and # keys simultaneously until the red led blinks
twice.
Figure 38: Setting the code on the XT Remote Control Unit
5. Using the keypad, type the number you just entered in the Remote control code field.
Important:
You must always use two digits for a code. For example, to set the code to “1”, enter “01”.
The code of the XT Remote Control Unit is changed and the Remote Control icon with
the new Remote Control code appear at the top-right corner of the screen:
Installation Guide for Scopia XT5000 Endpoint with Embedded
Server for IP Office Version 3.2
Initial Configuration | 65
