Radvision has tested and certified these two video converters from Gefen:
•
GTV-COMPSVID-2-HDMIS, Composite/S-Video to HDMI Scaler
•
GTV-HDMI-2-COMPSVIDS, HDMI to Composite/S-Video Scaler
See the company’s site for documentation.
Procedure
Connect the analog camera to either the HD CAM or DVI ports, using the Composite/S-Video
to HDMI Scaler:

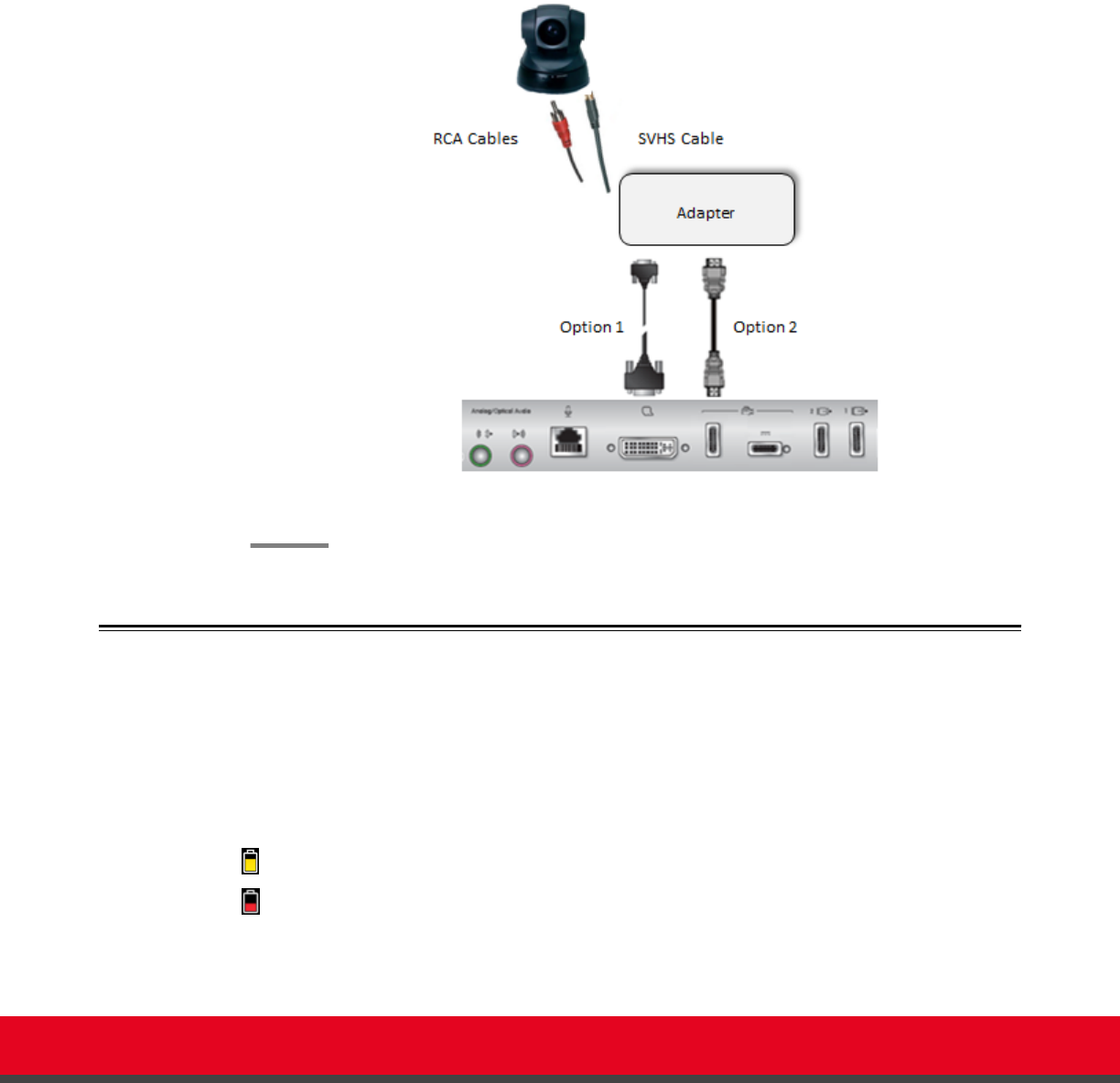

Figure 31: Connecting an Analog Camera
Installing the Batteries of the XT Remote Control Unit
About this task
The XT Remote Control Unit requires CR2025 Lithium batteries (3V). When the XT Remote Control
Unit's battery power is low, an icon appears on the GUI letting you know that you should replace the
battery:
•
Half-charged Battery
•
Low Battery
