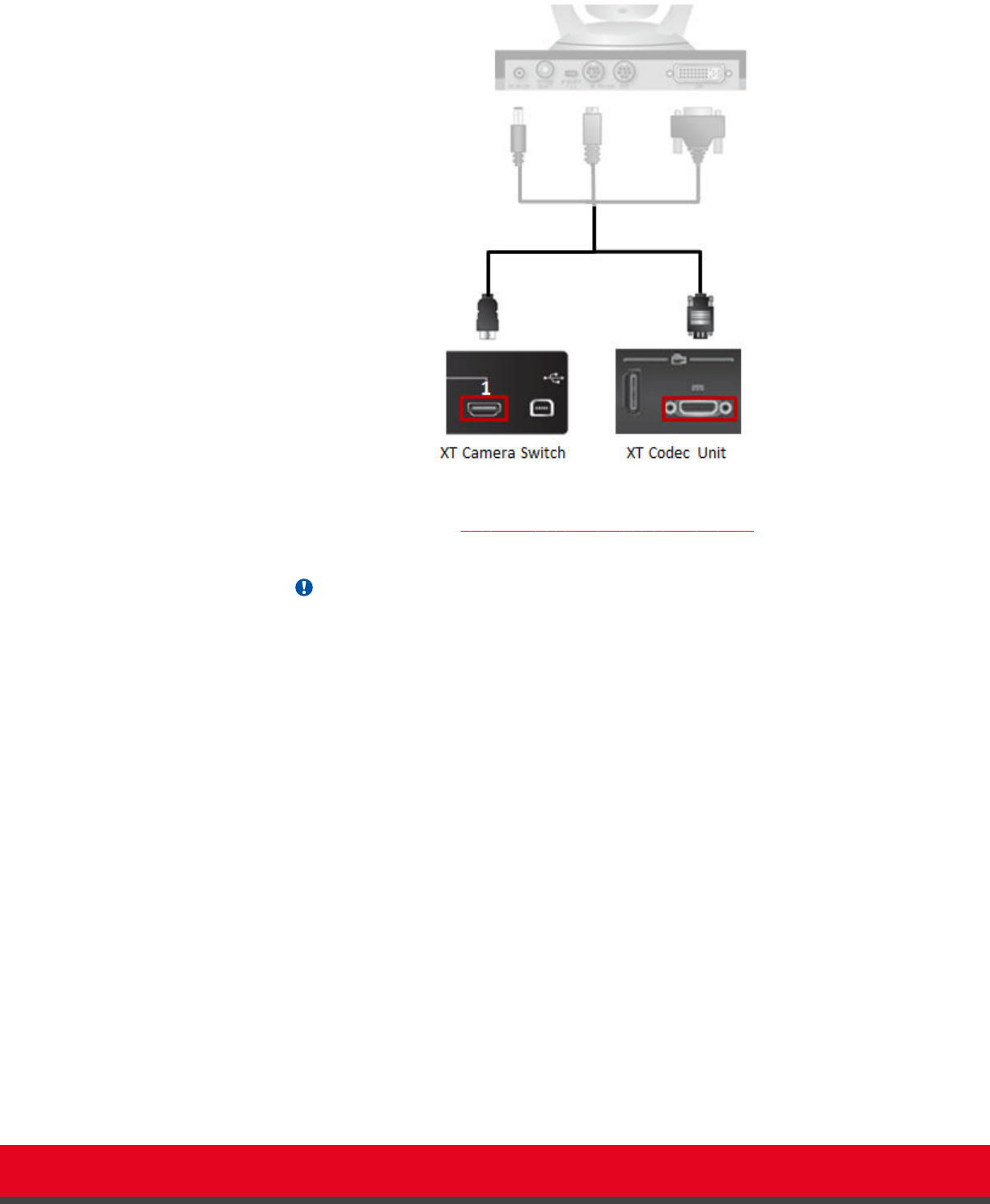

Figure 27: Connecting cables to the Scopia XT Camera Switch
5. Connect the second camera (Figure 28: Connecting the second camera on page 50):
a. Connect the 10-meter VISCA Control cable supplied with the camera kit.
Important:
If you’re planning to position the optional camera further away from the XT Codec
Unit, you can create a cable of up to 15 meters (50 feet) by attaching each end of the
VISCA Cross cable to an 8-pin mini-DIN male connector.
