Caution:
Always remove the camera stabilizing cartons before connecting the camera.
Caution:
Do not place the camera on top of the XT Codec Unit. It can cause the system to overheat.
2. Connect the camera to the DVI Input connector on the XT Codec Unit:

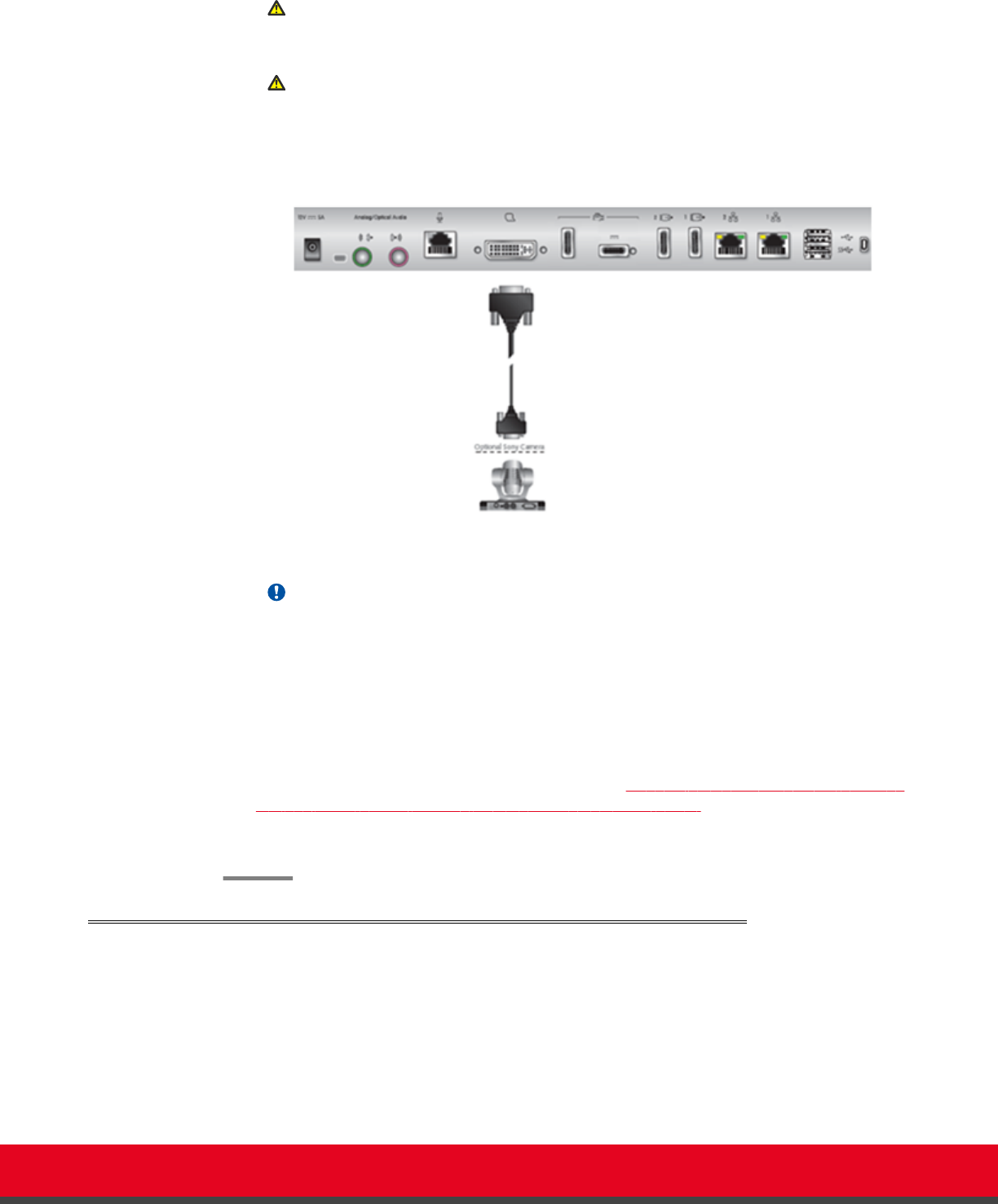

Figure 22: Connecting the optional XT Premium Camera for XT1200
Important:
If you connect a camera to the DVI-I input, the system manages it as PC content.
3. Connect the power supply cable to the DC IN connector on the camera.
4. Plug the power supply cable into one of the power sockets on the wall.
5. To enable controlling the camera using the XT Remote Control Unit, connect a crossed
VISCA control cable to the RS-232C IN connector on the camera and to the RS-232C OUT
connector on the main camera. For instructions, see Connecting Cameras for Controlling the
Optional XT Premium Camera with the XT Remote Control Unit on page 44.
6. Apply power to the camera.
Connecting Cameras for Controlling the Optional XT Premium
Camera with the XT Remote Control Unit
About this task
The optional camera is supported for selected models only.
