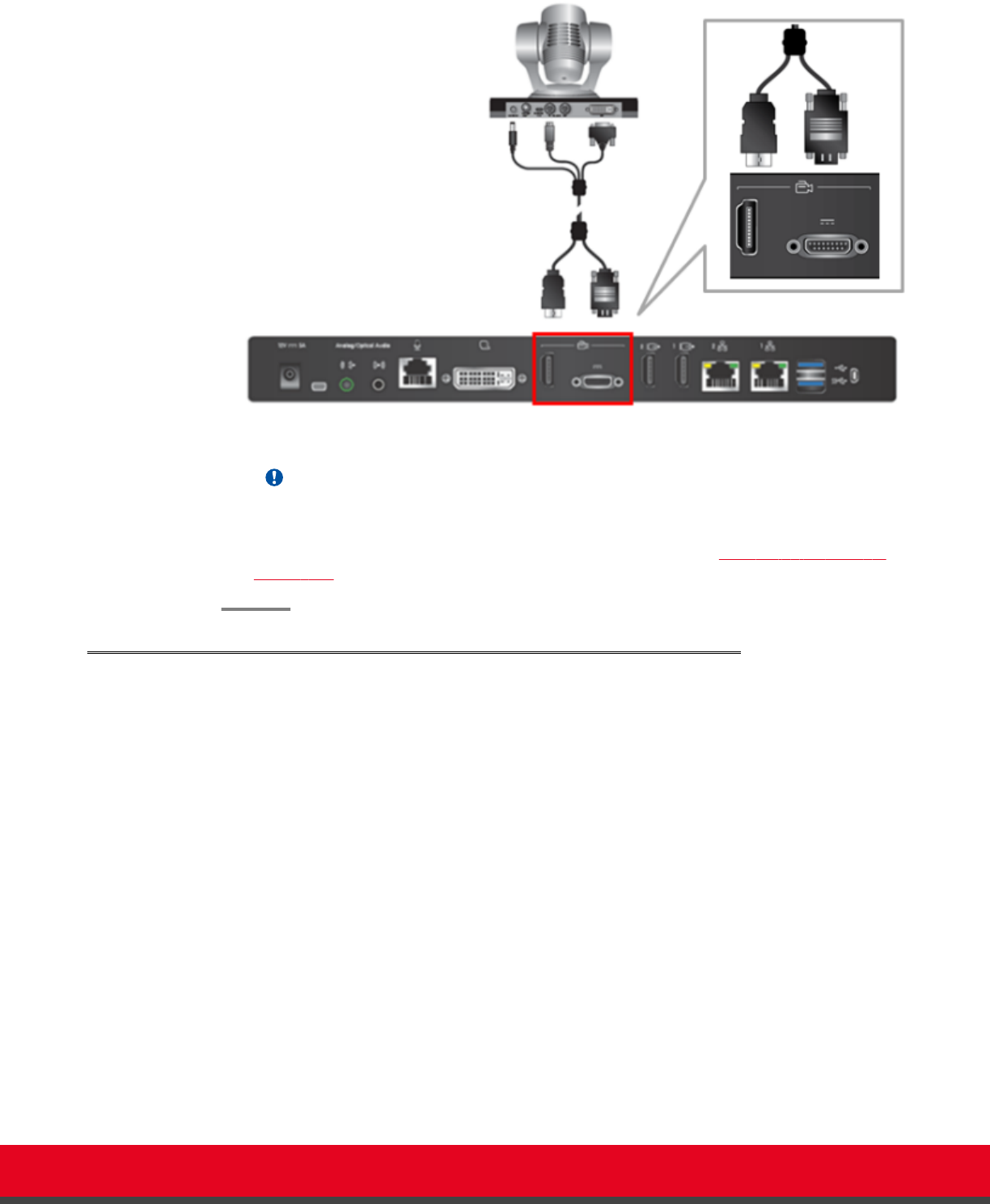

Figure 20: Connecting the cables to the XT Codec Unit
Important:
If you connect a camera to the DVI-I input, the system manages it as PC content.
6. Enable the HD1 camera and configure its settings, as described in Configuring the Camera
Connection on page 95.
Connecting the Optional USB Camera
About this task
You can connect the optional USB camera to the XT Codec Unit. Currently, the USB camera certified to
work with the system is the Logitech C290 Webcam.
We recommend placing the camera and adjusting the zoom so that the frame is filled with the head and
upper body of the user.
Procedure
1. Connect the USB cable attached to the camera to the upper USB port on the XT Codec Unit:
