Caution:
Failure to remove the camera stabilizing cartons before connecting the camera can cause
damage to the system.
3. Insert these connectors on the camera cable to the ports on the back of the camera, as
shown in Figure 18: Connecting cables to the back of the camera on page 41:
The DVI connector to the DVI socket
The 8-pin connector to the IN (RS232C) socket
The power connector to the DC IN 12V socket

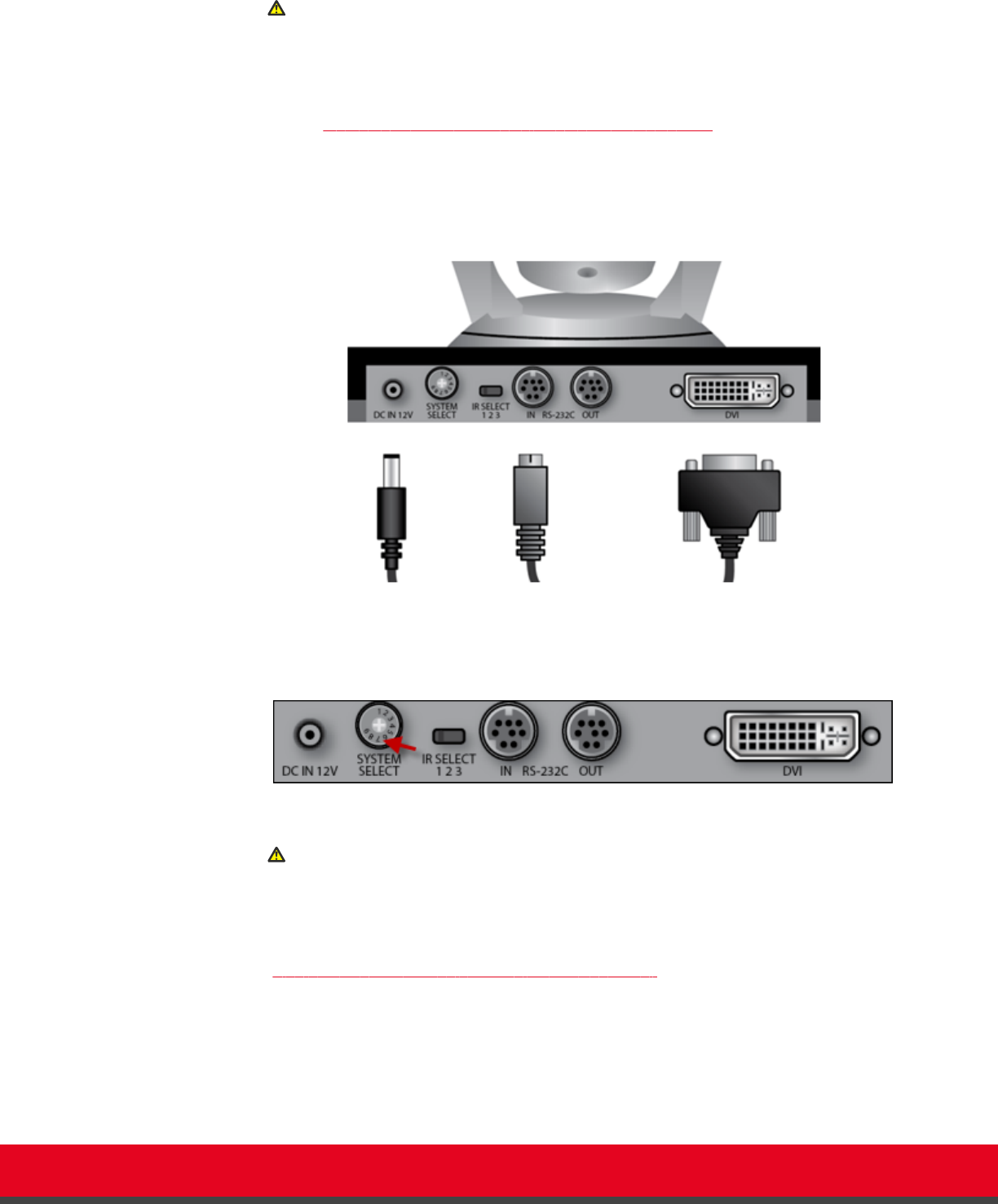

Figure 18: Connecting cables to the back of the camera
4. Check that the System Select switch on back panel of the camera is set to 7:
Figure 19: Checking the System Select switch
Caution:
To adjust the switch, you must first turn the camera off. Adjust it using a slotted 2.5 mm
screwdriver.
5. Insert the two connectors on the camera cable to the ports on the XT Codec Unit, as shown
in
Figure 20: Connecting the cables to the XT Codec Unit on page 42:
The HDMI connector to the vertical socket
The power connector to the horizontal socket
