Connecting an Analog Sound System
About this task
If the room size requires stronger audio output, you can connect analog audio equipment (for example,
an external amplifier) to the analog connector of the XT Codec Unit. This procedure specifically
describes how to connect an external amplifier.
For more information about typical audio configurations for the XT Endpoint, see Deciding on the Audio
Setup for the Scopia XT Endpoint for IP Office on page 33.
Before you begin
Verify you have a shielded stereo audio cable with a 3.5mm stereo audio plug:

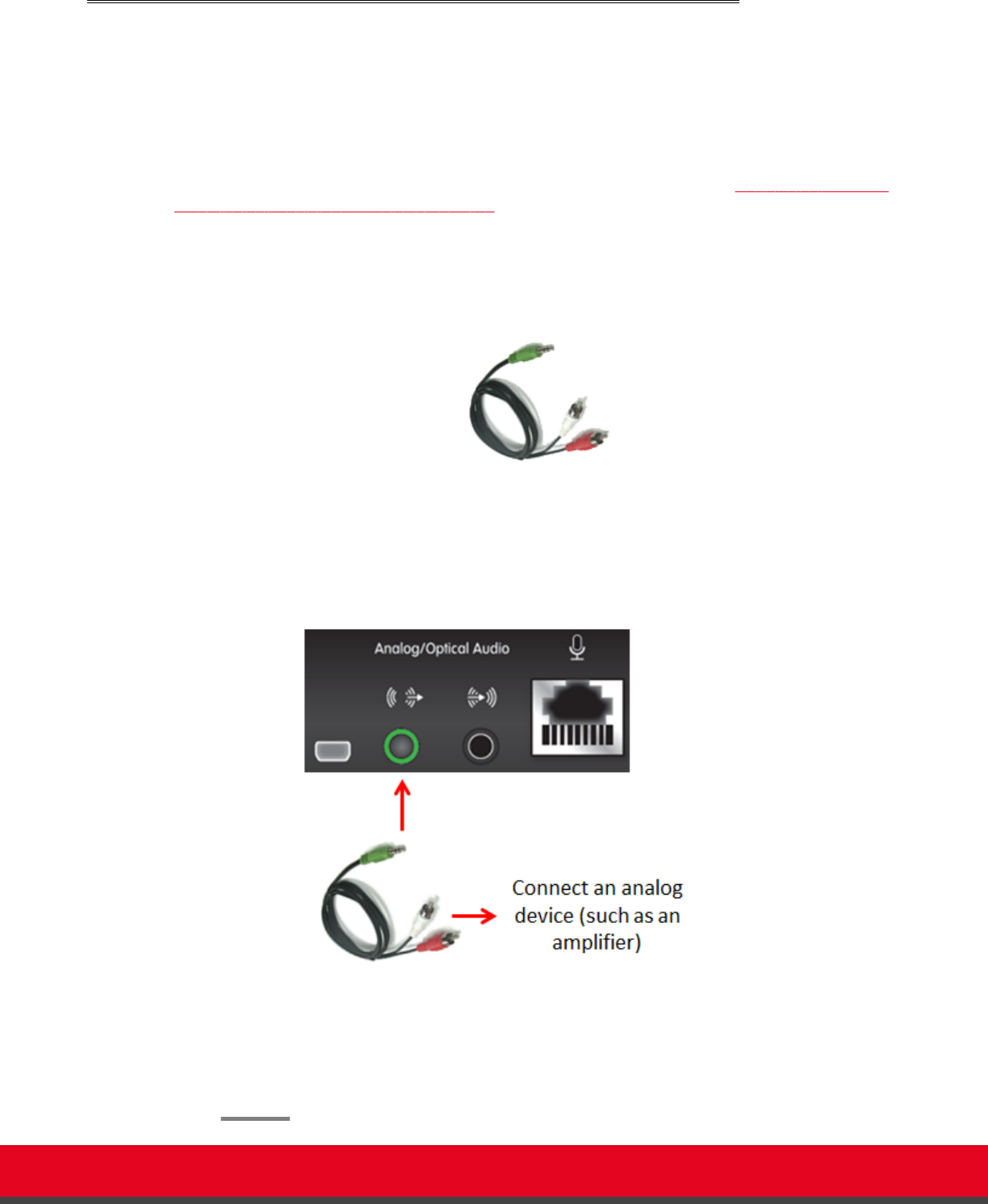

Figure 16: Stereo audio cable
Procedure
Connect the analog device to the XT Endpoint as follows:
Figure 17: Connecting an Analog Device to the Analog Connector on the XT Endpoint
a. Insert the green plug into the green analog connector of the XT Codec Unit.
b. Insert the white plug into the left audio device connector.
c. Insert the red plug into the right audio device connector.
