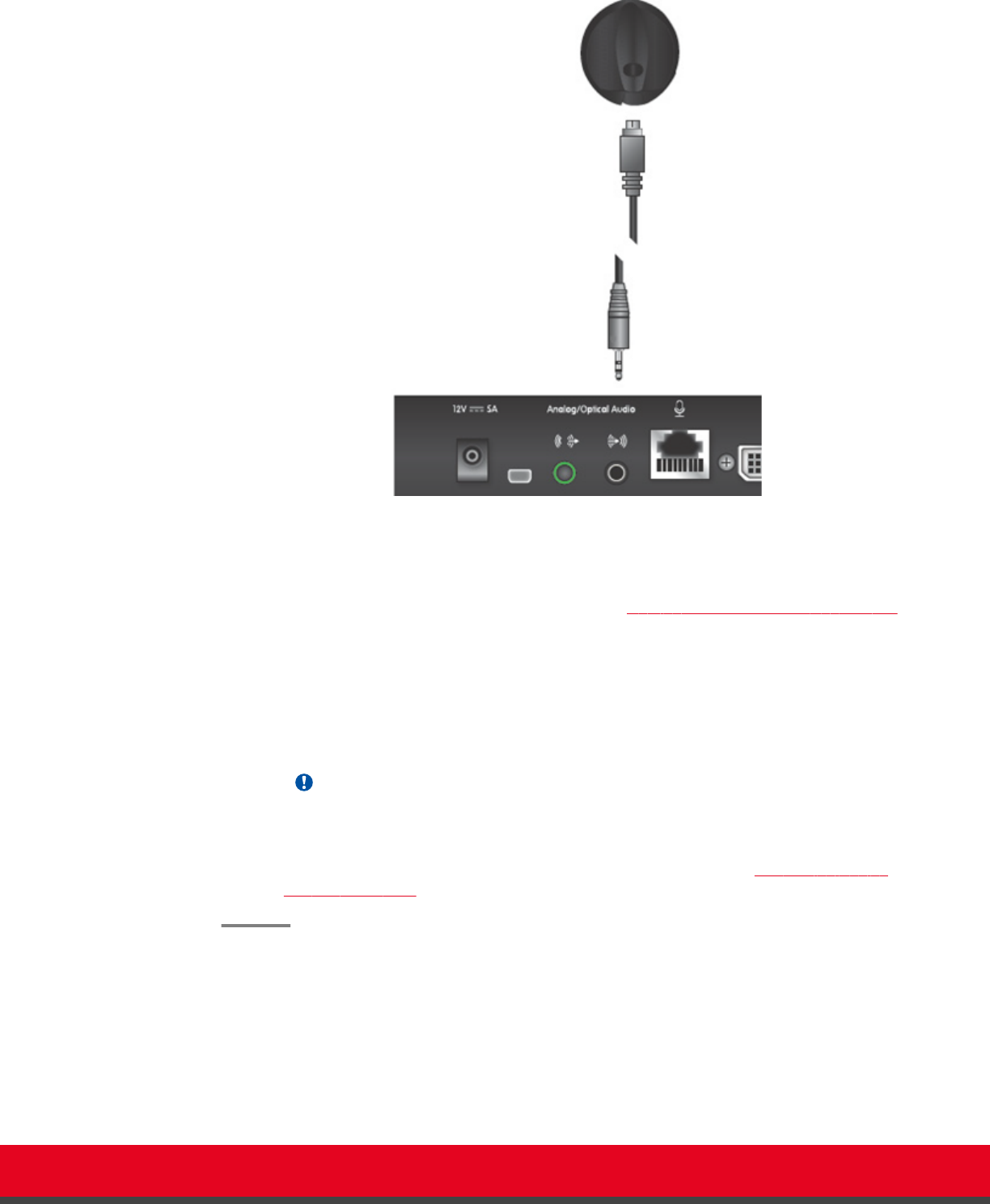

Figure 15: Connecting the one-way Microphone Pod
2. When using a microphone system other than the Microphone Pod, configure the echo
cancellation settings:
a. Enable/disable echo cancellation as described in Configuring Analog Audio Connections
on page 106:
•
For analog/optical microphone systems that do not contain echo cancellation,
enable the echo canceller.
•
For external mixers that handle echo cancellation externally, disable echo
cancellation. The echo canceller is automatically disabled when connected to a
computer.
Important:
This is not relevant for the Microphone Pod, which supports echo cancellation
automatically.
b. If you enabled echo cancellation, configure settings as described in Configuring Analog
Audio Connections on page 106.
