To connect the Microphone Pod, see Connecting the Three-Way Microphone Pod on page 35 or
Connecting the One-Way Microphone Pod and other Analog Microphones on page 36.

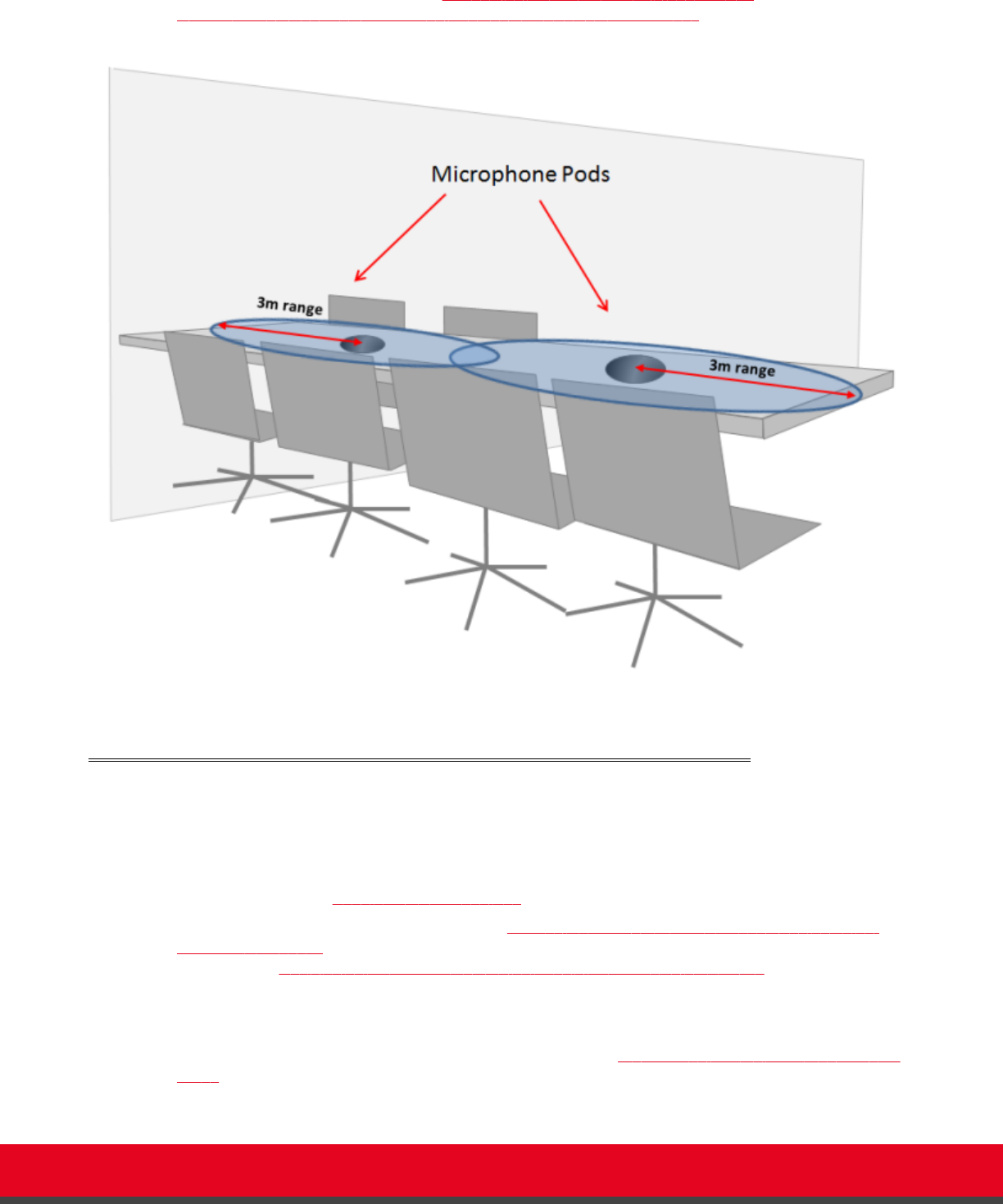

Figure 12: Microphone range of audio input
Connecting the Three-Way Microphone Pod
About this task
Connect the three-way Microphone Pod as described in this procedure. For more information about the
Microphone Pod, see About the Microphone Pod on page 34.
To connect the one-way Microphone Pod, see Connecting the One-Way Microphone Pod and other
Analog Microphones on page 36. For more information about typical audio configurations for the XT
Endpoint, see Deciding on the Audio Setup for the Scopia XT Endpoint for IP Office on page 33.
Before you begin
For optimal results, place the Microphone Pod as described in Planning the Optimal Conference Room
Setup on page 25.
