Connecting Scopia XT Endpoint for IP Office to Your
Network
About this task
Your Scopia XT Endpoint for IP Office has two GLAN 10/100/1000 ports for connecting to the network.
You can use both ports for connecting to the private and public network, however we recommend that
you always connect the private network to the second GLAN port, whether one router interfaces with the
Scopia XT Endpoint for IP Office or multiple routers interface with the Scopia XT Endpoint for IP Office
(Figure 8: Connecting the XT Codec Unit to a private and a public network on page 29).

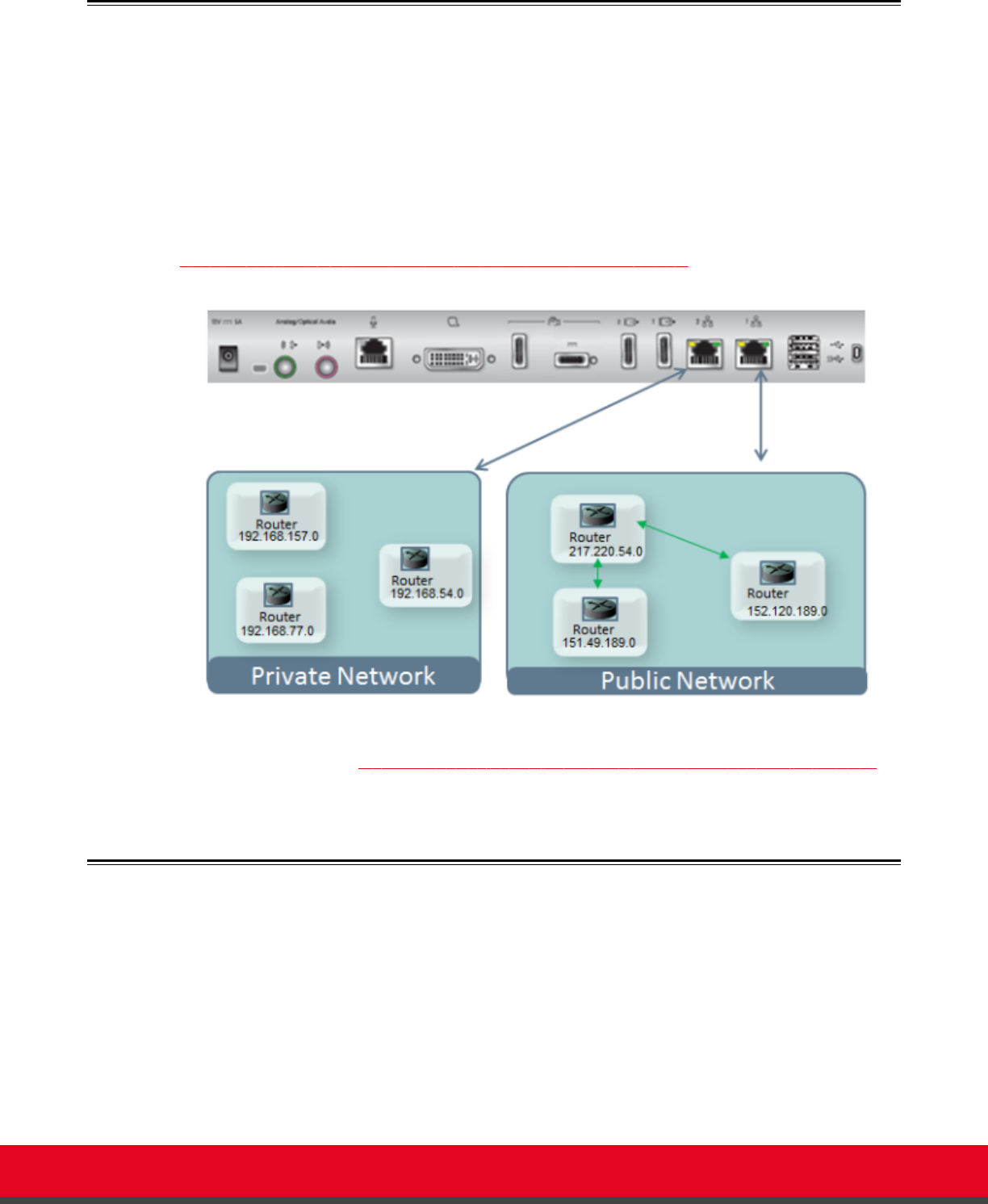

Figure 8: Connecting the XT Codec Unit to a private and a public network
For more information, see Planning NAT and Firewall Traversal with Scopia XT Endpoint for IP Office on
page 16.
Connecting a Computer to the Scopia XT Endpoint for IP
Office
About this task
Use a computer to share a presentation or other PC content during a call. This procedure describes how
to connect computers that are equipped with a DVI-out or VGA-out connector.
