With the gateway approach less communication lines are needed. As all gateways do not connect at the
same time and not all calls are ISDN, many more endpoints can share the same ISDN connection and
gateway.
Before you begin
Enable Peer-to-Peer mode in the Scopia Gateway for ISDN. For more information, see the Scopia
Gateway documentation.
Procedure
1. Access the XT Endpoint web interface, as described in Accessing XT Endpoint Web
Interface on page 55.
2. Select Administrator Settings > Protocols > ISDN.
3. Configure the IDSN settings as described below:

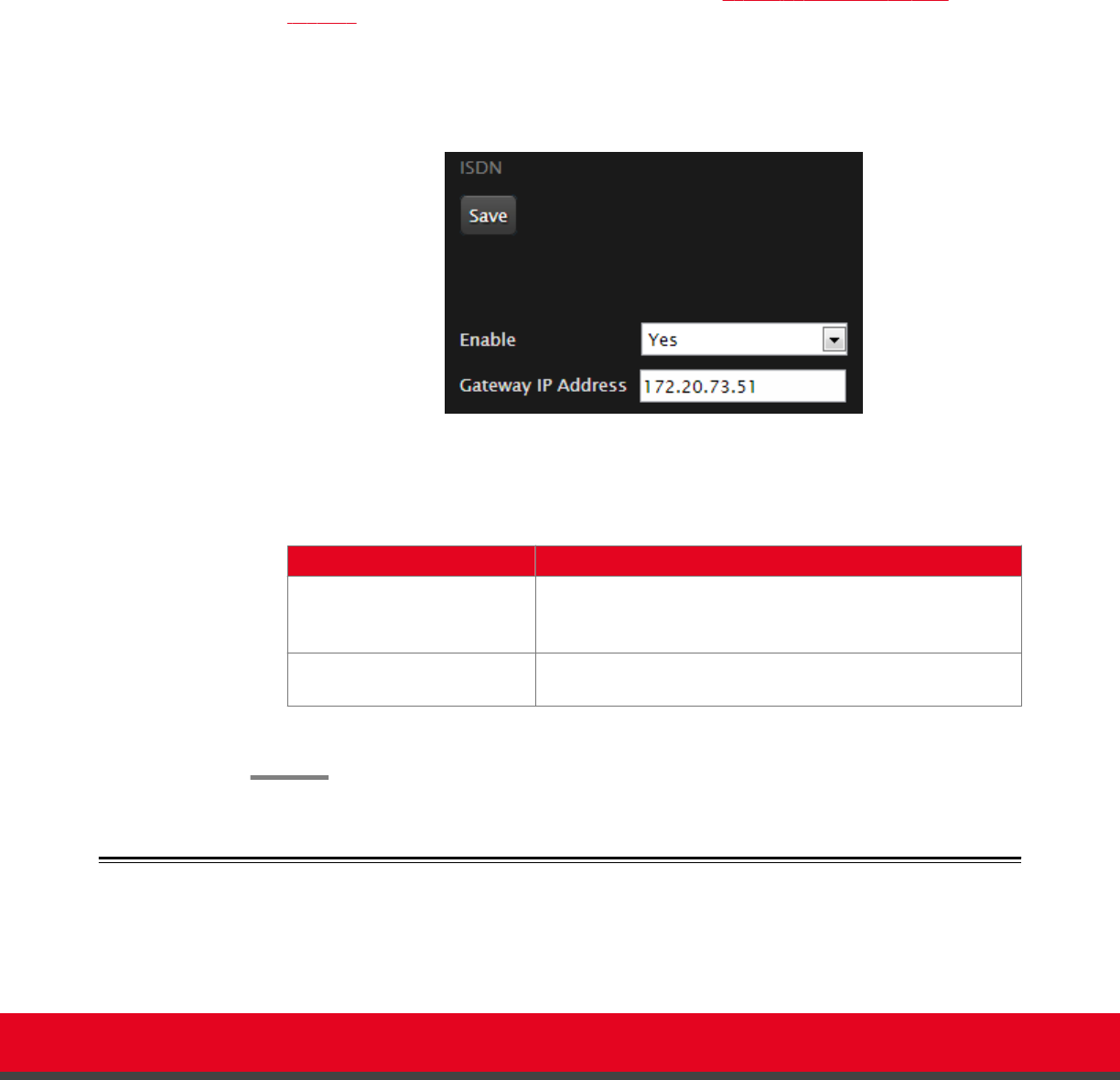

Figure 5: Enabling ISDN connectivity
Table 5: Supporting ISDN Connectivity
Field Description
Enable Select Yes to allow this Scopia XT Endpoint for IP Office to
quickly dial ISDN endpoints via the Scopia Gateway for
ISDN.
Gateway IP Address Enter the IP address of the Scopia Gateway for ISDN used
by your organization.
4. Select Save.
Implementing External API Control
You can control the XT Codec Unit using the Scopia XT Endpoint for IP Office API (requires integration
with AMX, Creston, or Extron control devices). Contact Radvision customer support to receive the
Installation Guide for Scopia XT5000 Endpoint with Embedded
Server for IP Office Version 3.2
Planning the Topology of the Scopia XT Endpoint for IP Office
Deployment | 19
