4. Select Next.
5. Select Done.
Problem
The system does not make calls due to a network error.
Possible Causes
The network is based on IPv6 and the endpoint is configured to support only IPv4.
Solution
Enable the endpoint to support IPv6.
If configuring from the endpoint, you must first enable advanced configuration, as described
in Maintaining the XT Endpoint Locally from the Endpoint on page 66.
1. Access the general network settings, as follows:
•
From the XT Endpoint web interface, select Administrator settings > Networks >
Preferences > General.
•
From the endpoint's main menu, select Configure > Advanced > Networks >
Preferences > General.

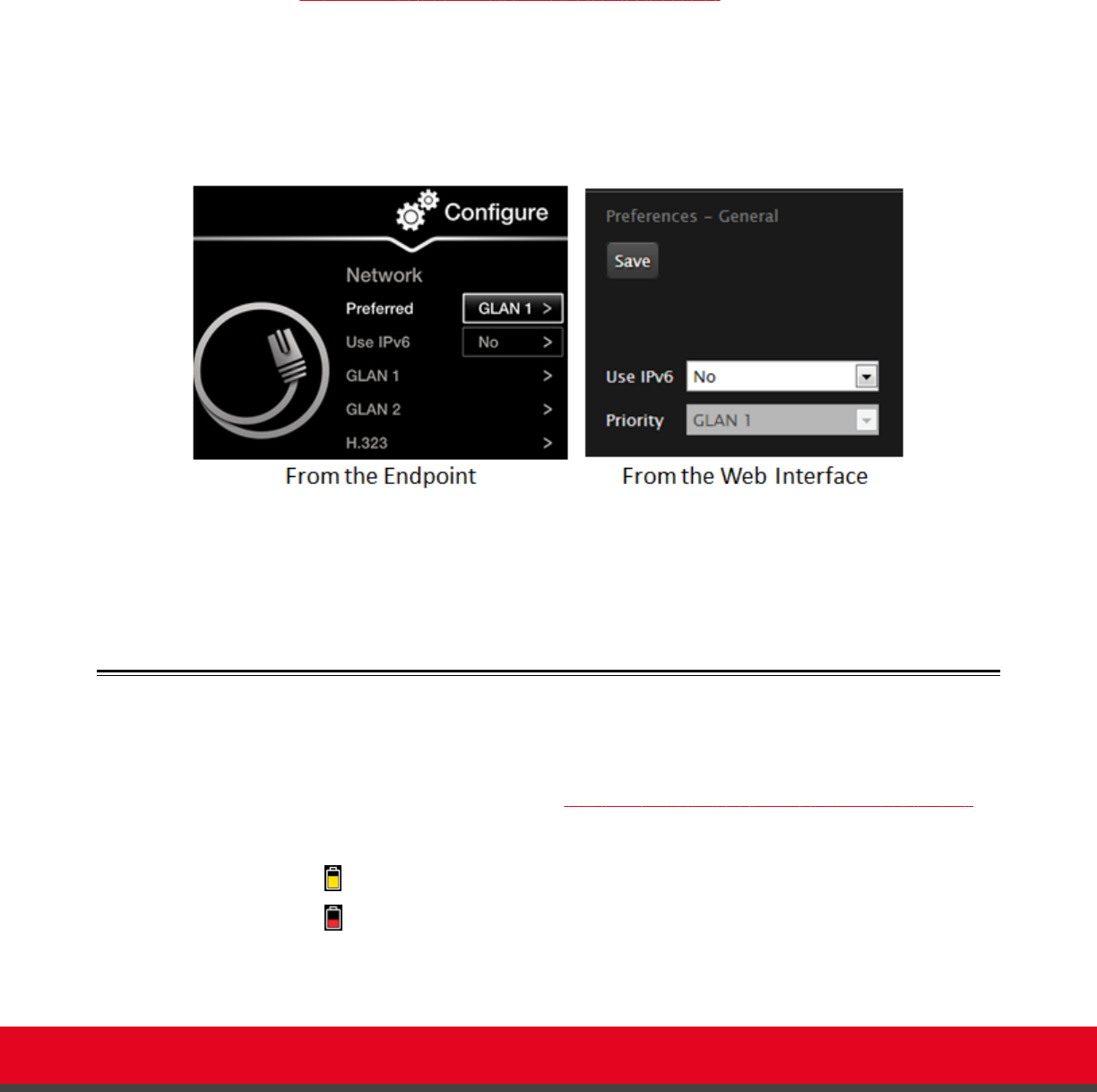

Figure 101: Setting network preferences
2. Set the Use IPv6 field to Yes.
3. From the web interface only, select Save.
Resolving XT Remote Control Unit Problems
Problem
The XT Remote Control Unit does not function.
Solution
Replace the battery, as described in
Installing the Batteries of the XT Remote Control Unit on
page 52. When the XT Remote Control Unit's battery power is low, an icon appears in the
system menus letting you know that you should replace the battery:
•
Half-charged Battery
•
Low Battery
