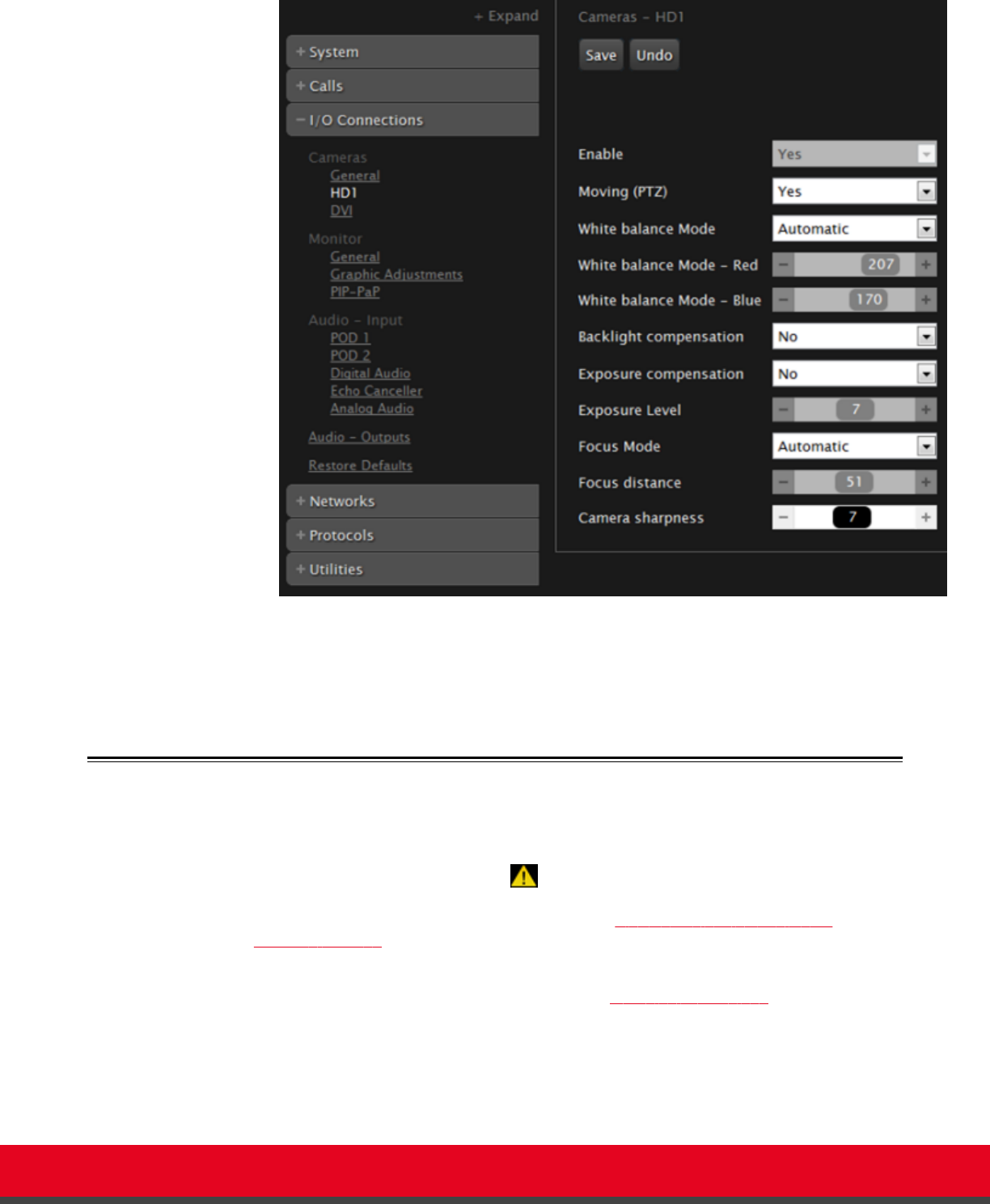

Figure 98: Enabling the Moving setting
2. Make sure that the Moving field is set to Yes.
3. From the web interface only, select Save.
Resolving IP Address Problems
Problem
Cannot configure the IP address.
Possible Causes
If the icon for no network connection appears and the system displays 0.0.0.0 as its
assigned IP address, the system is not connected to network or has an invalid IP address
(for details on viewing the system's IP address, see Viewing System Information for
Customer Support on page 143).
Solution
Make sure the GLAN cable is connected properly at both ends: to the network socket and to
the GLAN1 port of the XT Codec Unit, as shown in Figure 99: GLAN1 port on page 154.
