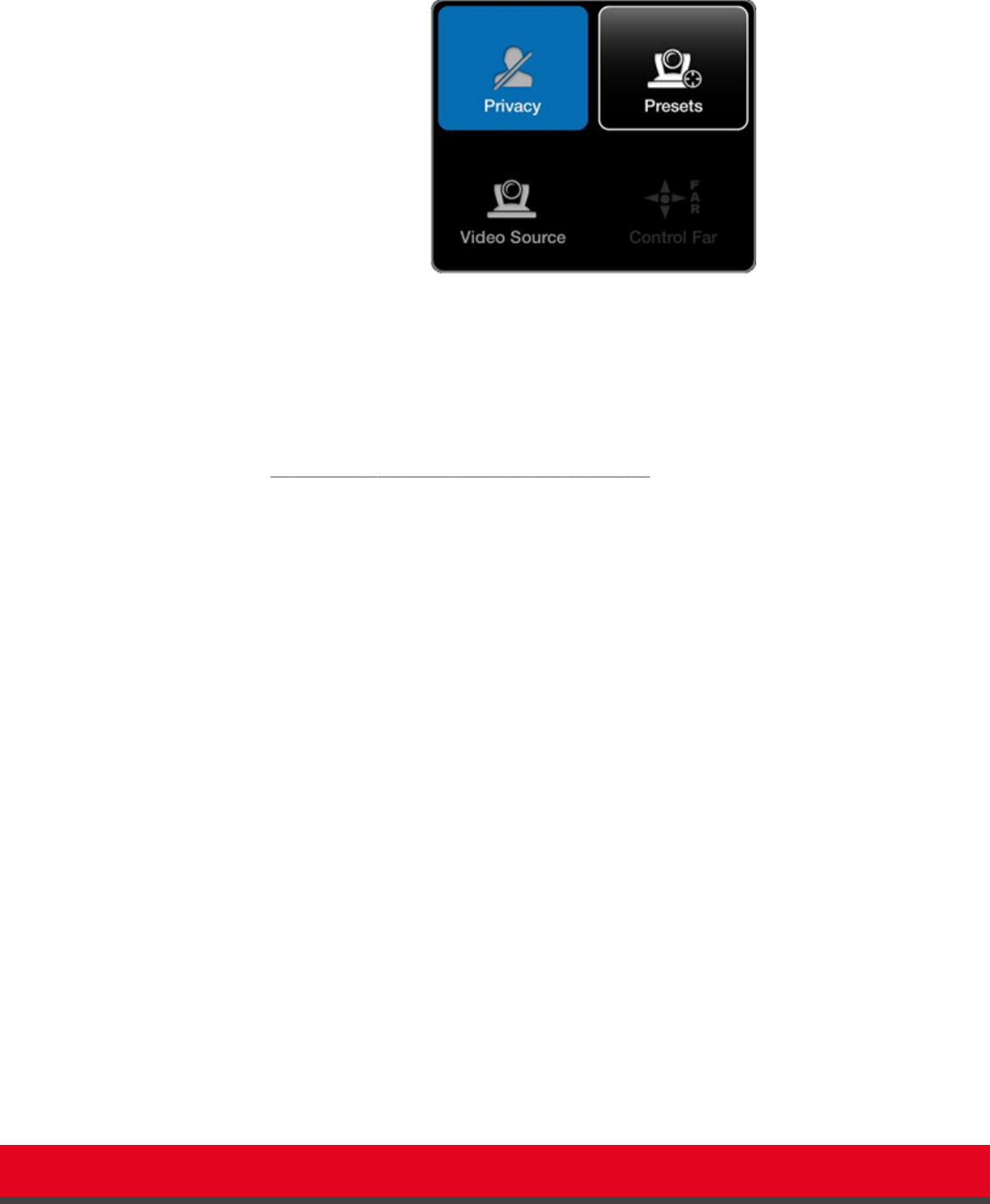

Figure 97: Selecting a video source
3. Select Video Source.
Solution
Ensure the camera is correctly connected to the system. For details, see the Installation
Guide for the Scopia XT Endpoint for IP Office.
Solution
Make sure the Moving setting is enabled.
If configuring from the endpoint, you must first enable advanced configuration, as described
in Maintaining the XT Endpoint Locally from the Endpoint on page 66.
1. Access the general camera settings by doing one of the following:
•
From the endpoint's main menu, select Configure > Advanced > I/O connections
> Cameras > HD1 from the Main menu.
•
From the XT Endpoint web interface, select Administrator Settings > I/O
connections > Cameras > HD1.
