Procedure
1. Access the echo cancellation settings, as follows:
•
From the Scopia XT Endpoint for IP Office web interface, select Administrator
Settings > I/O connections > Audio-Inputs > Echo canceller.
•
From the endpoint's Main menu, select Configure > Advanced > I/O connections >
Audio-Inputs > Echo canceller.

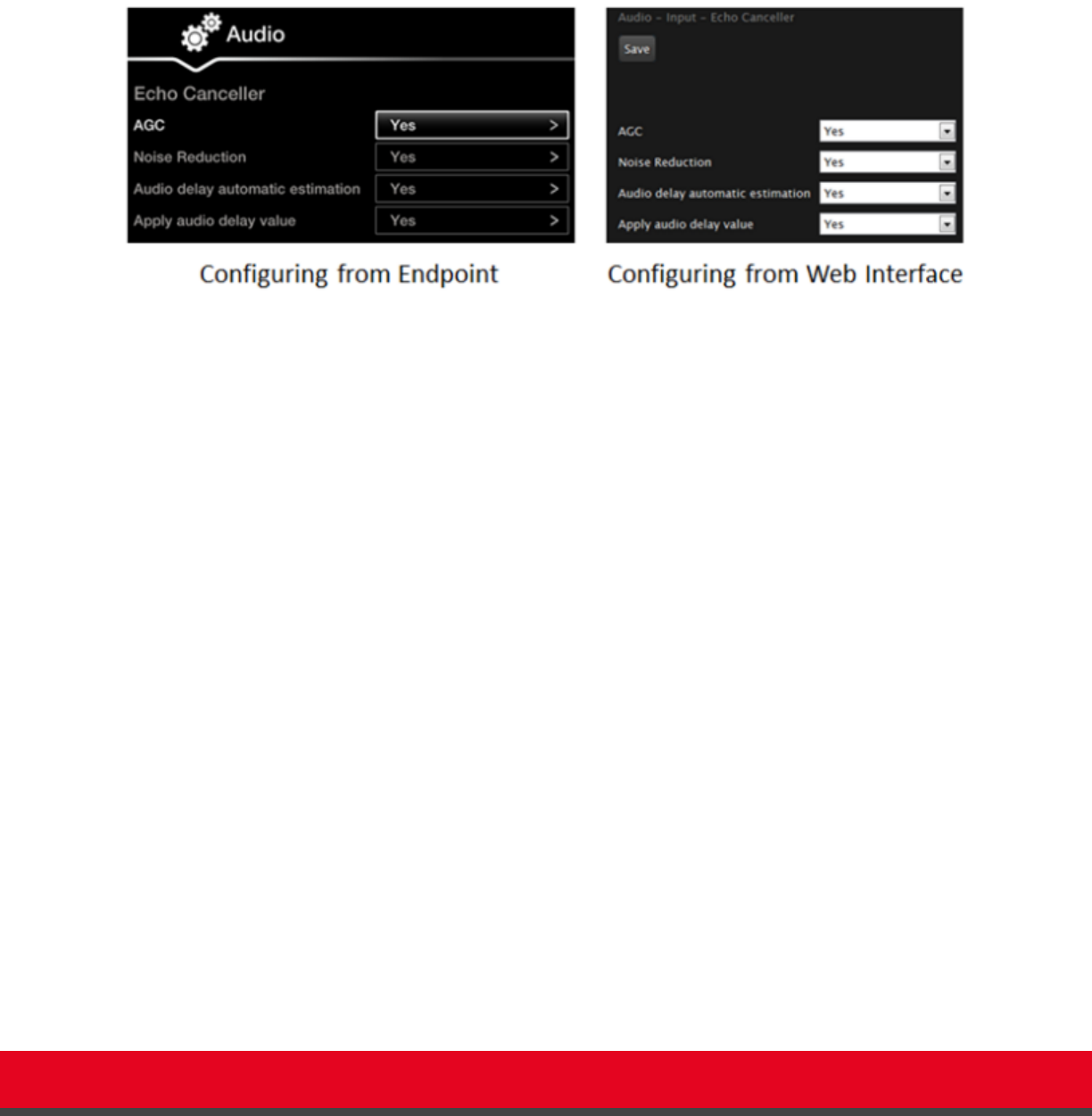

Figure 94: Configuring echo cancellation settings
2. Set the Audio delay automatic estimation field to Yes.
This enables the endpoint to constantly measure the audio delay.
3. Set the Apply audio delay value field to Yes.
This enables the system to fix problems with the audio delay.
4. From the web interface only, select Save.
5. If necessary to further fine tune audio delay, perform these steps:
a. Navigate to Audio tests as follows:
•
From the endpoint's Main menu, select Configure > System Status >
Diagnostics > Audio > Tests.
•
From the web interface, select Diagnostics > Audio > Tests.
