Before you begin
If configuring from the endpoint, you must first enable advanced configuration, as described in
Maintaining the XT Endpoint Locally from the Endpoint on page 66.
Procedure
1. Access the LDAP settings, as follows:
•
From the endpoint's main menu, select Configure > Advanced > System > LDAP.
•
From the XT Endpoint web interface, select Administrator Settings > System >
LDAP.

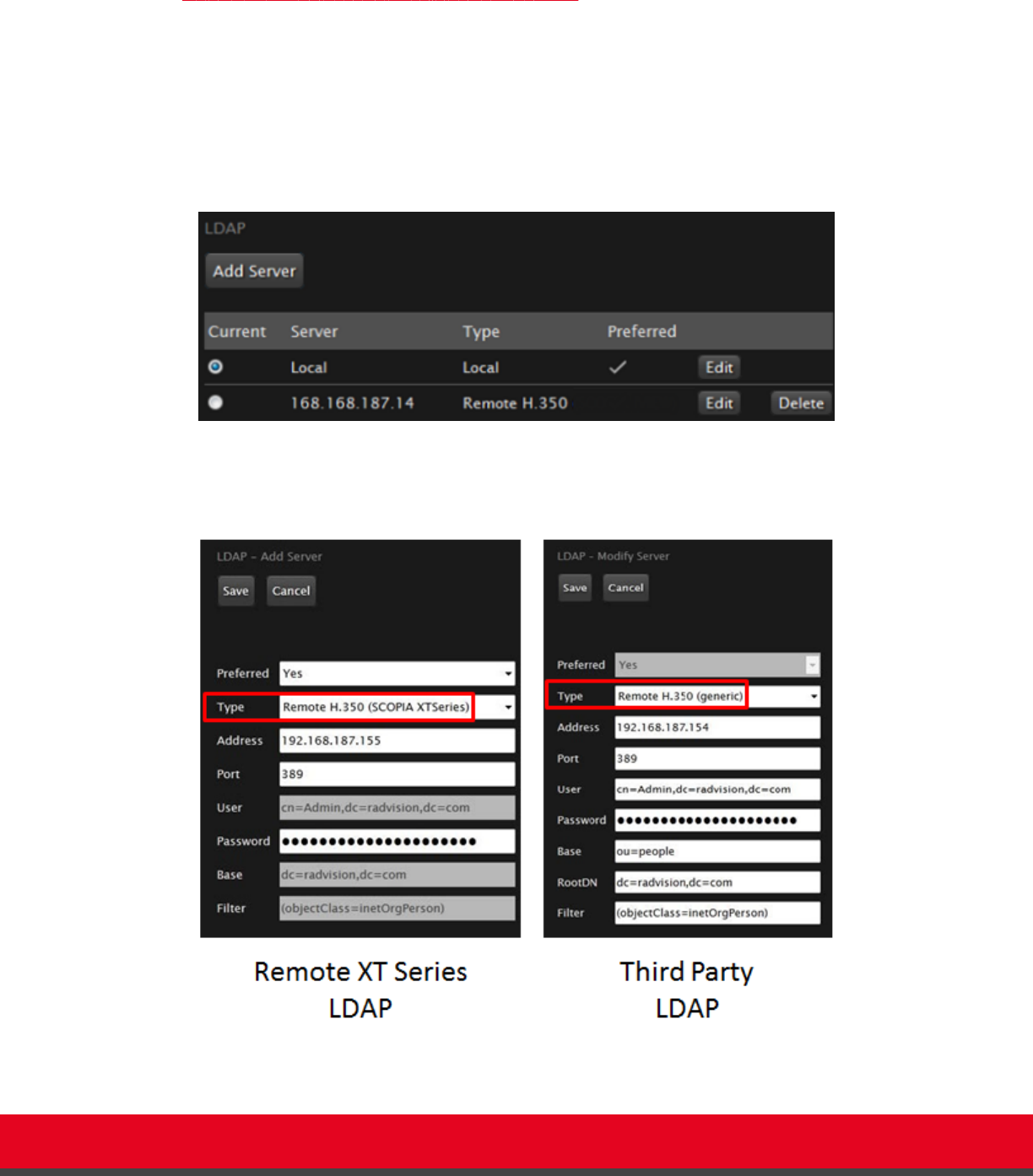

Figure 77: Configuring LDAP settings from the web interface
2. Select Add Server.
Figure 78: Adding each type of LDAP server from the web interface
