Before you begin
If configuring from the endpoint, you must first enable advanced configuration, as described in
Maintaining the XT Endpoint Locally from the Endpoint on page 66.
Procedure
1. Access the network priority settings as follows:
•
From the XT Endpoint web interface, select Administrator Settings > Networks >
Preferences > General.
•
From the endpoint's main menu, select Configure > Advanced > Networks >
Preferences > General.

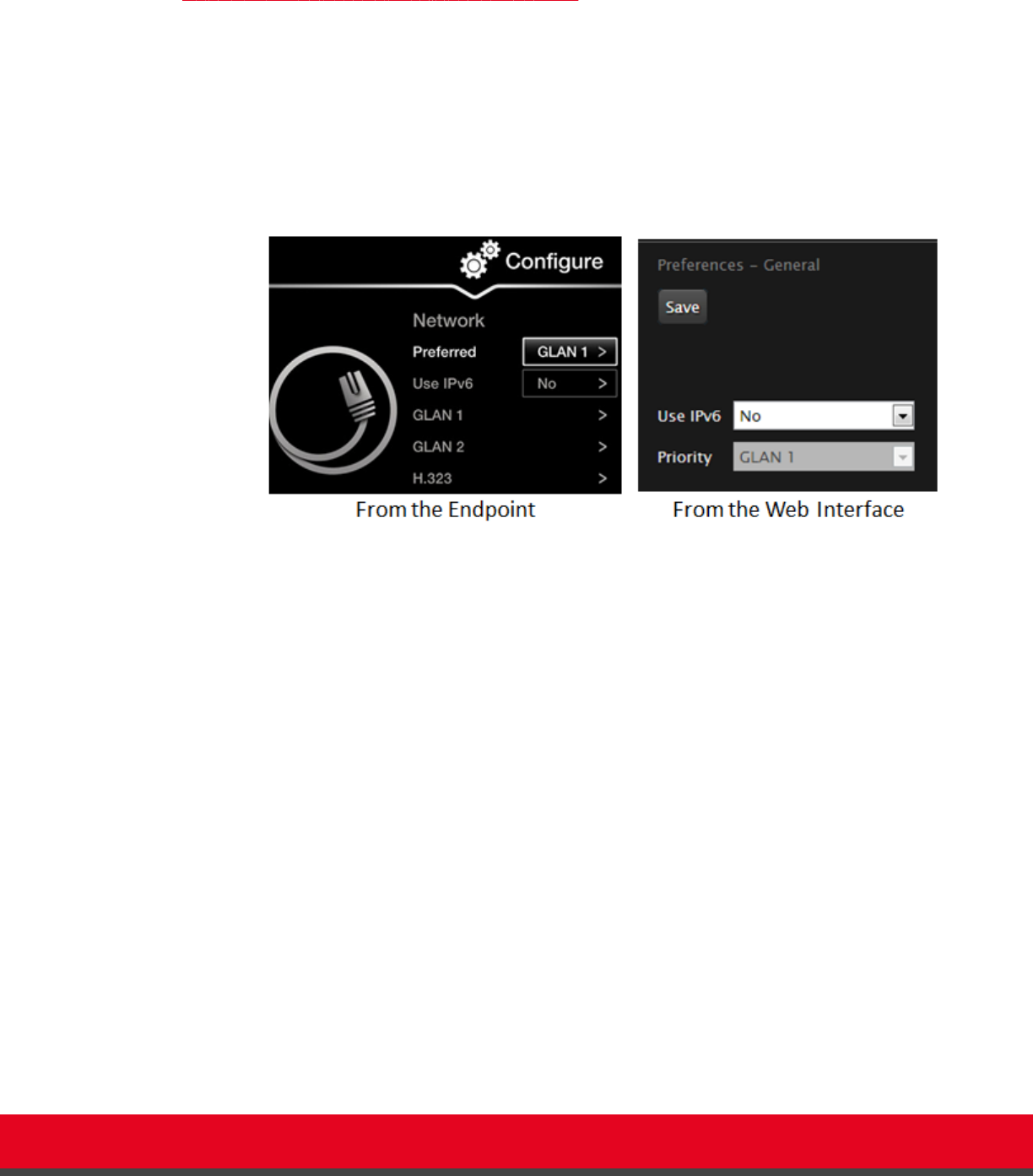

Figure 73: Configuring the Priority setting from the web interface
2. Set the Priority setting to the GLAN port that the preferred network uses. This field specifies
in which order the system places outgoing calls.
3. From the web interface only, select Save.
4. Access the call settings as follows:
•
From the web interface, select Administrator Settings > Calls > Preferences >
General.
•
From the endpoint, select Configure > Advanced > Calls > Preferences > General.
