Table 31: Configuring H.323 settings
Field Name Description
H.323 Name The H.323 name or ID (alias) used to register the unit with the
gatekeeper.
When connecting over H.323, this name is displayed on the
monitors participating in the videoconference (for example:
John-Smith, or 9th-Floor-Room, or NY-Office).
E.164 The E.164 number used to register the unit with the
gatekeeper.
Refuse calls by IP
Address
Select Yes to allow only endpoints registered to the
gatekeeper to call your endpoint.
3. From the web interface only, select Save.
4. Select Gatekeeper under H.323.

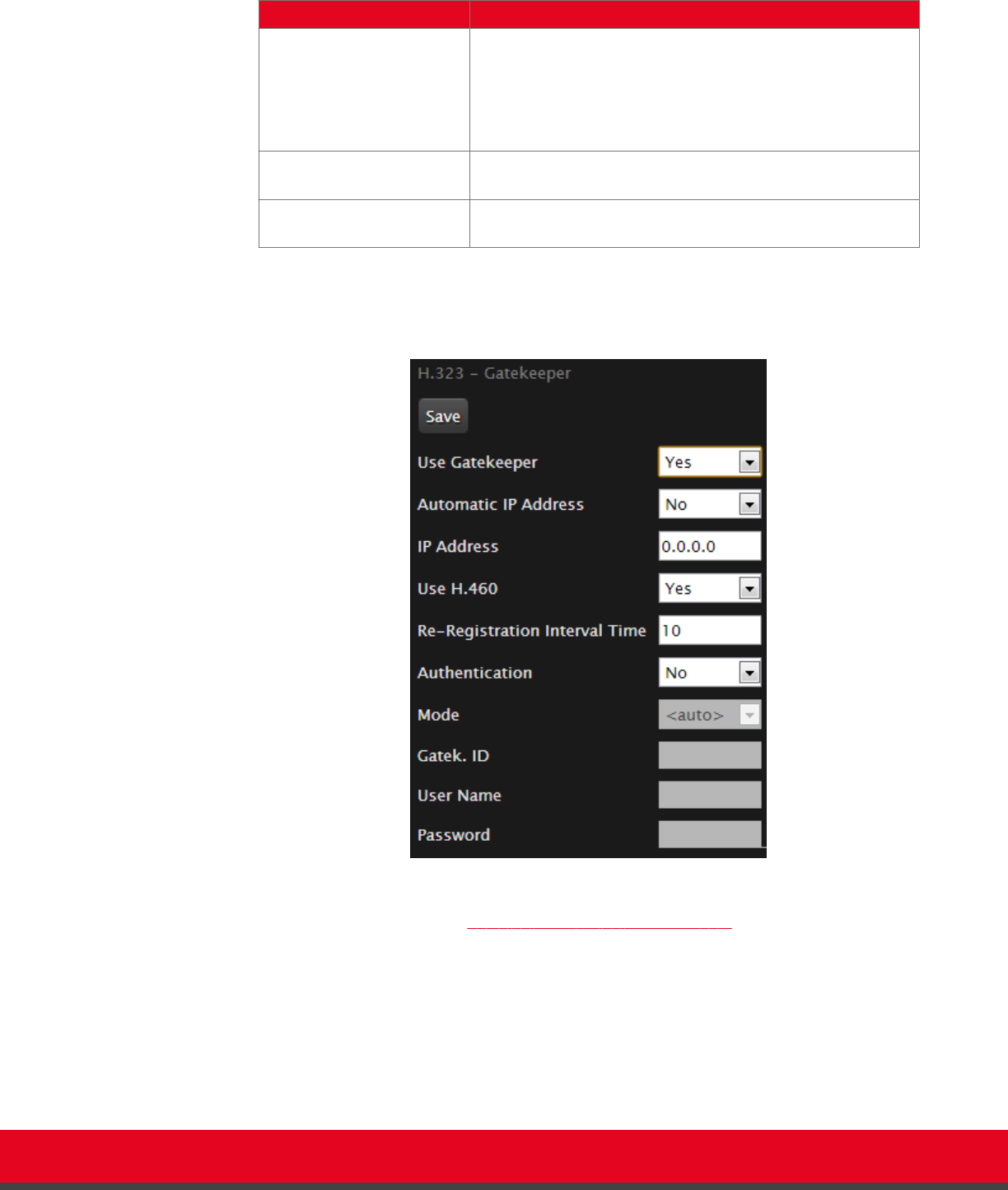

Figure 72: Configuring the Gatekeeper settings from the web interface
5. Set the fields as described in Table 32: Configuring the gatekeeper on page 123.
