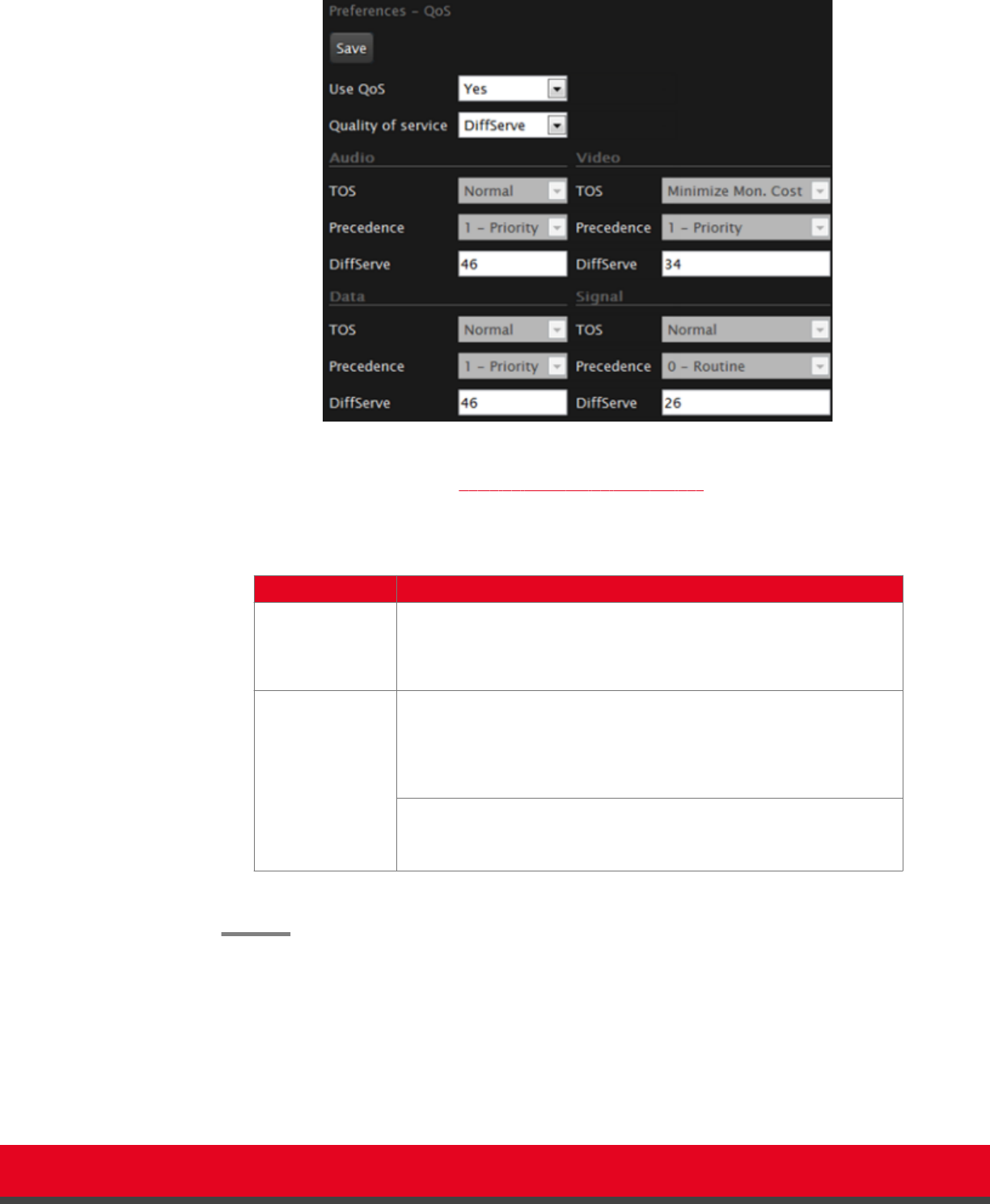

Figure 70: Configuring QoS settings
2. Set the fields as described in Table 30: Configuring QoS settings on page 120.
Table 30: Configuring QoS settings
Field Name Description
Use QoS Enable/Disable QoS. If you set Use QoS to Yes, you will provide
different priority to different data stream, or guarantee a certain level of
performance to a data stream. In particular, you may choose between
Precedence/TOS and Differentiated Service.
Quality of service Precedence/TOS - For each stream (Audio, Video, Data, Signal) sent
to the system, you may define the Type Of Services and a
Precedence to fit network capabilities. Precedence is priority. A higher
number sets a higher priority. Used mainly to class router packets as
high priority.
Differentiated Service - For each stream (Audio, Video, Data,
Signal) sent to the system, you may define a priority level to fit network
capabilities.
3. From the web interface only, select Save.
