Configuring IP Addresses
About this task
To place calls, the system supports either IPv4-only mode, or dual IPv4 and IPv6 mode.
HTTP, SNMP, and AT commands management occurs in IPv4 only, even if you set the system to
support dual mode. You can configure the IPv4 address manually or automatically.
Media streams in the same conference can be a mixture of IPv4 and IPv6.
Before you begin
If configuring from the endpoint, you must first enable advanced configuration, as described in
Maintaining the XT Endpoint Locally from the Endpoint on page 66.
Procedure
1. Access the general network settings, as follows:
•
From the XT Endpoint web interface, select Administrator Settings > Networks >
Preferences > General.
•
From the endpoint's main menu, select Configure > Network.

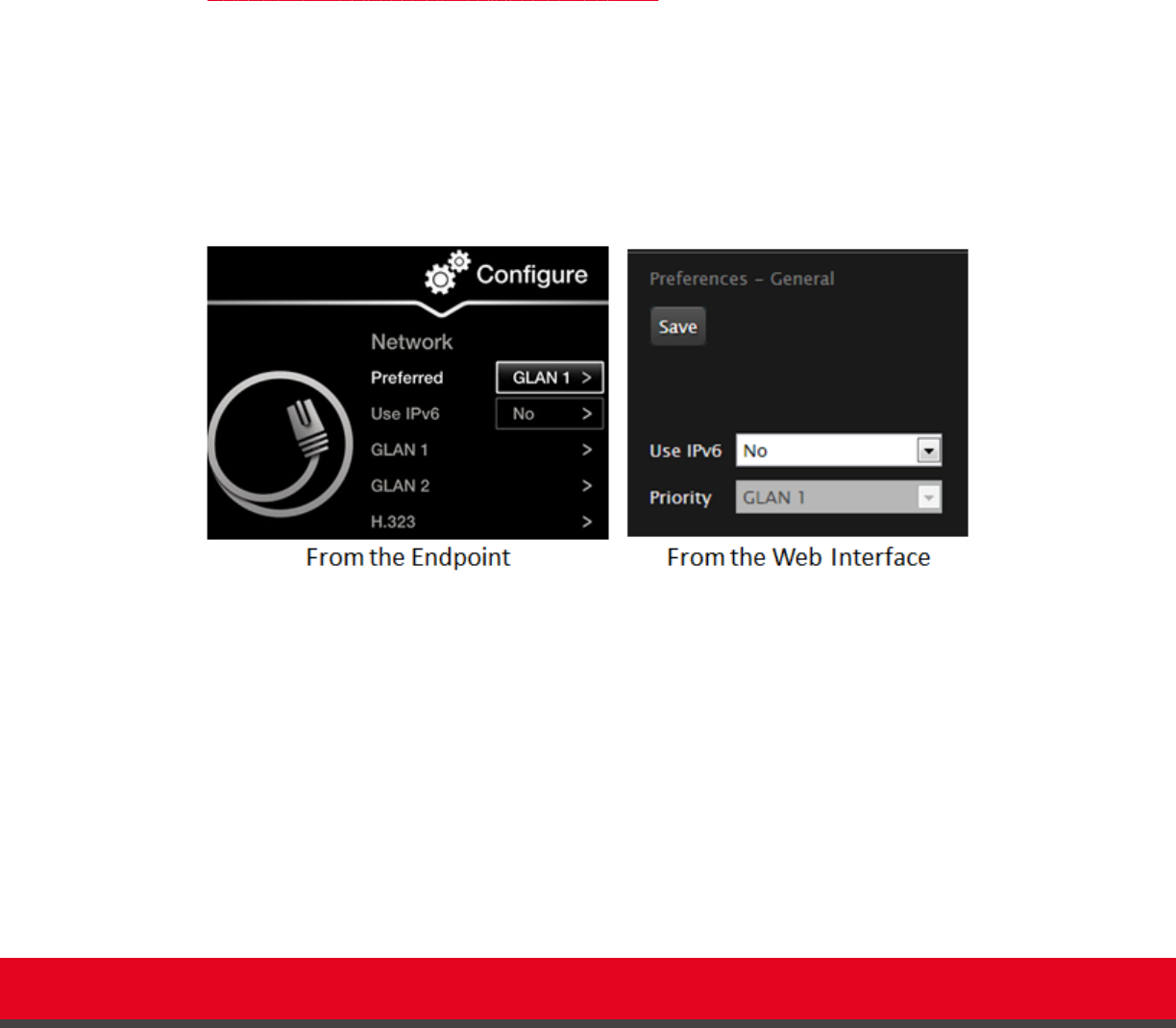

Figure 66: Enabling IPv6 mode
2. Set the Use IPv6 field to enable or disable IPv6 support.
3. From the web interface only, select Save.
4. Access the IP address settings, as follows:
•
From the endpoint, select either GLAN 1 or GLAN 2.
•
From the web interface, select Addresses under GLAN 1 or GLAN 2.
