Configuring the Echo Canceller
About this task
If your Scopia XT Endpoint for IP Office works with an external microphone system that does not contain
echo cancellation, perform this procedure to cancel echo.
Before you begin
Enable echo cancellation as described in Configuring the Microphone on page 105.
If configuring from the endpoint, you must first enable advanced configuration, as described in
Maintaining the XT Endpoint Locally from the Endpoint on page 66.
Procedure
1. Access the echo canceller settings as follows:
•
From the endpoint's main menu, select Configure > Advanced > I/O connections >
Echo Canceller.
•
From the XT Endpoint web interface, select Administrator settings > I/O
connections > Echo Canceller.

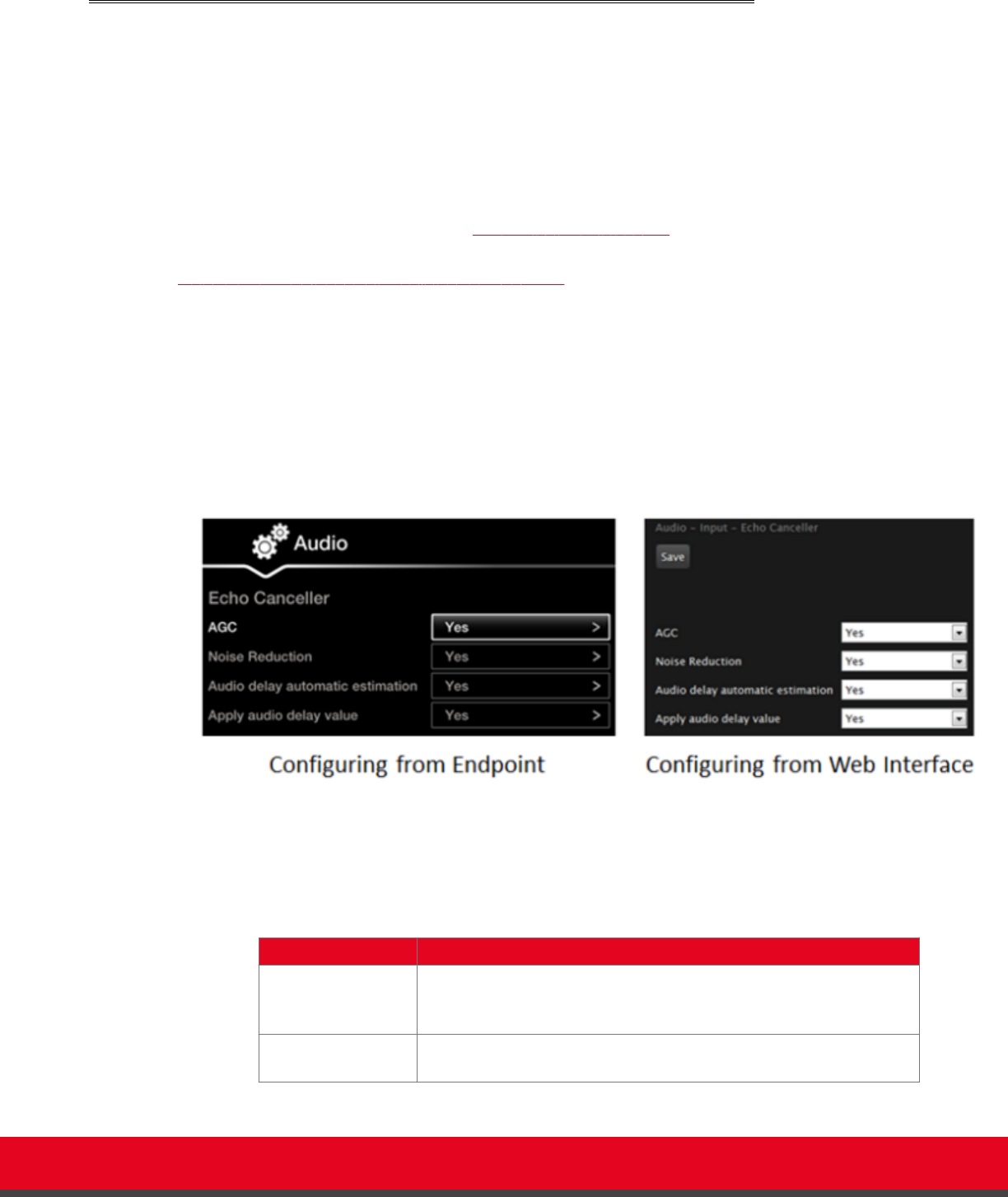

Figure 65: Configuring the Echo Canceller
2. Set the fields as required.
Table 26: Configuring echo canceller related settings
Field Name Description
AGC Enables/disables Automatic Gain Control (AGC), which is used to
adjust the volume. The AGC reduces the volume if the audio is strong
and raises when it is weak.
Noise reduction Enables/disables reduction of ambient noise in a conference room
(e.g.: coughing, paper rustling, etc.).
