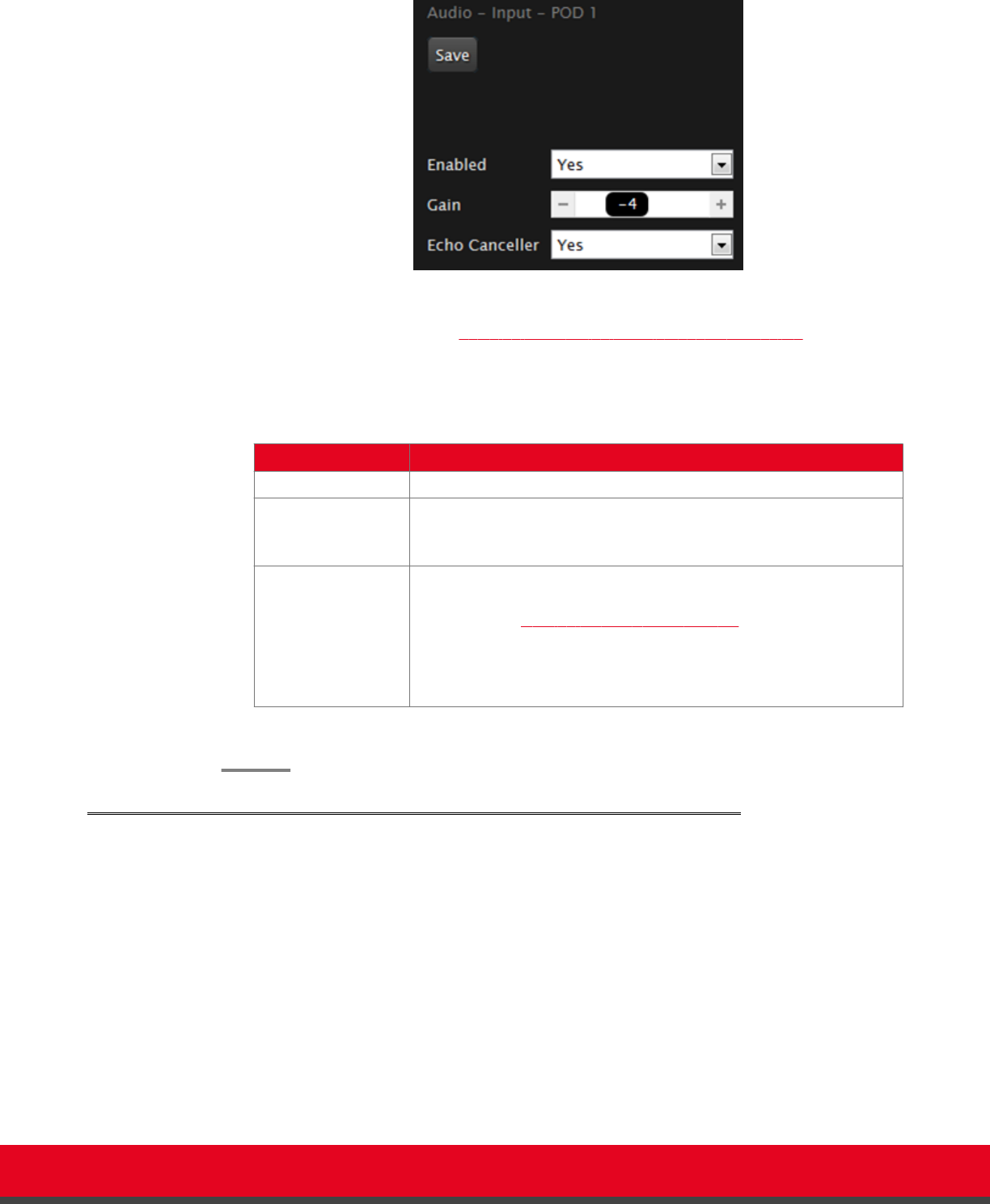

Figure 62: Configuring the microphone settings from the web interface
3. Set the fields as described in Table 23: Configuring the microphone connection on page
106.
Table 23: Configuring the microphone connection
Field Name Description
Enabled Enables/disables the microphone.
Gain Use the slider to adjust the fixed Gain Control, setting the voice signal
to the desired level. The AGC reduces the volume if the audio is
strong and raises the volume if the audio is weak.
Echo canceller Enable the echo canceller when working with an external microphone
system that does not contain echo cancellation. If enabled check the
field settings in Configuring the Echo Canceller on page 111, and
configure if required.
Disable this setting when working with an external mixer that handles
echo cancellation.
4. From the web interface only, select Save.
Configuring Analog Audio Connections
About this task
You must perform this procedure if you are using the analog audio connections:
