Specifications

Analog Entry Phone
K-1705-3
The K-1705-3 is shown with optional
VE-6x7 backbox (DOD# 424).
C.O. Line or Analog
PABX/KSU Station
Local
Programming
Phone
13.8V AC
Adapter
Included
120V AC
VIKING
©
MODEL C-3000
VIKING
ELECTRONICS
HUDSON, WI 54016
12 UNIT APARTMENT
ENTRY CONTROLLER MODULE
POWER
13.8 VAC
3456712
DOOR
STRIKE
1
DOOR
STRIKE
2
DIP
SWITCH
1 2 3
RJ21X
12 APARTMENT LINES IN/OUT
8
ENTRY 1 ENTRY 2
OUT IN
MULTI-MODULE
INTERCONNECT
POSTAL
LOCK
INPUT
Optional C-3000 (not included, DOD# 162)
If some tenants do not have C.O. phone service, the
Viking model C-3000 can be added to ring up to 12
tenant's phones. Up to eight C-3000 units can be
cascaded to support a total of 96 "No C.O." tenants.
Optional "Push to Open / Request to Exit"
Button (not included)

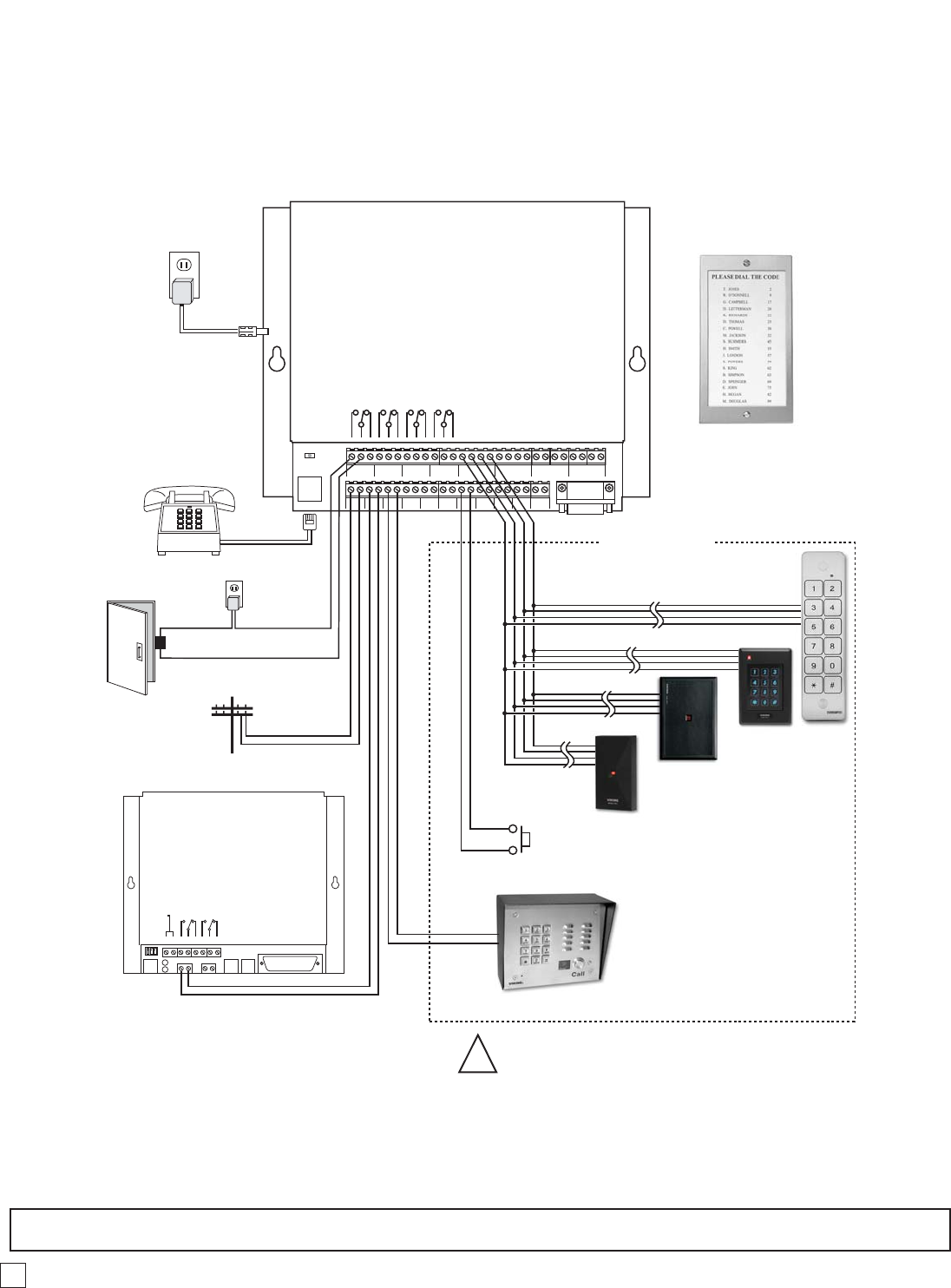

For Entry Points 2-4, wire
identically to Entry Point 1
as shown below.
Viking D-Series Directory
(not included, DOD# 158)
N.O. COM N.C.
DOOR STRIKE 1
VIKING
©
MODEL C-4000
VIKING
ELECTRONICS
HUDSON, WI 54016
APARTMENT OR OFFICE
ENTRY CONTROLLER
PROGRAM
PHONE
POWER
13.8 VAC
DOOR STRIKE RELAYS
WIEGAND INPUTS
C
LED1
N.O. COM N.C.
DOOR STRIKE 2
N.O. COM N.C.
DOOR STRIKE 3
N.O. COM N.C.
DOOR STRIKE 4
BLK RED GRN WHT
ENTRY 1
BLK RED GRN WHT
ENTRY 2
BLK RED GRN WHT
ENTRY 3
BLK RED GRN WHT
ENTRY 4
C.O. LINE
INPUT
AUX
LINE
ENTRY
PHONE 1
ENTRY
PHONE 2
ENTRY
PHONE 3
ENTRY
PHONE 4
REX
1
REX
2
REX
3
REX
4
H L
LOG BUS
RS-232 PORT
PROGRAM
PHONE
* 305m
(1000 ft) max
* 91m (300 ft) max
Entry Point 1
Viking PRX-4
(not included
DOD# 199)
5A @ 30V DC
maximum
(not included)
Doorstrike
Power Supply
Doorstrike
Viking PRX-1
(not included
DOD# 221)
Viking PRX-2
(not included
DOD# 219)
* 610m (2000 ft) max
OR
OR
* 305m (1000 ft) with 3 pair for pwr
OR
Viking PRX-3
(not included
DOD# 228)
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries
assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
DOD# 159
ZF302520 Rev G
Printed in the U.S.A.
