The MTCH protocol is configured on 28 timeslots, selectable to transmit or receive. All the timeslots are
accessible to all the DSP connected to the same bus.
To set the MTCH parameters click on RA-DMR  Radio configuration  Multichannel .

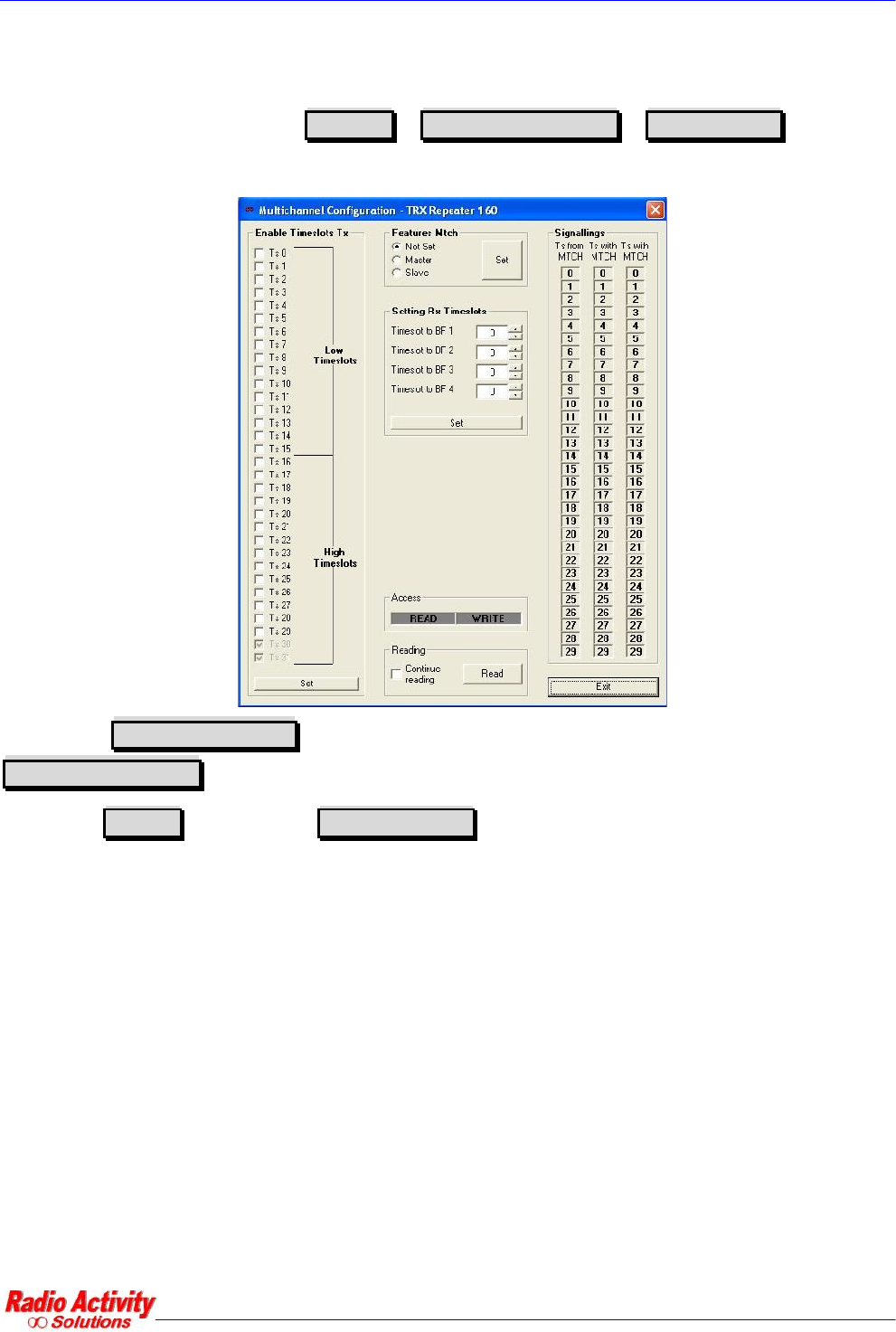

The following form will appear:
The section Enable timeslot tx allows the user to select the timeslot to transmit, and the section
Setting RX Timeslot allows to select the timeslot to read from the LAN.
The button Master in the section Features MTCH must be selected in the master radio, so a radio
works as a master and the other radios of the system as slaves.
It is also possible to get the synchronism for the base station by “Multichannel” (see AFC - AUTOMATIC
FREQUENCY CONTROL), as shown in the figure below:
