6.2.2.5 AF TEST

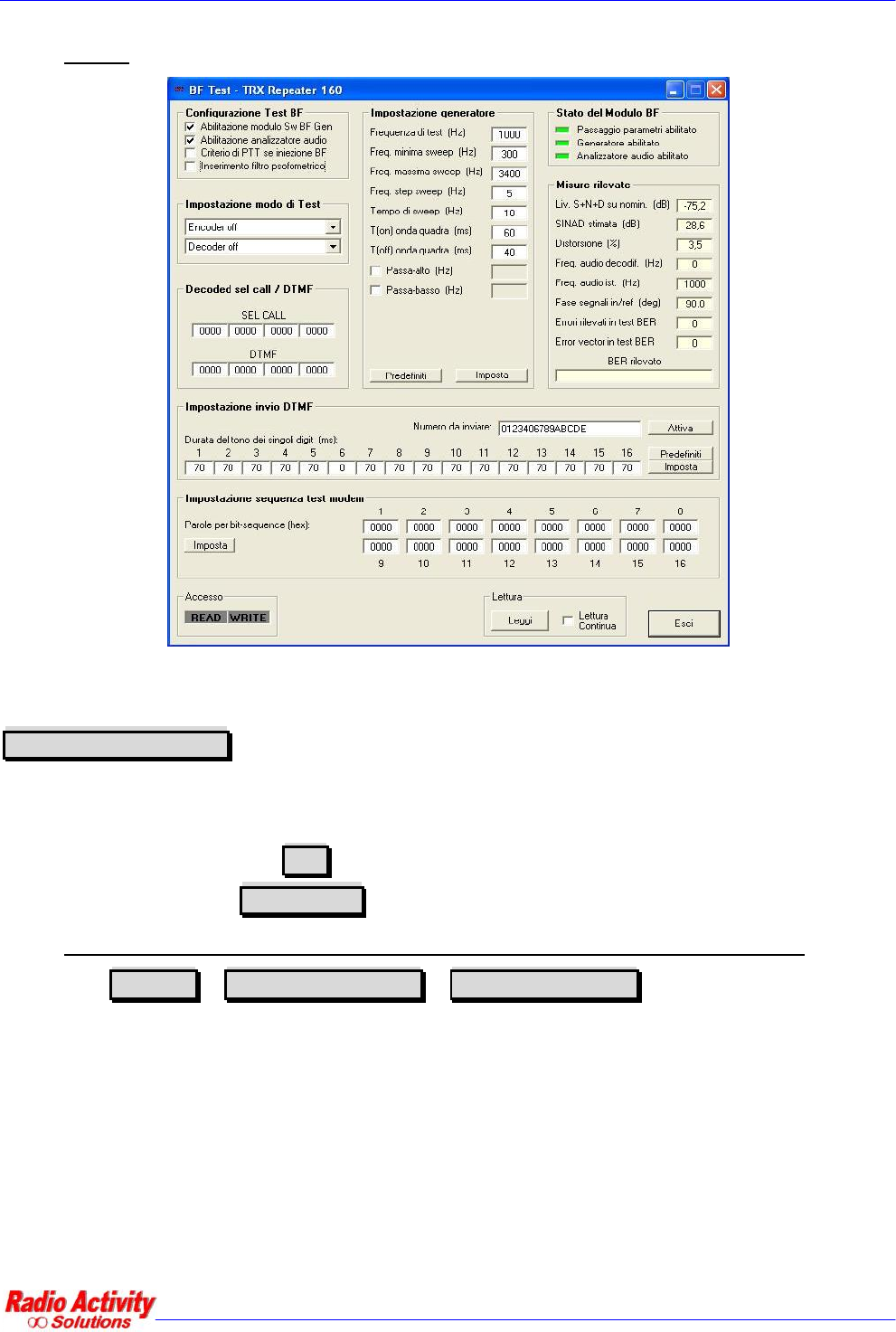

This form allows to personalize the internal audio generator and can be used to test mobile terminals.
A monitor of the received selective call is available setting the desired standard in the section
Decoded sel call/DTMF
The generator features and analyzer measures are referred to the selected test input, usually TX and RX; if the
lines test form is active, signalling is sent to the selected line.
To enable these functions click on Set ; All the parameters will assume their original values if you restart the
device, unless you perform a Save in eep operation (see the DMR LAYER CONFIGURATION paragraph).
6.2.2.6 AUDIO LINES CONFIGURATION (FOR ANALOG USE OR FOR SYNCHRONIZATION AIM ONLY)
Clicking on RA-DMR  Radio configuration  Audio lines setting you can set the input and
output audio lines levels.
