5 MAIN MENU WINDOW

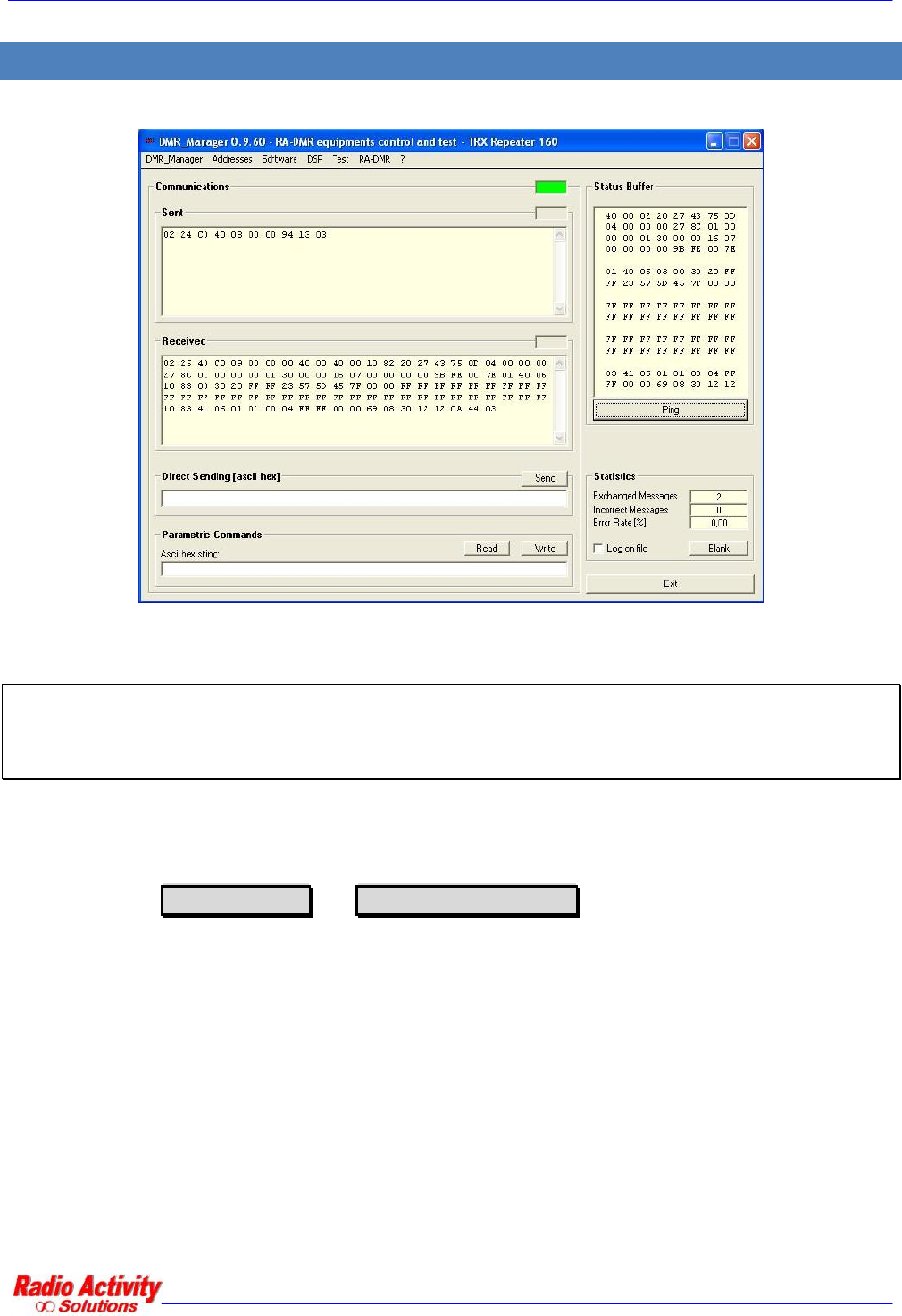

Once the logical connection is established, the main menu window will appear:
Many of the functions that can be activated here are dedicated to control activities /factory diagnostics that
the user is not normally required to do (unless this is required by technical staff).
Note: Many of the functions activable here can seriously compromise the entire system: it is recommended
to not “try” anything and be very cautious when you perform some actions on the request of
technical staff.
The elements of this window useful for the user are:
∞ The green/red light on the top right of the communications section;
∞ Menu bar items
∞ The boxes Direct Sending and Parametric Commands
In these last two boxes you can have a direct visual feedback on the exchange of information between the PC
and the device connected. During the normal activities of monitoring/diagnostics the PC interrogates the
device and the device responds to it. The absence of data in one of the two boxes indicates a problem on the
physical link or on the connection parameters set.
