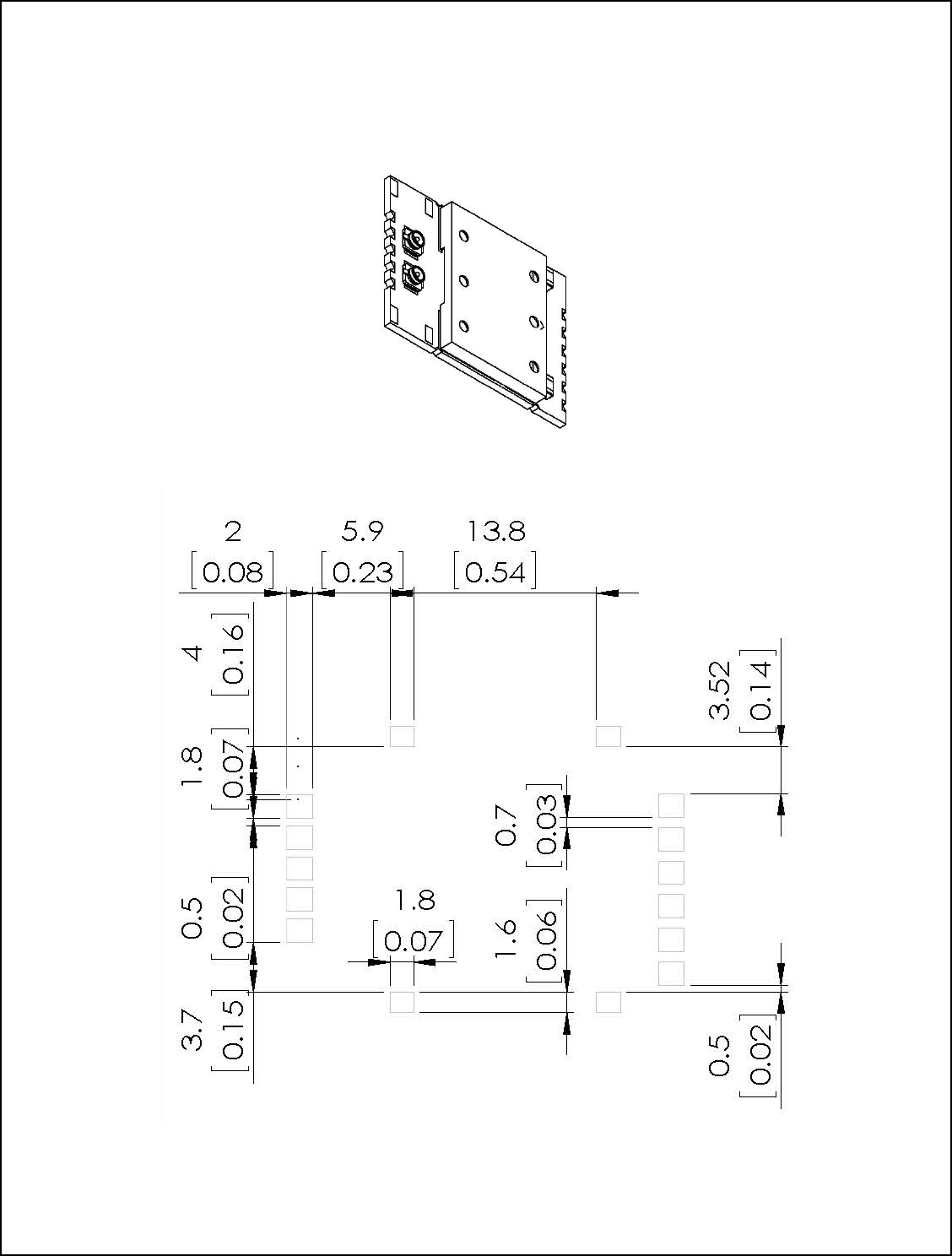

WiFiHU2S Module Layout Pad Guideline
The suggested layout pad for WiFiHU2S SM
D Modules should follow the dimension as
follows.
TOP VIEW
Unit: mm
[inch]
1
...
...
7
8
9
10
11
...
...
27
