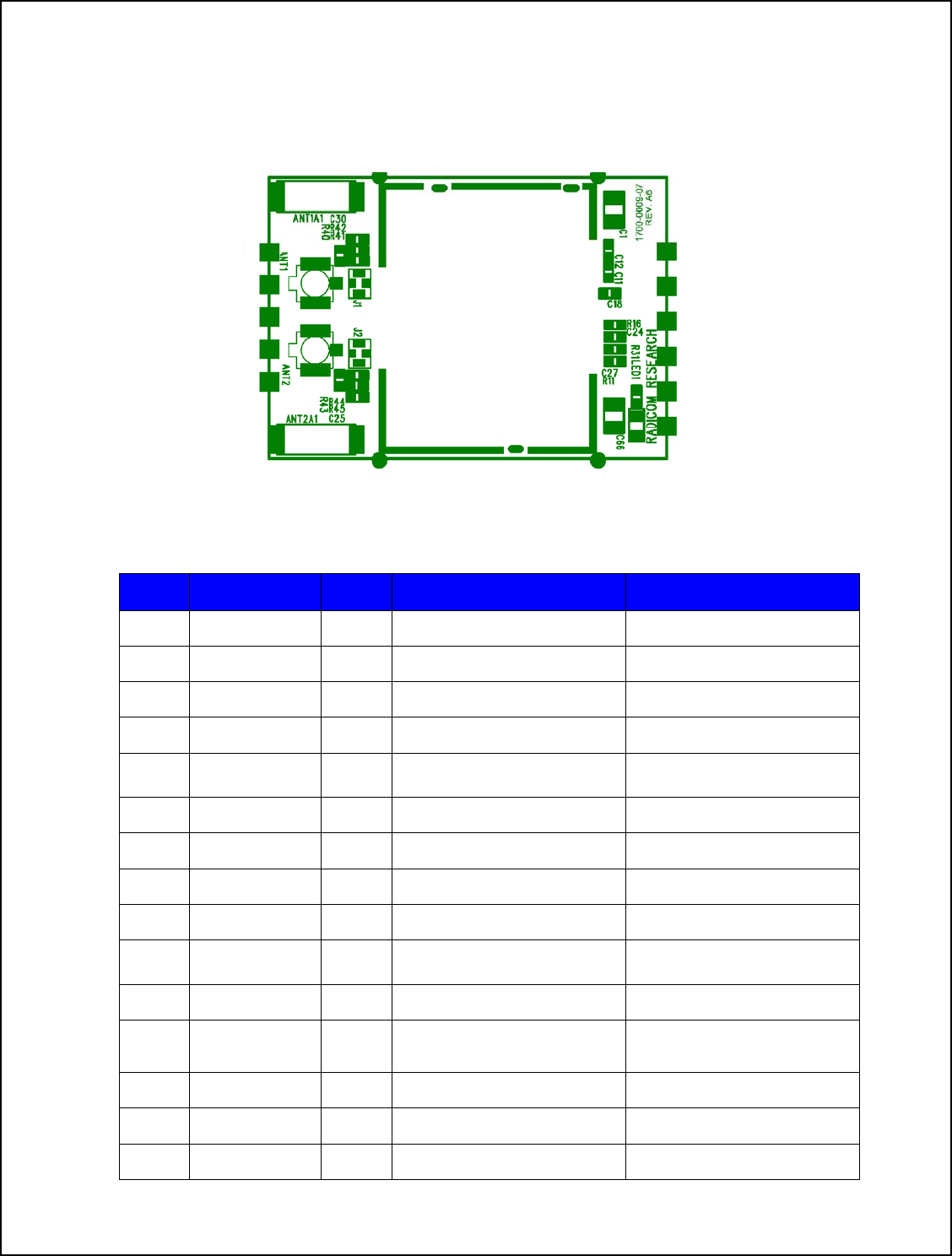

WiFiHU2S Module Pinout Diagram and Definition
Pin# Pin Name Type Description
I/O Voltage Range
01 Power Power Input power 3.3V Input voltage :3.15V~3.6V
02 HSDM I/O USB Data minus
03 HSDP I/O USB Data plus
04 GND Power System Ground
05 LED O
Output
See Note 1
Voh: 2.4V ~ 3.3V
Vol: 0V ~ 0.4V
06 GND Power System Ground
07 GND Power System Ground
08 GND Power System Ground
09 GND - See Note 2
10 ANT2 RF
RF Transmit & Receive
See Note 2
11 GND See Note 2
12 ANT1 RF
RF Transmit & Receive
See Note 2
13 GND - See Note 2
14 GND Power System Ground
15 GND Power System Ground
