User's Manual

RB9500 Designers Guide (01-30-16) 9

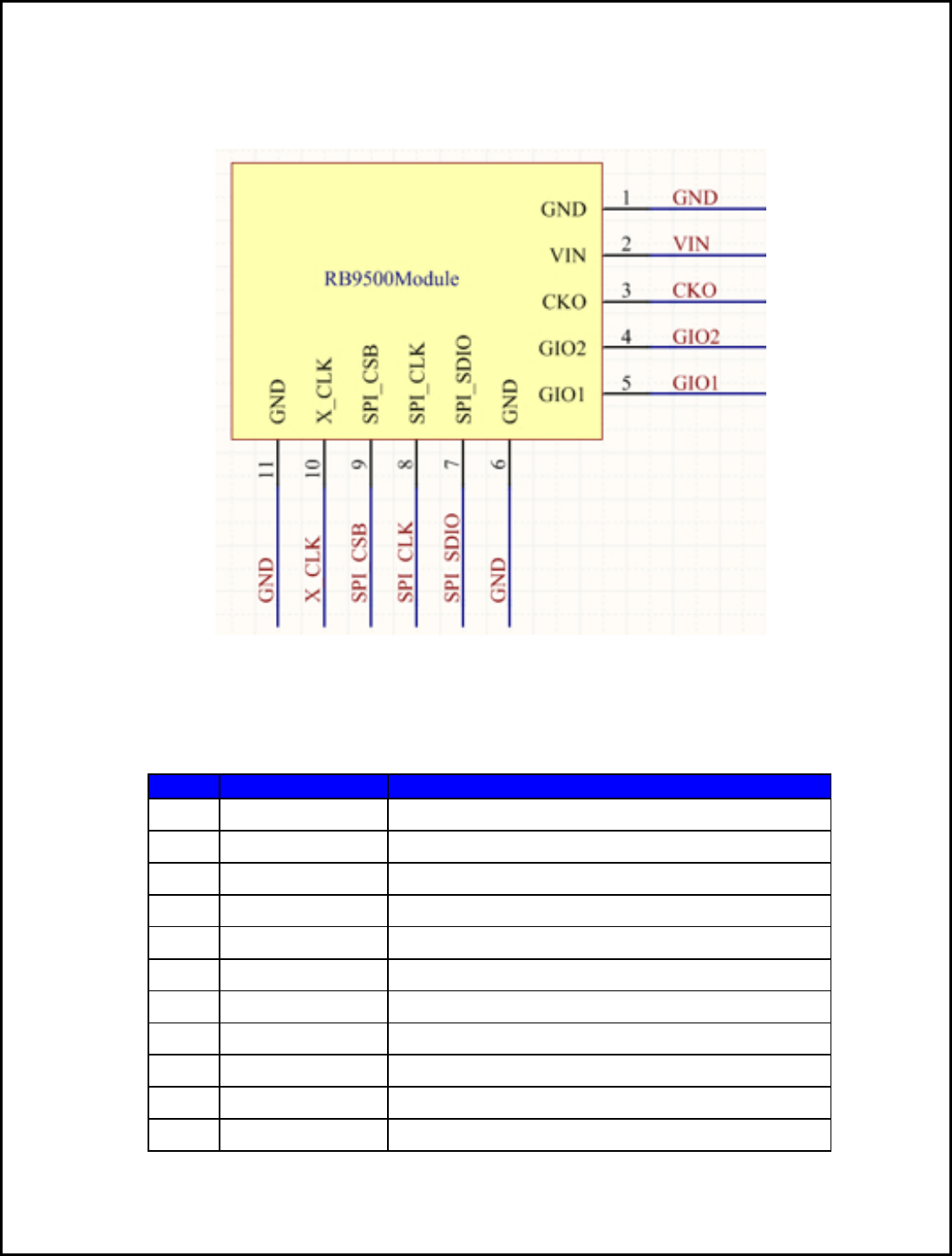

RB9500Surface Mount Module Pin Definitions
RB9500Module Pin Descriptions
Pin # Pin Name Description
1 GND Ground
2 VIN RF Module Supply Voltage Input 2.0V ~ 3.6V
3 CKO Clock Output
4 GIO2
General Purpose I/O 2
5 GIO1 General Purpose I/O 1
6 GND Ground
7 SPI_SDIO SPI Data I/O
8 SPI_CLK SPI Clock
9 SPI_CSB SPI Chip Selection
10 X_CLK X’tal Clock Output
11 GND Ground
