RB9500
Designer
’
s
Guide
(01-30-16)
8

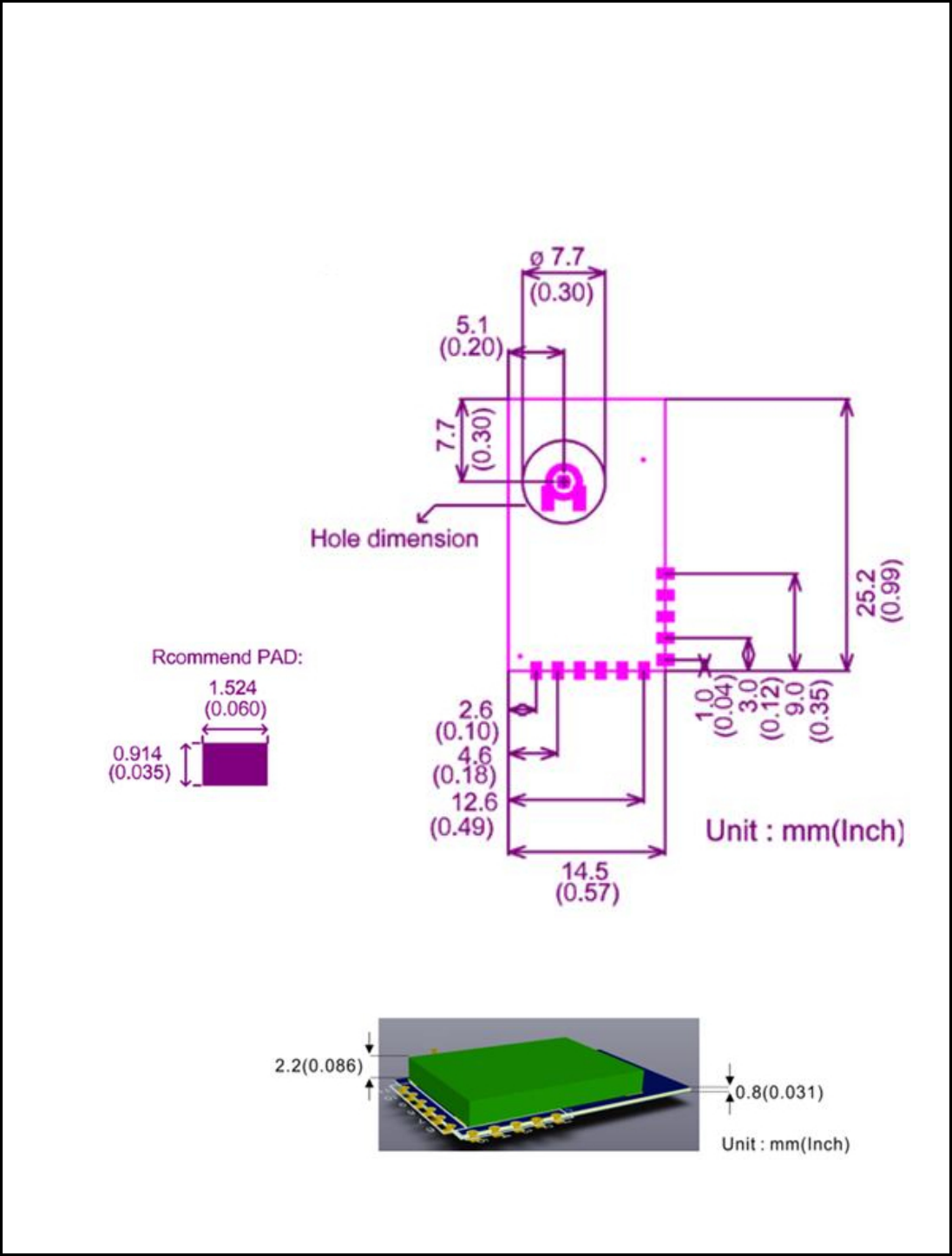

RB9500Mechanical Di
mensions
Module side view:
Height =
3.0 mm (0.
1
17”)
Module top vie
w:
Board si
ze = 14.5 mm x
25.2 mm (0.57
” x 0.99”)
Pitch
=
2.0
mm
(0.078”)
Pad
=
0.914
x
1.524
mm
(0.035”
x
0.060”)
1
...
...
6
7
8
9
10
...
...
