Introduction Thank you for choosing Radicom RB9500Module. We are committed to providing you quality service and technical support. The RB9500modules are designed to meet OEM’s needs of embedding short-range, low power, wireless data connectivity to their products. The RB9500offers a quick and simple solution for wireless 2.4GHz FSK/GFSK Transceiver. The RB9500 module is designed for 2.4GHz ISM band wireless applications.
Applications • • Wireless keyboard and mouse Remote control • Helicopter and airplane radio controller • 2400 ~ 2483.5 MHz ISM system • • Wireless metering and building automation Wireless toys and game controllers Features • Small sizes: 0.57” x 0.99” x 0.12” (14.5mm x 25.2mm x 3.0mm) • Frequency band: 2400 ~ 2483.5MHz. • • FSK or GFSK modulation Low current consumption: RX 16mA, TX 20mA (at 0dBm output power). • Low sleep current (1.5 uA). • On chip regulator, support input voltage 2.
• Auto IF function. • • Auto CRC Check. Auto FEC by (7, 4) Hamming code (1 bit error correction / code word). • Data Whitening for encryption and decryption. • Separated 64 bytes RX and TX FIFO. • • Easy FIFO / Segment FIFO / FIFO Extension (up to 256 bytes). Support direct mode with recovery clock output to MCU. • Support direct mode with frame sync signal to MCU. Electronic Specifications Item Specification Remark Supply voltage 2.0V ~ 3.6V Current consumption 1.5uA 0.3mA 1.

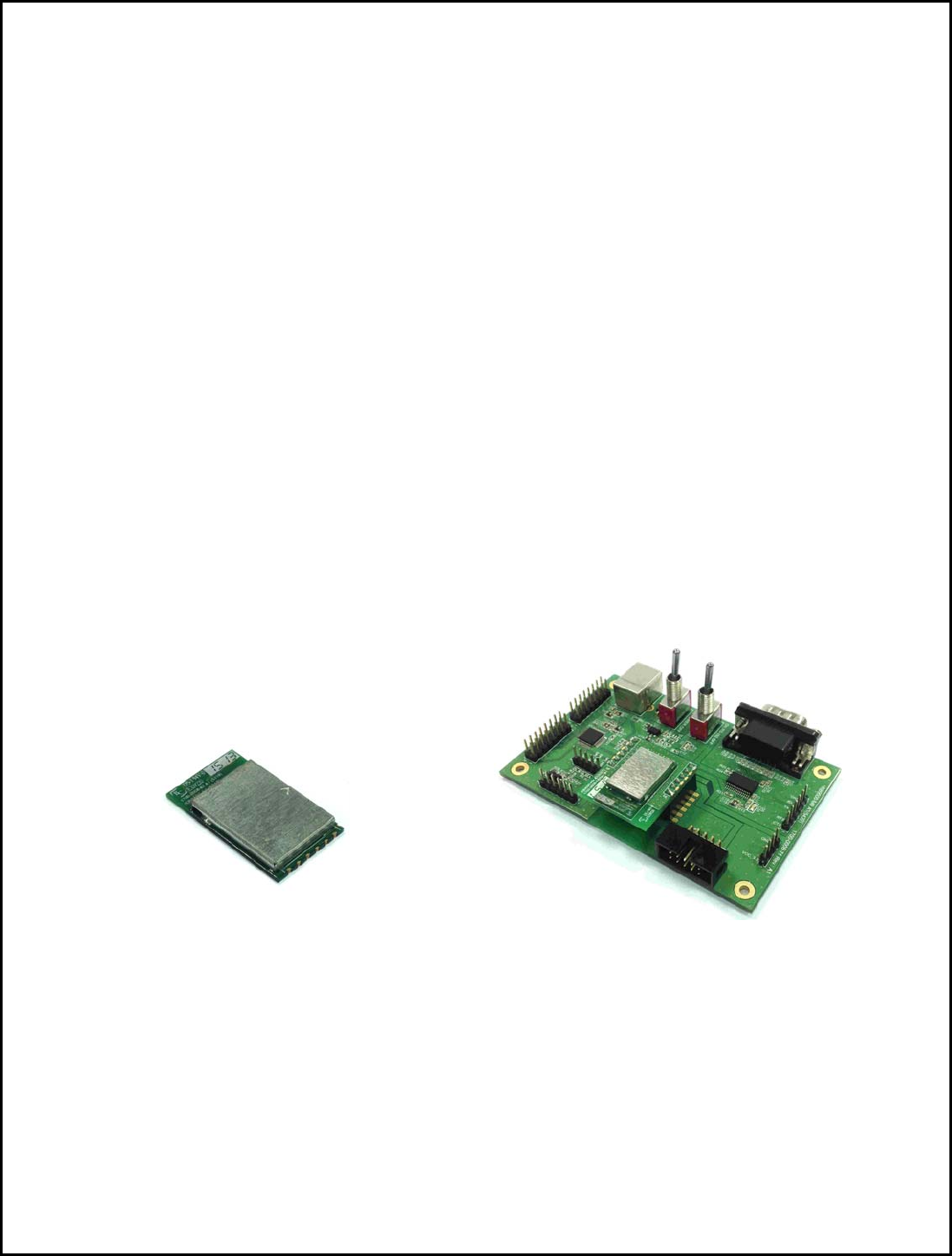

Model and Ordering Information Model Numbers RB9500 Description 0.57”x 0.99”x 0.12” surface mount, short range RB95002.4GHz FSK/GFSK Transceiver module with on-board antenna Models: RB9500 RB9500MB RB9500 Evaluation Board. Embedded a RB9500transceiver module and a 8051 microcontroller. Models: RB9500MB MDK9500 RB9500 Evaluation Kit.
Block Diagram RB9500 Designer’s Guide (01-30-16) 7
RB9500Mechanical Dimensions Module top view: Board size = 14.5 mm x 25.2 mm (0.57” x 0.99”) Pitch = 2.0 mm (0.078”) Pad = 0.914 x 1.524 mm (0.035” x 0.060”) Module side view: Height = 3.0 mm (0.
RB9500Surface Mount Module Pin Definitions RB9500Module Pin Descriptions Pin # Pin Name Description 1 GND Ground 2 VIN RF Module Supply Voltage Input 2.0V ~ 3.
RB9500MB Main Board RS232 DB9 Pin Definitions The pin definitions of DB9 used on the RB9500MB RS232 Serial Connector are as follows: 1. DCD: Input, Carrier Detect 2. 3. RXD: Input, Received Data TXD: Output, Transmit data 4. DTR: 5. GND: Ground 6 7. DSR: RTS: Input, Data Set Ready Output, Request to Send 8. CTS: Input, Clear to Send 9.
RB9500MB Function Display 1. USB 5V slot (USB1) 7. IDC 10 header for C2 Interface (P7) 2. Main board power switch (S5) 3. UART enable/disable switch (S6) 8. RB9500Module 9. 4-wire SPI interface header (P5) 4. RS232 male DE-9 connector (J1) 10. 3-wire SPI interface header (P6) 5. UART Interface header (P4) 11. C8051 MCU PIOs header (P8:P1.0 to P2.7) 6. DC 3.3V output header (P3) 12. C8051 MCU PIOs header (P9:P3.0 to P4.7) RB9500MB Operation Description a. Apply power through USB 5V slot (USB1) b.
Layout Design Suggestions • General Layout Rules- All Printed Circuit Boards must comply with UL94V0 standard for flammability. Always use RoHS compliant Parts and materials. • Suggestions for Layout: 1. Do not place Power circuit, X’tal, Inductor, etc near RF area. 2. The bigger Antenna clearance area, the better. The Antenna itself needs to stay away from any circuit or component at least 3mm. Antenna clearance area means Top and Bottom both required to be cleared. 3.
4-Wire to 3-Wire Interface Diagram RB9500 Designer’s Guide (01-30-16) 13
R/W CTRL REG timing diagram R/W CTRL REG timing diagram for Reset RB9500 Designer’s Guide (01-30-16) 14
R/W ID Diagram R/W FIFO Diagram RB9500 Designer’s Guide (01-30-16) 15
Interface for W Strobe RF Format RB9500 Designer’s Guide (01-30-16) 16
RF Operation for FIFO TX RF Operation for FIFO RX RB9500 Designer’s Guide (01-30-16) 17
RD State Machine Control Register Table & Description RB9500contains 51 x 8-bit control registers. MCU can access those control registers via 3-wire (SCS, SCK, SDIO) or 4-wire (SCS, SCK, SDIO, GIO1/GIO2) SPI interface (support max. SPI data rate up to 10 Mbps). RB9500is simply controlled by registers and outputs its status to MCU by GIO1 and GIO2 pins. See datasheet for the details.
FCC & IC Label and Model Identification The RB9500 module family is FCC Part 15 and IC (Industry Canada) certified. The RB9500 is also CE marked. The modules are labeled with the RB9500 module model number and FCC Part 15 ID, IC registration number and CE mark. The label can be found on top of the metal shielding on the RB9500 Module.
Note: Models RB9500 will have an additional Product ID label containing the HM model number.
Important Regulatory Compliance and User Information The final product with the modules installed needs to be tested for FCC Part 15, IC (Industry Canada) CE, EMI/RFI compliance. Radicom certification documentation will help streamline the final product approval process. Contact Radicom for more information. To maintain compliance in the finished product, carefully follow guidelines in this section.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF Exposure compliance. The end user should NOT be provided any instructions on how to remove or install the device. The user’s manual for end users must include the following information in a prominent location.
IC (Industry Canada) Statement: Host(End Product) Labeling requirements The final edn product must be labeled in a visible area with the following: “ Contains IC: 2377A-RB9500 ” “This device complies with Industry Canada license-exempt RSS standard(s).
• Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with maximum power (EIRP*) of 10 mW for the 2454-2483 MHz band Europe – R&TTE Compliance Statement: Hereby, Radicom Research Inc. declares that this equipment complies with the essential requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE).
from this warranty. Because of wide variations in topographical and atmospheric conditions, which may require availability of repeater stations or of particular radio frequencies, RRI assumes no liability for range, coverage or suitability of the Product for any particular application. Buyer acknowledges that RRI does not know a particular purpose for which buyer wants the product, and that buyer is not relying on RRI’s skill and judgment to select or furnish suitable goods.
PERMITTED BY LAW, RRI DISCLAIMS ANY LIABILITY FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVING OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE OR FAILURE OF SUCH PRODUCT. Contacting Radicom Research If more information or technical support is needed, please contact us: 2148 Bering Drive San Jose, CA.
