Datasheet

10-6
Our Most Important Connection is with You.™
Go online for data sheets & assembly instructions. Visit www.radiall.com and enter the part number.

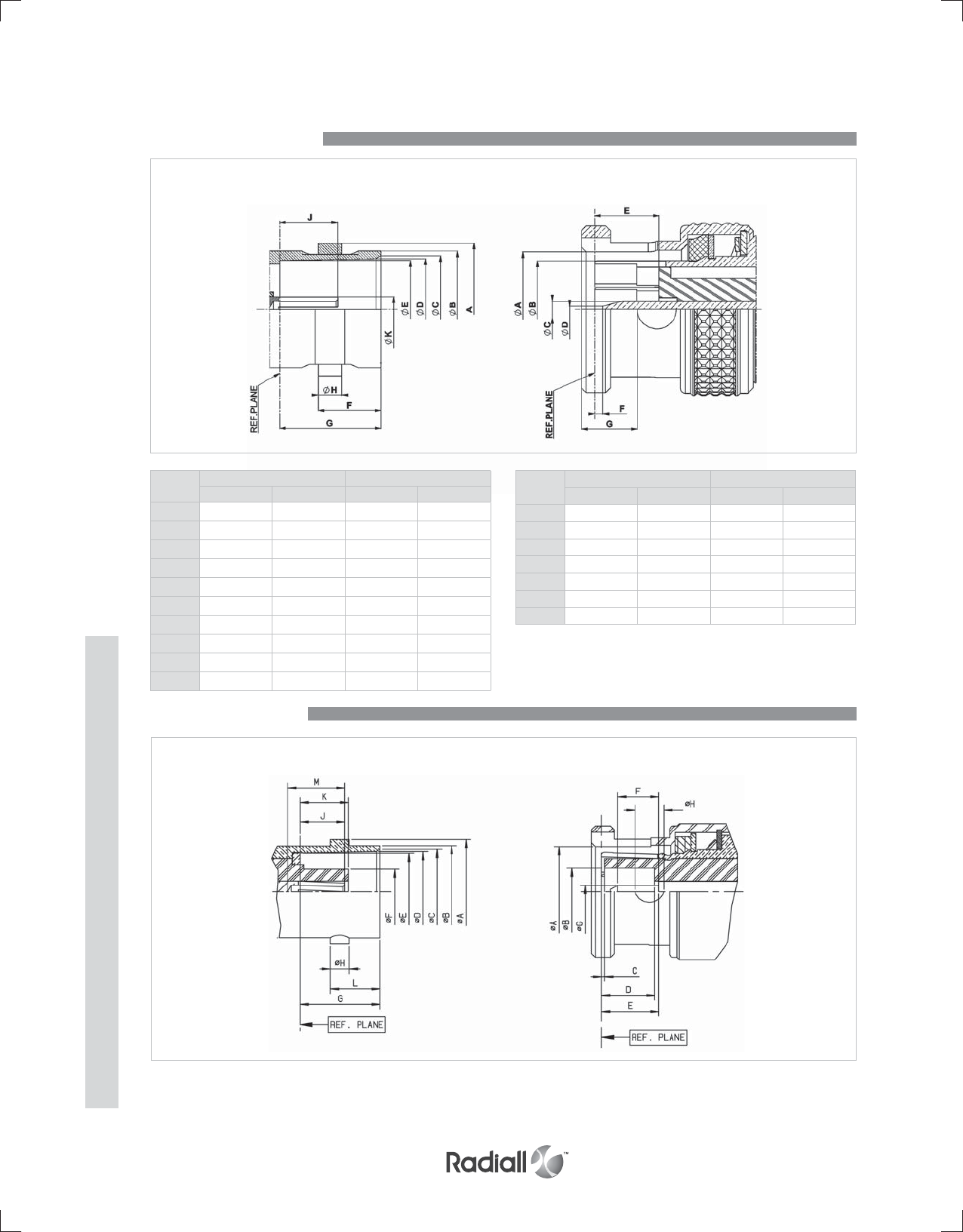

JACK PLUG
JACK PLUG
Letter
mm inch
min. max. min. max.
A
10.97 11.07 .432 .436
B
9.60 9.67 .378 .381
C
8.80 9.00 .346 .354
D
8.32 8.46 .328 .333
(
8.10 8.15 .319 .321
F
5.18 5.28 .204 .208
*
8.30 8.50 .327 .335
H
1.90 2.06 .075 .081
J
4.72 5.22 .186 .206
.
2.10 2.14 .083 .084
Letter
mm inch
min. max. min. max.
A 9.80 9.90 .386 .390
B 8.30 8.40 .327 .331
C 1.32 1.37 .052 .054
D 0.35 0.65 .014 .026
( 5.30 5.50 .209 .217
F 0.10 0.90 .004 .035
* 4.57 4.67 .180 .184
BNC 75 HDTV/BNC 50Ω
Interface BNC 75 HDTV
Interface BNC 501
