TECHNICAL DATA SHEET

1/2

BULKHEAD JACK RECEPTACLE FRONT MOUNTING

R141.557.000

WITH SOLDER POT CONTACT

Series : BNC

Issue : 0431 E

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.

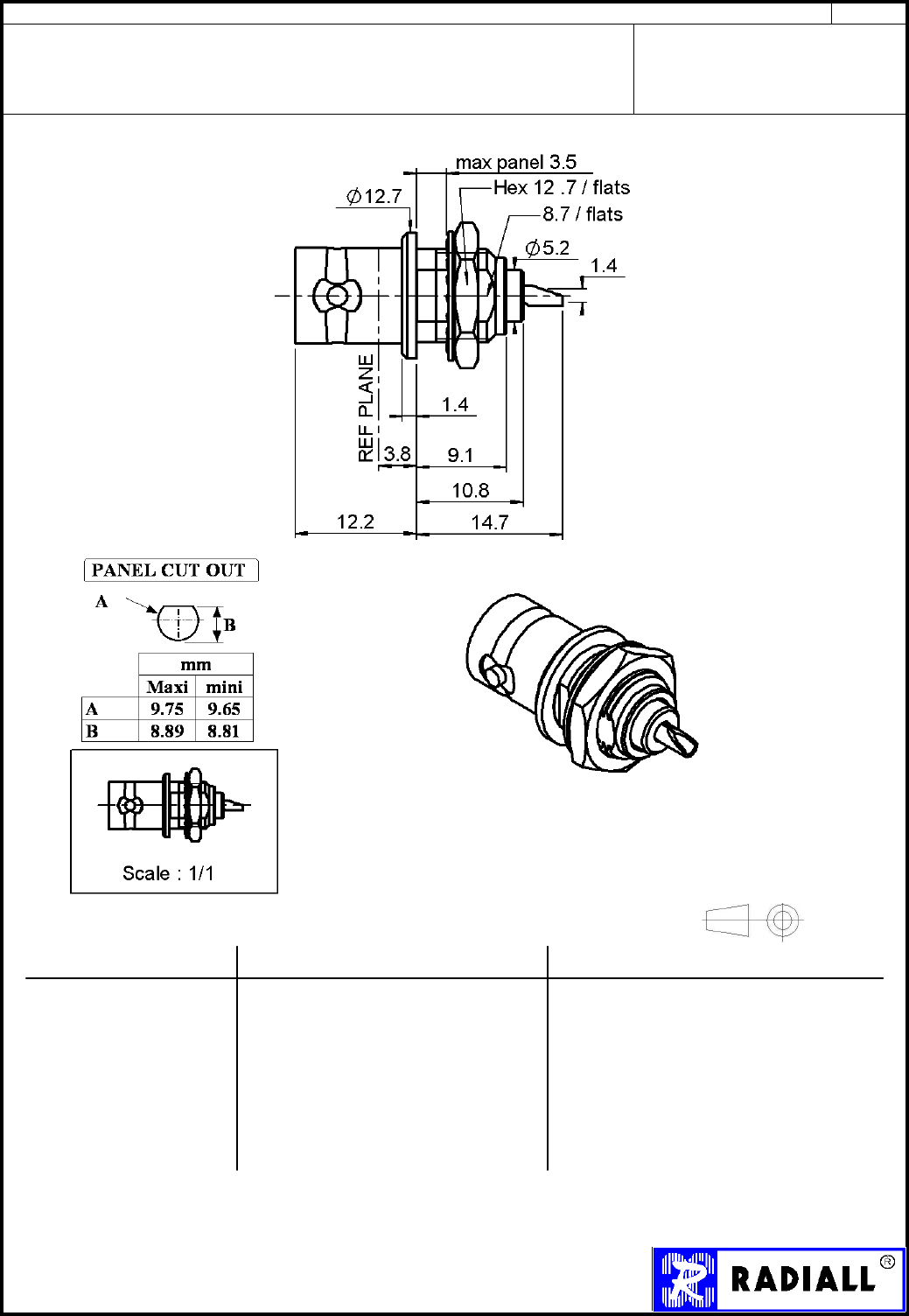

All dimensions are in mm.

pn ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

BRASS

BERYLLIUM COPPER

PTFE

BRASS

PLATINGS (µm)

NICKEL 2

GOLD 0.5 OVER NICKEL 2

NICKEL 2

PAGE 1
TECHNICAL DATA SHEET 1/2 BULKHEAD JACK RECEPTACLE FRONT MOUNTING R141.557.000 Series : BNC WITH SOLDER POT CONTACT All dimensions are in mm. . pn . ao COMPONENTS BODY CENTER CONTACT OUTER CONTACT INSULATOR GASKET OTHERS PARTS - PLATINGS (µm) MATERIALS BRASS BERYLLIUM COPPER PTFE BRASS - NICKEL 2 GOLD 0.5 OVER NICKEL 2 - NICKEL 2 - Issue : 0431 E In the effort to improve our products, we reserve the right to make changes judged to be necessary.
PAGE 2
TECHNICAL DATA SHEET 2/2 R141.557.000 BULKHEAD JACK RECEPTACLE FRONT MOUNTING Series : BNC WITH SOLDER POT CONTACT PACKAGING Standard 100 SPECIFICATION Unit ‘W’ option Other Contact us ELECTRICAL CHARACTERISTICS Impedance Frequency VSWR 1.3 + Insertion loss RF leakage -( Voltage rating Dielectric withstanding voltage Insulation resistance 50 0-4 0.000 .
