TECHNICAL DATA SHEET

1 / 2

STRAIGHT JACK CLAMP TYPE

R141.207.000

CABLE 5/50 S+D

Series : BNC

Issue : 0905 C

In the effort to improve our products, we reserve the right to make changes judged to

be necessary.

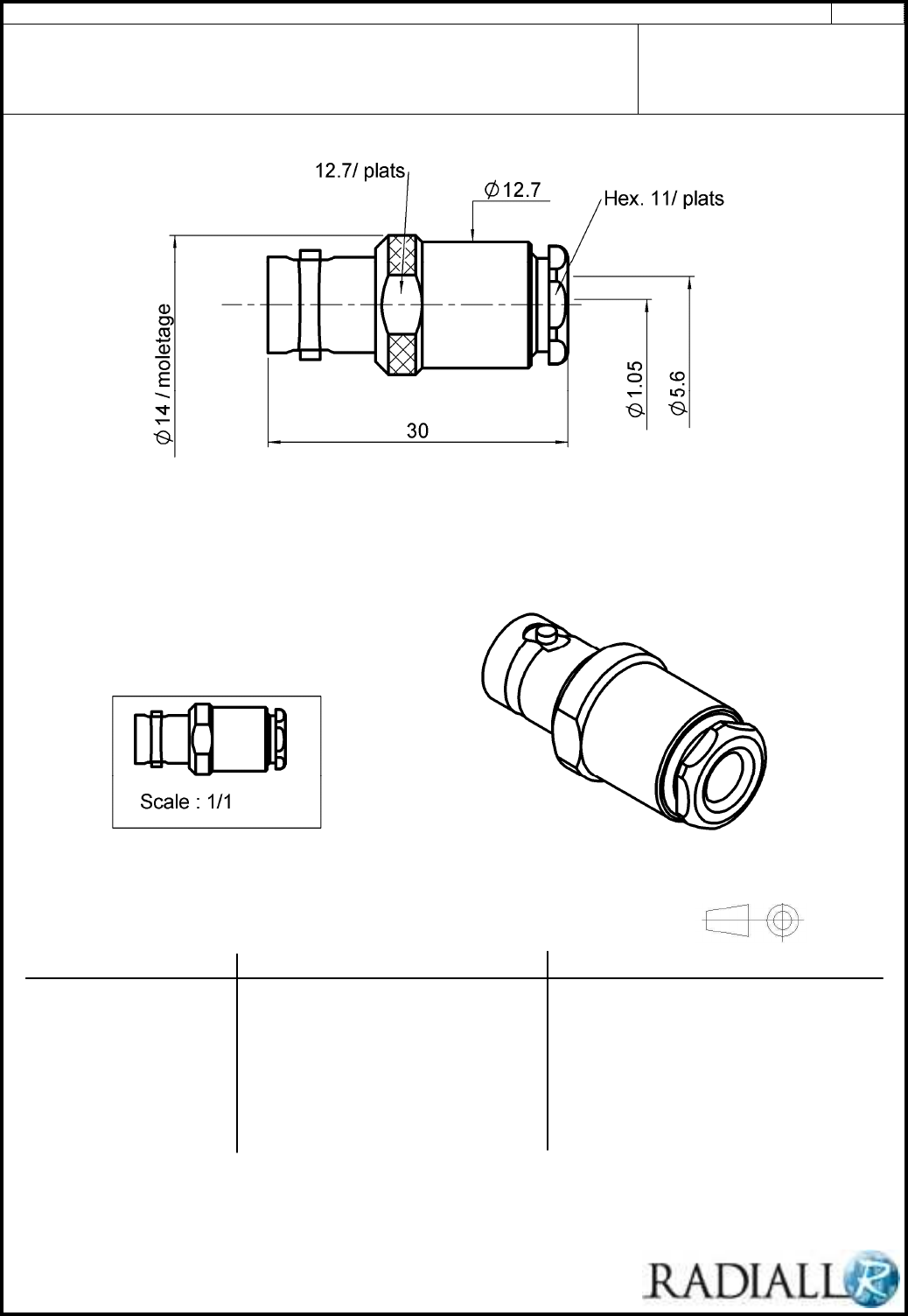

All dimensions are in mm.

. .

pn ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

BRASS

BERYLLIUM COPPER

PTFE

SILICONE RUBBER

BRASS

PLATING

(µm)

NICKEL 2

GOLD 0.5 OVER NICKEL 2

NICKEL 2

PAGE 1
TECHNICAL DATA SHEET 1/2 R141.207.000 STRAIGHT JACK CLAMP TYPE Series : BNC CABLE 5/50 S+D All dimensions are in mm. . pn . ao COMPONENTS BODY CENTER CONTACT OUTER CONTACT INSULATOR GASKET OTHERS PARTS - MATERIALS BRASS BERYLLIUM COPPER PTFE SILICONE RUBBER BRASS - PLATING (µm) NICKEL 2 GOLD 0.5 OVER NICKEL 2 - NICKEL 2 - Issue : 0905 C In the effort to improve our products, we reserve the right to make changes judged to be necessary.
PAGE 2
TECHNICAL DATA SHEET 2/2 R141.207.000 STRAIGHT JACK CLAMP TYPE Series : BNC CABLE 5/50 S+D PACKAGING SPECIFICATION Standard 100 Unit ‘W’ option Other Contact us DHS 795 130 CABLE ASSEMBLY ELECTRICAL CHARACTERISTICS Impedance 50 Ω Frequency 0-4 GHz VSWR 1.3 + 0,0000 x F(GHz) Maxi Insertion loss 0.
