2. System Design
2.1 RSN-iDEN-30-DC Specification

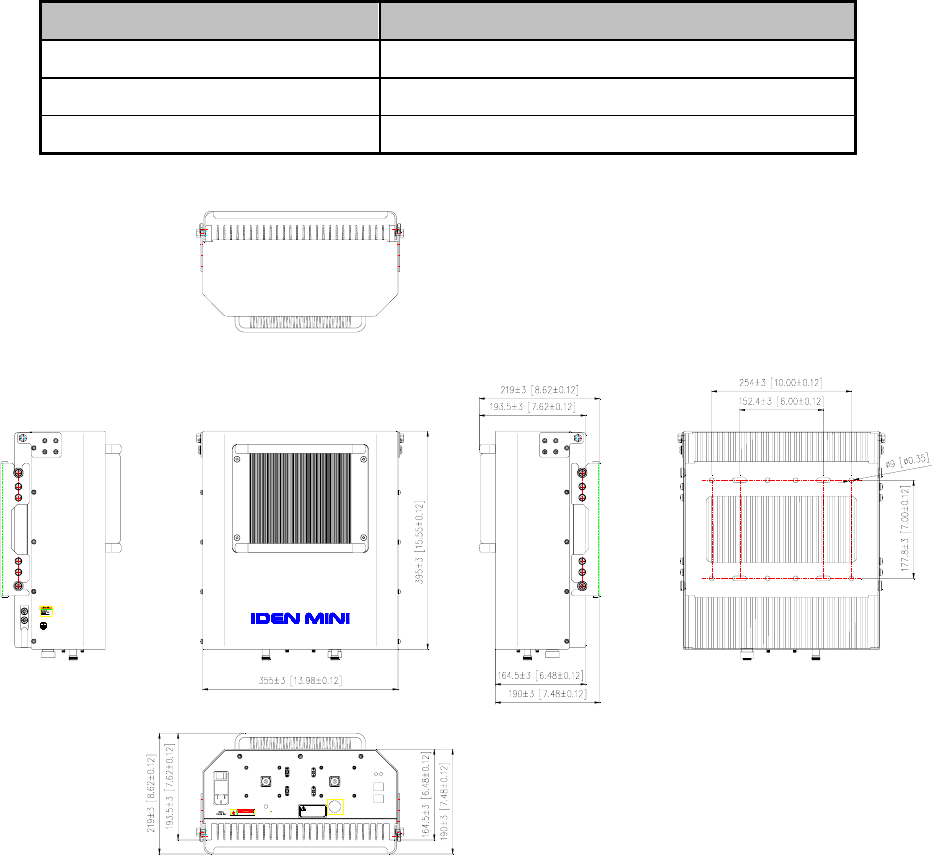

2.1.1 Mechanical Specification
Parameter Specification
RF Ports N-female x 2, SMA-female x 5
Size
13.98 X 15.55 X 7.62(inch), 355 X 395 X 193.5(mm)
Weight 18.56Kg(40.92lbs)
<Table 2-1> Mechanical Specification
DONOR
ANTENNA
SERVER
ANTENNA
LOCAL
REMOTE
ALARM
+12Vdc or -12Vdc
DC OUT
DANGER
RISK OF ELECTRI C SHOCK
110 -125Vac
AC IN
MODEM ANT
Note
external devices only
Power outlet for compatible
MAX 2A
http://192.168.0.1:83
800MHz
UL Output
-30dB CPL.
900MHz
DL Output
-30dB CPL.
800MHz
DL Output
-30dB CPL.
900MHz
UL Output
-30dB CPL.
