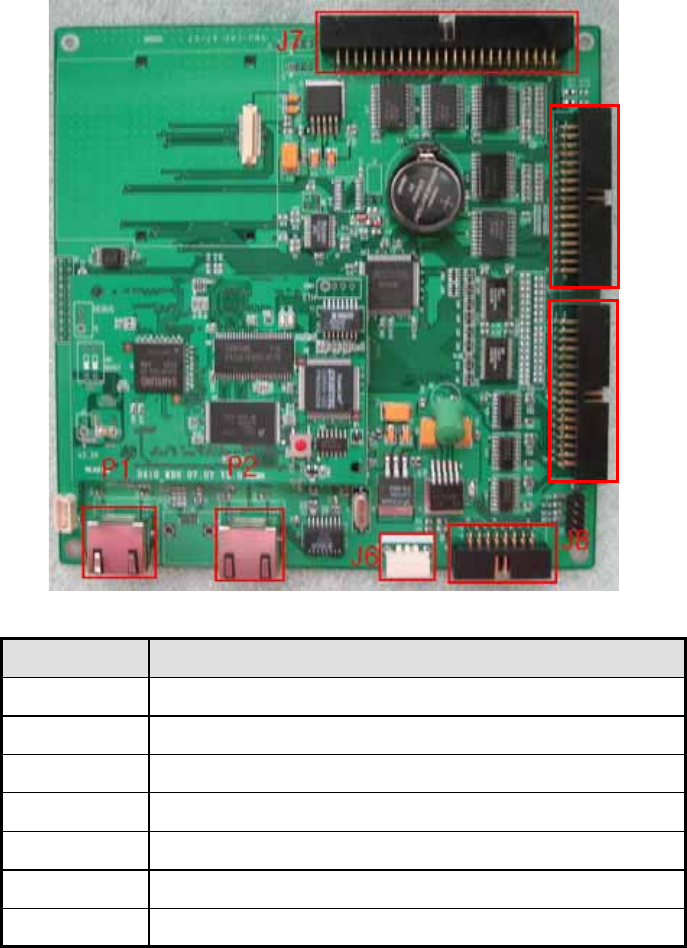

2.2.4 Main Control Unit (MCU)

MCU is the control unit of RSN-iDEN-30-DC. It controls and monitors operational parameters.

It also generates alarms, an event log and many other functions of the RSN-iDEN-30-DC.

*Pin Map*

Port Connected to

J6 MCU Vcc(+12V)

J7 Not Available

J8 PSU Alarms / Status LEDs

J9 iDEN 900

J10 iDEN 800

P1 Local

P2 Remote

J10
