1. Introduction
CDMA MINI repeater is used to fill out areas in CDMA mobile systems, such as base station
fringe areas, business and industrial buildings, etc.
CDMA MINI receives signals from a base station, amplifies and retransmits the signals to
mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both
directions are served simultaneously with the following features:
 65MHz bandwidth service
 Band Selection (5MHz , 10MHz , 15MHz , 20MHz , 5MHz+5MHz , 10MHz+5MHz,
15MHz+5MHz , 20MHz+5MHz , 5MHz+5MHz+5MHz) service
 Roll Offs: 65 dBc at 1 MHz outside pass-band
The RSN-CDMA-30-C Repeaters are controlled by powerful microprocessors. Operational
status LEDs are visible on the bottom of the repeater.
The repeater works with convection cooling without fan because it has a radiator behind the

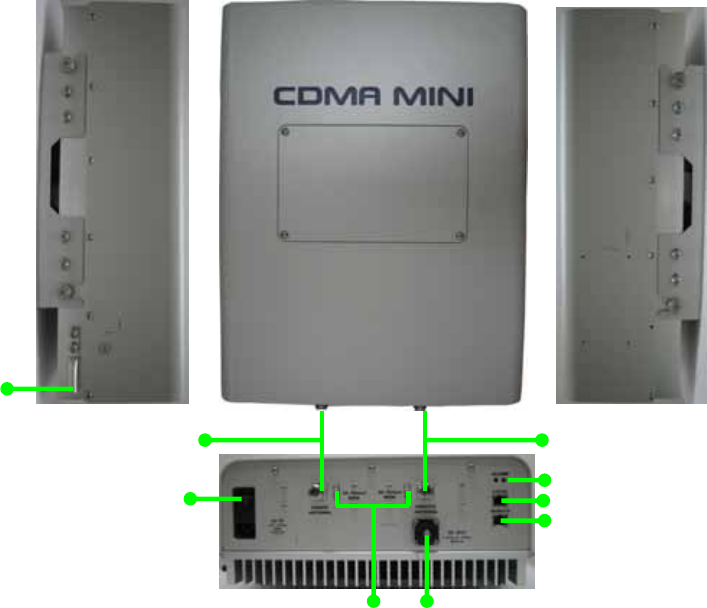

Ground contact
Donor antenna port
AC in and Switch
Alarm LEDs
Local
p
ort
Remote
p
ort
DL and UL output monitoring
DC Outlet for external device
