2.2.4 Main Control Unit (MCU)
MCU is the control unit of CDMA MINI. It controls and monitors operational parameters.
It also generates alarms, an event log and many other functions of the CDMA MINI.

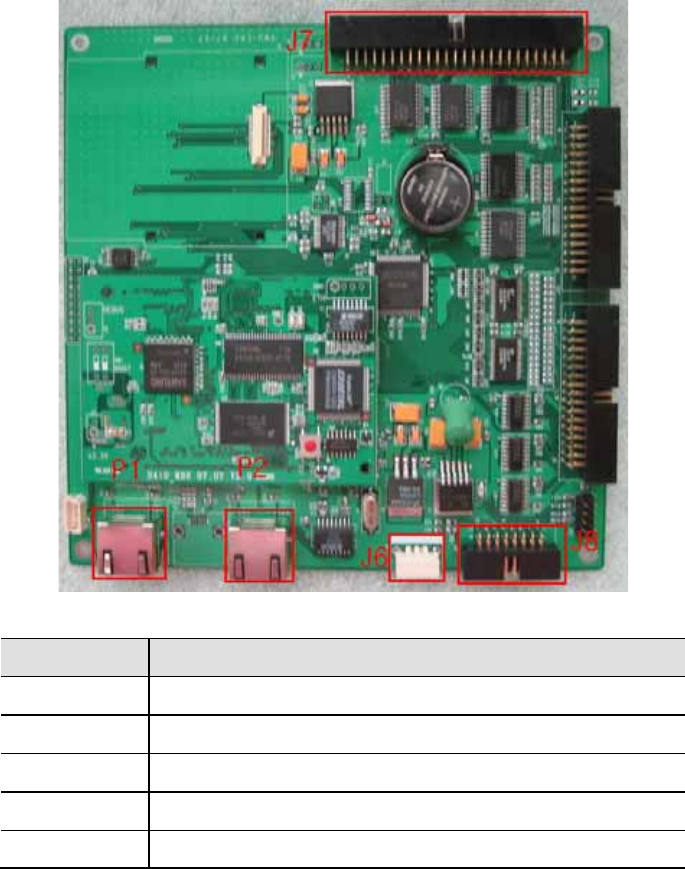

*Pin Map*
Port Connected to
J6 MCU Vcc(+12V)
J7 CDMA DL,UL Control Pin
J8 PSU Alarms / Status LEDs
P1 Local
P2 Remote
