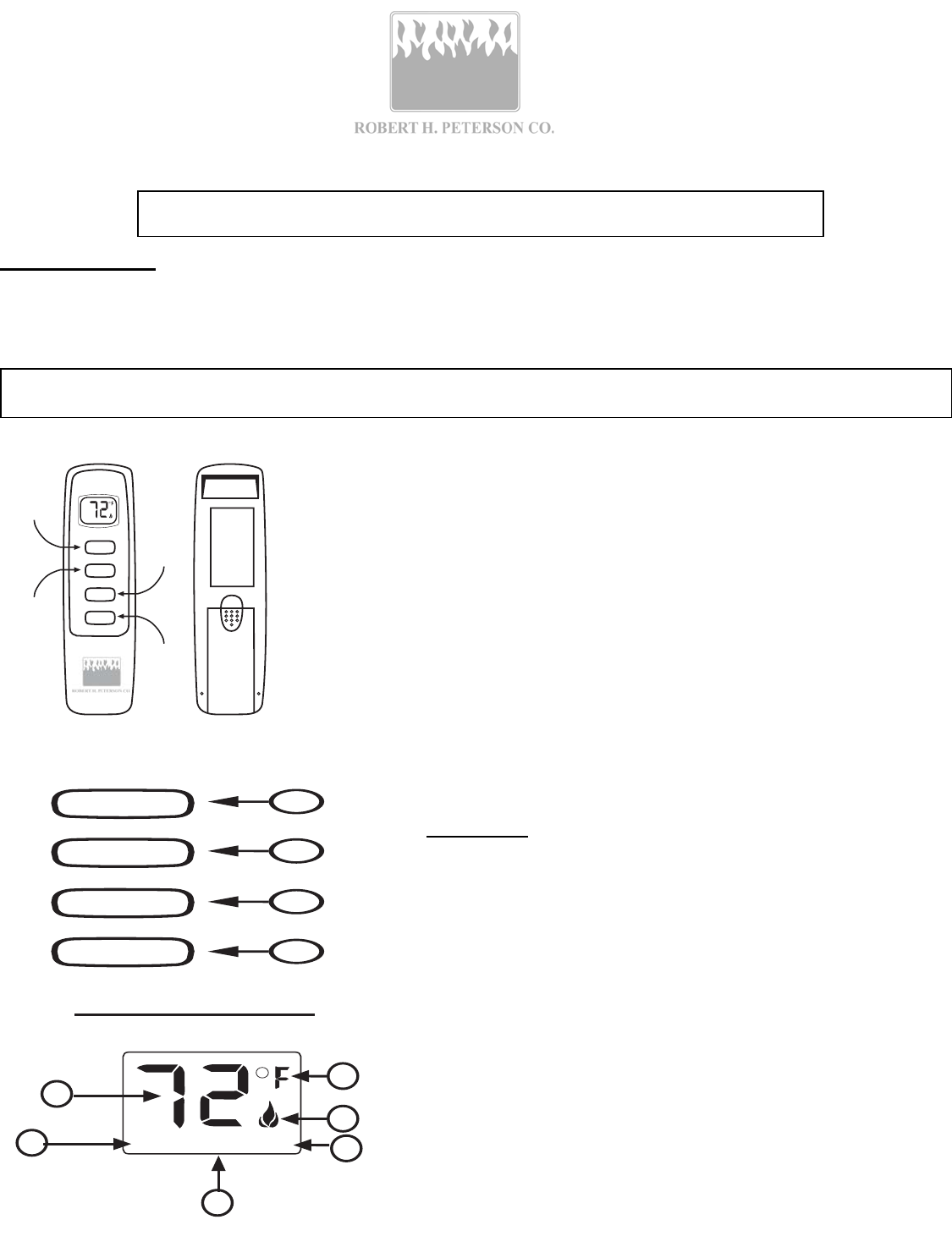

Rev. 1/31/06 Page 1 of 8

RR-2A

INSTALLATION AND OPERATING INSTRUCTIONS

INTRODUCTION

This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating

appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a

non-directional signals. The SYSTEM’s operating range is approximately 20 feet range. The system operates on one of 1,048,576

security codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of the

transmitter prior to initial use.

TRANSMITTER

This remote control SYSTEM offers the user a battery-operated remote control

that operates most millivolt gas valves used in some heater rated gas logs, gas

fireplaces and other gas heating appliances.

The transmitter operates on (2) 1.5V AAA batteries.

It is recommended that ALKALINE batteries always be used for longer battery life

and maximum operational performance.

Before using the transmitter, install the (2) AAA transmitter batteries into the

battery compartment. (Use caution that batteries are installed in the proper

direction)

KEY SETINGS

• ON - Operates unit to on position, Manually ON.

• OFF - Operates unit to off position, Manually OFF.

• MODE - Changes unit from manual mode to thermo mode.

• SET - Sets temperature in thermo mode.

1. DISPLAY Indicates CURRENT room temperature .

F OR

C Indicates degrees Fahrenheit or Celsius.

3. FLAME Indicates burner/valve in operation.

4. ROOM Indicates remote is in THERMO operation.

5. TEMP Appears during manual operation.

6. SET Appears during time the of setting the desired

temperature in the thermo operation.

ROOM

LCD - Liquid Crystal Display

TEMP

SET

MODE

OFF

SET

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT

ATTEMPT TO INSTALL OR OPERATE

Review COMMUNICATION SAFETY SECTION under TRANSMITTER section. These signal/temperature safety features shut down the

fireplace system when a potentially unsafe condition exists.

MODE

OFF

BUTTON

WALL CLIP

SLOT

BATTERY

COMPARTMENT

FRONT BACK

OFF

SET

BUTTON

MODE

BUTTON

SET

BUTTON

Summary of content (8 pages)

PAGE 1
RR-2A INSTALLATION AND OPERATING INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE INTRODUCTION This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a non-directional signals. The SYSTEM’s operating range is approximately 20 feet range.
PAGE 2
0 0 SETTING F / C SCALE 0 0 The factory setting for temperature is F. To change this setting to C, first • TEMP Press the ON key and the OFF key on the transmitter at the same 0 0 time this will change from F to C. Follow this same procedure to 0 0 change from C back to F. MANUAL FUNCTION To operate the system in the manual “MODE” does the following. TEMP SCREEN WHILE DEPRESSING ON KEY SCREEN AFTER 3 SECOND DEFAULT ON OPERATION Press the ON key the appliance flame will come on.
PAGE 3
Press the MODE key to disengage the thermo mode. The word ROOM on the LCD screen will not show when the thermo is not in operation. 0 0 NOTE: The highest SET temperature is 99 Fahrenheit (32 Celsius) 0 0 and the lowest temperature is (45 Fahrenheit (6 Celsius) OPERATIONAL NOTES: The Thermo Feature on the transmitter operates the appliance whenever the ROOM TEMPERATURE varies a certain number of degrees from the SET TEMPERATURE. This variation is called the “SWING” or TEMPERATURE DIFFERENTIAL.
PAGE 4
INSTALLATION The remote receiver can be either wall-mounted in a standard plastic switch box or placed on or near the fireplace hearth. Preferably, the remote receiver should be wall-mounted in a plastic switch box, as this will protect its electronic components from both the heat produced by the gas appliance and potential damage or abuse that can occur if it is left exposed on the hearth. PROTECTION FROM EXTREME HEAT IS VERY IMPORTANT.
PAGE 5
SYSTEM CHECK MILLIVOLT VALVES Light your gas appliance following the lighting instructions that came with the appliance. Confirm that the pilot flame is on; it must be in operation for the main gas valve to operate. • • • • • Slide the 3-position button on the remote receiver to the ON position. The main gas flame (i.e., the fire) should ignite. Slide the button to OFF. The flame should extinguish (the pilot flame will remain on).
PAGE 6
COMMUNICATION – SAFETY – TRANSMITTER – (C/S – TX) This remote control has a COMMUNICATION –SAFETY function built into its software. It provides an extra margin of safety when the TRANSMITTER is out of the normal 20 foot operating range of the receiver. The COMMUNICATION – SAFETY feature operates in the following manner, in all OPERATING MODES – ON/ ON THERMO.
PAGE 7
TROUBLE SHOOTING If you encounter problems with your fireplace system, the problem may be with the fireplace itself or it could be with the 1001 TH remote system. Review the fireplace manufacturer's operation manual to make sure all connections are properly made. Then check the operation of the remote in the following manner: • • • • • • Make sure the batteries are correctly installed in the RECEIVER. One reversed battery will keep receiver from operating properly.
PAGE 8
Warranty Covering R. H. Peterson Company Remote Controls This warranty is for the original purchaser of the product and is non-transferable. This warranty applies to products purchased for residential purposes. Please keep a copy of your sales slip as you will be asked to show proof of purchase for warranty claims. Should any part fail because of defective workmanship or material within one year of the original date of retail purchase, R.H. Peterson Company will repair or, at R.H.
