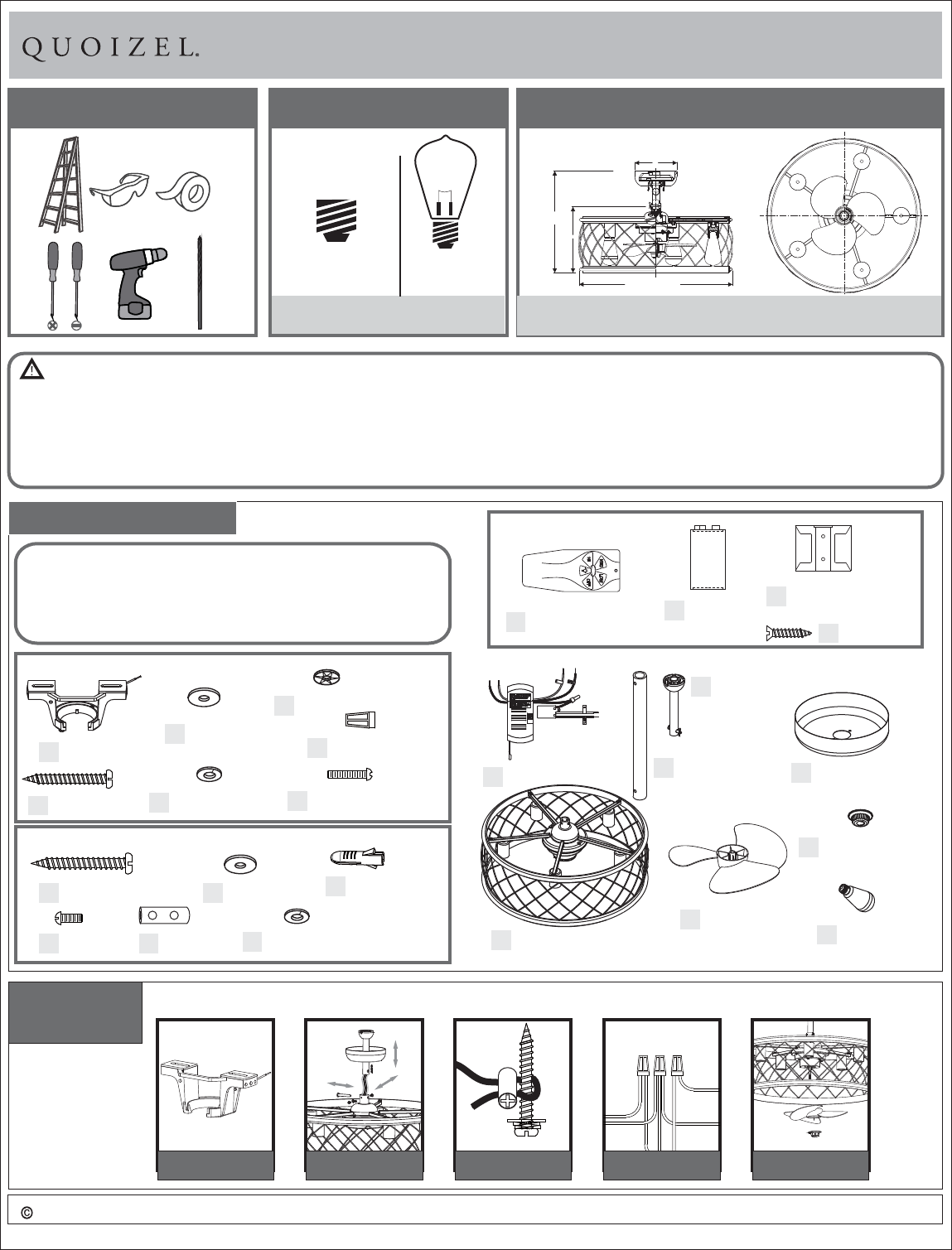

Installation Sheet

ManualsBrandsQuoizel ManualsCeiling FixturesQuoizel Dury 5 Light 22" Wide Semi-Flush Drum Ceiling Fixture

1of6

For Style RDY3022CS

Installation Guide #IS-RDY3022CS

2018 QuoizelInc.

visit us on-line at www.quoizel.com

Ceiling Bracket Downrod Install Cable Wiring

Canopy&

Fan Blade

Table of

Contents

STEP 1 STEP 2-4 STEP 5 STEP 6 STEP 8

LightSourceToolsRequired

BULB BASETYPE

MEDIUM (E26)

5BULBSREQUIRED

BULBINCLUDED

LED8W

BULB SHAPE

TYPE S

FixtureHangingHeight

6” Dia.

22” Dia.

14.5” or 22.5”

9.75”

FINISH: CENTURY SILVER LEAF

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

Hanger Frame

Wood Screw

Wall Anchor

Flat Washer

Lock Washer

Spring

Washer

Package Contents

Screw

Flat Washer

Set Screw

Fastener

Wire Connector

Remote Control

Transmitter X 1

Batteries

Mounting Bracket

Screw

PARTS BAG 1

PARTS BAG 2

PARTS BAG 3

Receiver

12” Rod

Rod Assembly

Ceiling Canopy

Fixture Body

Fan Blade

Blade Assembly

Nut X 1

Machine screw

Spring

Washer

LED

Bulb

Preparation: Identify and inspect all parts before beginning

installation. Check package content list and diagrams below to

ensure all parts are present. If any parts are missing or damaged,

do not attempt to assemble, install, or operate the fixture.

Missing Parts? Contact your original place of purchase.

ReleasedDate:2019-03-20

Summary of content (6 pages)

PAGE 1
Installation Guide #IS-RDY3022CS For Style RDY3022CS Tools Required Light Source Fixture Hanging Height 6” Dia. LED 8W 9.75” 14.5” or 22.5” BULB BASETYPE BULB SHAPE MEDIUM (E26) TYPE S 22” Dia. 5 BULBS REQUIRED BULB INCLUDED FINISH: CENTURY SILVER LEAF Warnings and Cautions Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt. These instructions are provided for your safety.
PAGE 2
STEP 1 Use machine screws when securing to existing ceiling fan-rated outlet box. that supports of 50 lbs (22.72 kg) or less. Use wood screws When securing to support structure with approved electrical outlet box. Drill 9/64” pilot holes. This fan cannot be used for the ceiling which angle is greater than 10 degree. For angled ceilings, point opening toward peak.
PAGE 3
STEP 3 Remove the pre-installed setscrew so that the downrod can be inserted. Install Downrod to Fan/Fixture Body STEP 4 Pick the fan up by the down rod only. Place the downrod ball into the slot in the ceiling bracket. 2018 QuoizelInc. visit us on-line at www.quoizel.com 3of6 Tighten the setscrew with screwdriver. Hand tighten.
PAGE 4
STEP 5-SAFETY CABLE A. Pass the cable through one hole on the Fastener first and then turn back to pass the cable through another hole on the Fastener. Make a small loop that is just large enough for the Screw. Once the loop size is determined, thread the Set Screw into the Fastener and hand tighten until snug. B. Place the Spring Washer and the Flat Washer onto the Screw and pass the Screw through the Cable loop. Thread the Screw into the ceiling, structural support close to the Hanger Frame.
PAGE 5
STEP 6 Making the wire connections using the receiver, for use with the remote control Note: Refer to Step 8 for remote control transmitter bracket installation. A. Making the Wire Connections 1. Connect fixture wires with label “Light L” together; 2. Connect fixture wires with label “N” together; 3. Connect fixture wires with label “ Motor L” togther. B. Making the Wire Connections 1. Wrap bare or green ground wire around green ground screw on the crossbar, no less than 2 inches from the end of the wire.
PAGE 6
STEP 7 Lift Ceiling Canopy to the Hanger Frame and attach screws to lock canopy in place on the Hanger Frame a. Attached Blade Assembly to center spleen on the bottom of the Fan/Light fixture and secure with Blade Assembly Nut. Hand tighten b. Insert the LED bulbs into the socket and thread in place. Wall STEP 8 Install Remote Control Transmitter Wall Bracket (If being used) a. Place Remote Control Mounting Bracket on the wall in desired location and use two screws supplied to attach to the wall. b.
