Installation Sheet

Pleasegoto forproductcleaningtips.Gotothe selection.
Integrated15WLED
:LutronDVELV-300PorLutronSELV-300P.
www.quoizel.com Care+Maintenance
LightSource:
CompatibleDimmerSwitches
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:
Preparation:
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
1of2

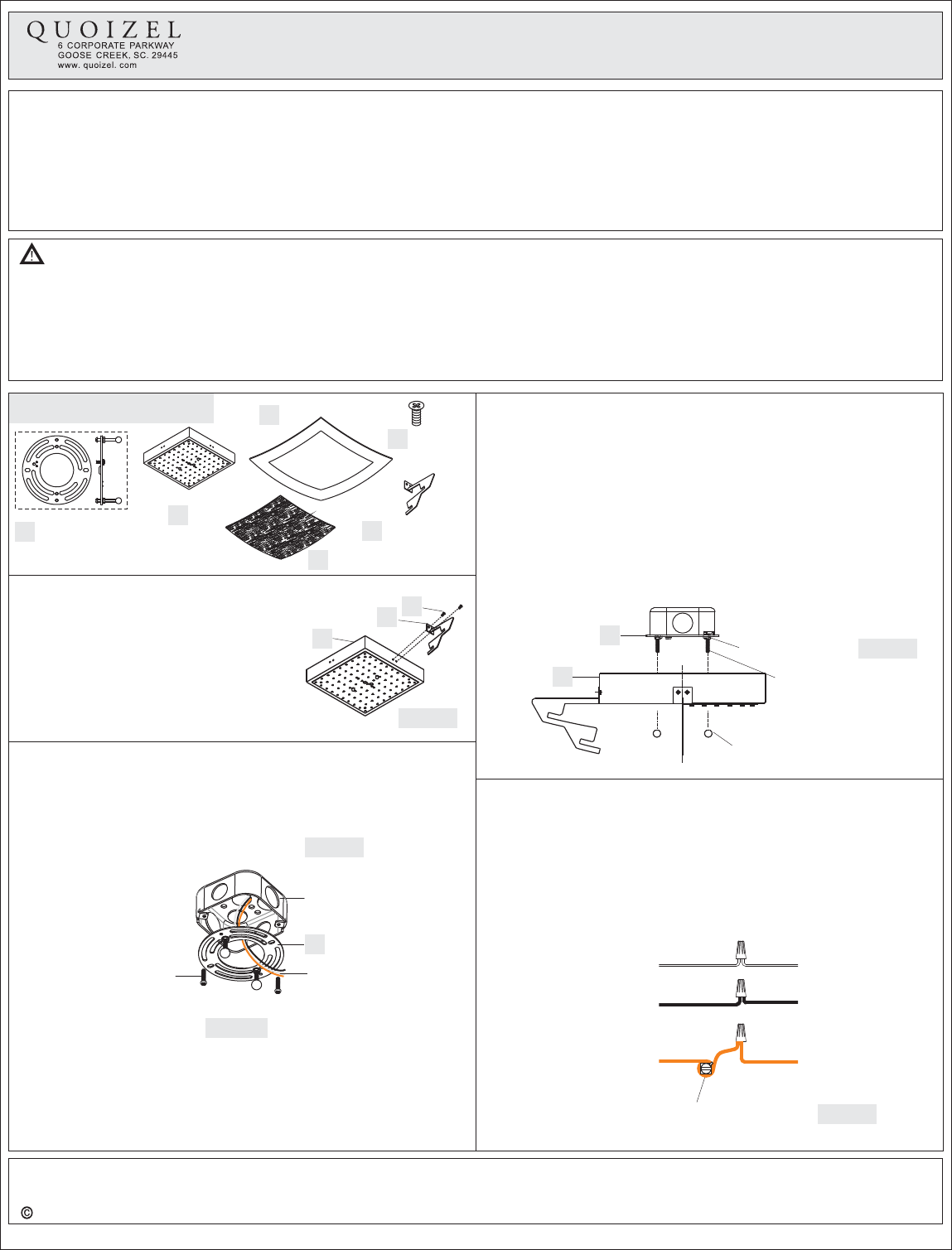

Assembly Instruction Sheet #IS-PCSM1616C
For Style PCSM1616C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Package Contents
B
Fixture
Body
x1
D
Glass B
x1
F
Shade Holder
x4
Figure 2
E
Lock
Screw
x8
2016 QuoizelInc.
C
Glass A
x1
STEP 1 Install Shade to Fixture
Body
- Holder
A. Place Shade Holder (F) over the three
sides of the Fixture Body (B), line up the
hole on the Shade Holder (F) and the
mounting hole on the Fixture Body (B),
secure by threading Lock Screw (E) into
the mounting hole, tighten until sung.
Figure 1
A
Crossbar Assembly
x1
B
F
E
STEP 2 Install Crossbar Assembly-
.
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
Supply Wires with
Ground Wire
Outlet Box Screws
(not included)
Outlet Box
Figure 2
A
STEP 3 Test Fitting Ceiling Canopy to Crossbar Assembly-
A.
to the
ceiling
Remove mounting balls from the Crossbar Assembly (A). Fit the
(B) Crossbar Assembly (A) and secure with
mounting balls. Note: The should be snug against
the and the mounting balls. If
Fixture Body
Fixture Body (B)
not, adjust the length of the
nipple on the Crossbar Assembly (A) by unscrewing the
preassembled hex nut and lock washer and then screwing the
mounting screws in or out of the crossbar until the correct length is
achieved. Once the Fixture Body (B) is secure, remove the
mounting ball and Fixture Body (B) and proceed to Step 4.
Mounting
Screw
Hex Nut and
Lock Washer
Mounting Ball
A
B
Figure 3
STEP 4 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
Green Ground Screw
on the Crossbar
White wire
from outlet box
White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
