Installation Guide

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
BulbRecommended:
Estimated Assembly Time:
Preparation:
(2)MediumBase60WMaximum,Alternatebulb(2)13WCFL
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
1of1

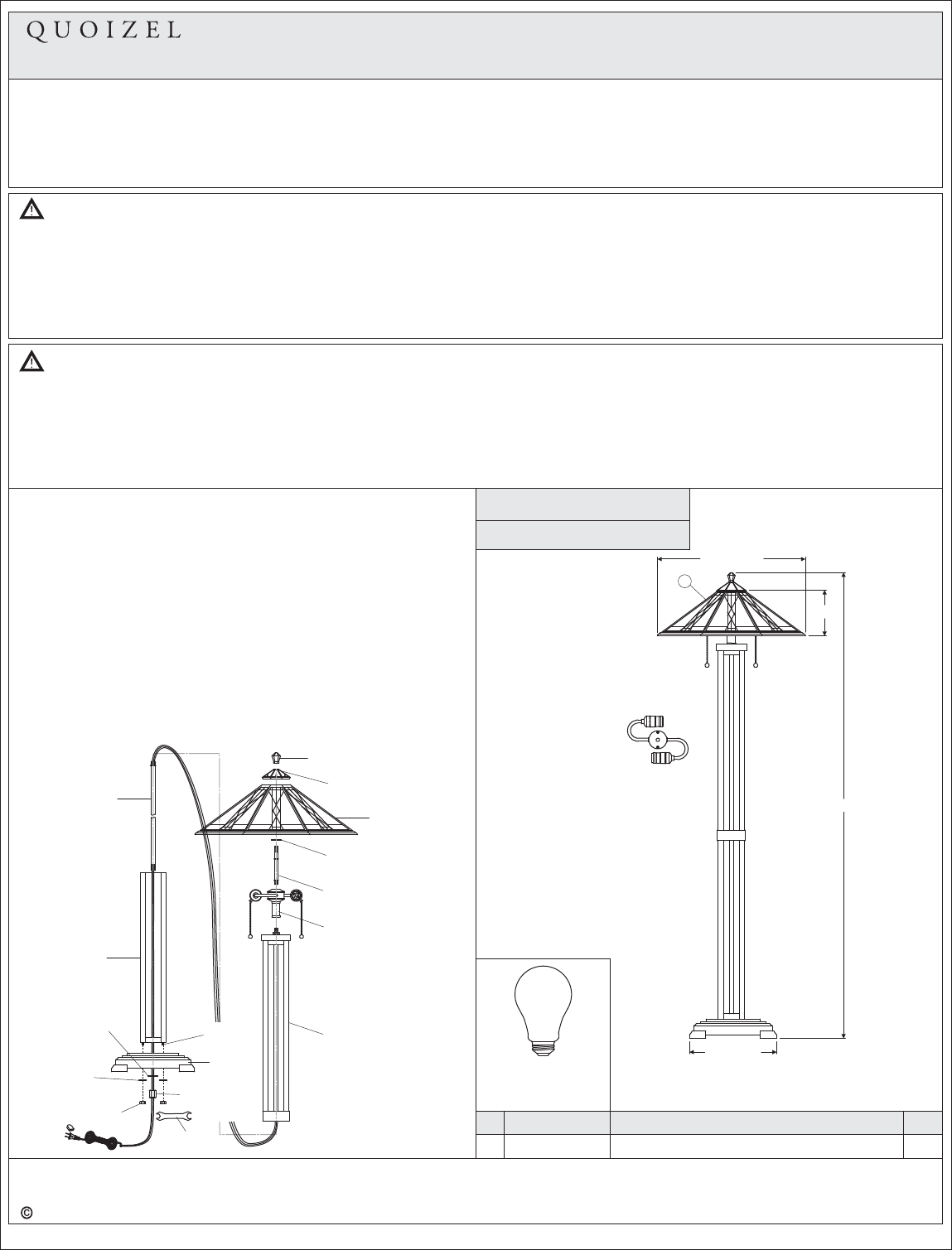

Assembly Instruction Sheet #IS-MCCS9357AS
For Style MCCS9357AS
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
July2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
A. Thread Socket Assembly on to Column with Stem, hand tighten until
sung. Thread Long Stem into the Column with Stem properly.
B. Place the bolts on the bottom of the Column through the holes on the
Base. Secure by threading Small Hole Flat Washers and Hex Nuts
onto Bolts. Hand tighten until snug.
C. Pass the Column, Base and Flat Washer through the Long Stem. By
using thread the Hex Coupling onto the Long Stem. Hand
tighten until sung. Note : Pull the cord from the Base as you assemble
the parts together to remove the excess cord between parts.
C. Thread Short Stem onto the Socket Assembly, tighten until snug.
Place the Small Hole Flat Washer, Shade and Cap onto the top end of
the Short Stem and secure with the Finial. Hand tighten until snug.
D. This fixture uses standard bulb with medium base . Maximum 60
watts. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use. Enjoy!
Wrench,
Finial
X1
Shade
X1
MCCS9357AS
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
NO.
(2) 60W
Bulb
(Not Supplied)
Medium
Base
REQ.
FINISH: ANNIVERSARY SILVER
Column
X1
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
Cap
X1
Small Hole
Flat Washer
X1
Short Stem
X1
Column with Stem
X1
Long
Stem
X1
19.5”Dia.
6”
57.5”
10.5”Sq.
S1762MC
SHADE
1
1
1
Socket Assembly
X1
Wrench
x1
Bolt
Hex Coupling
X1
Big Hole
Flat Washer
x1
Hex Nut
x2
Base
x1
Small Hole
Flat Washer
x2
