Installation Guide

Hex Nut
Stem
Diffuser
Stem
STEP 8:
a. Install correct bulbs referring to fixture markings and/or labels for maximum wattage.
STEP 9:
a. Place diffuser and the previously removed rubber
washer with flat washer over the stem.
b. Secure with the previously removed hex nut.
c. Hand-tighten until snug.
STEP 10:
a. Place the previously removed cap over the stem
extruding from the diffuser.
b. Secure with the previously removed finial
c. Hand-tighten until snug.
Rubber Washer with
Flat Washer
Stem
Hex Nut
Cap
Finial
Stem Assembly

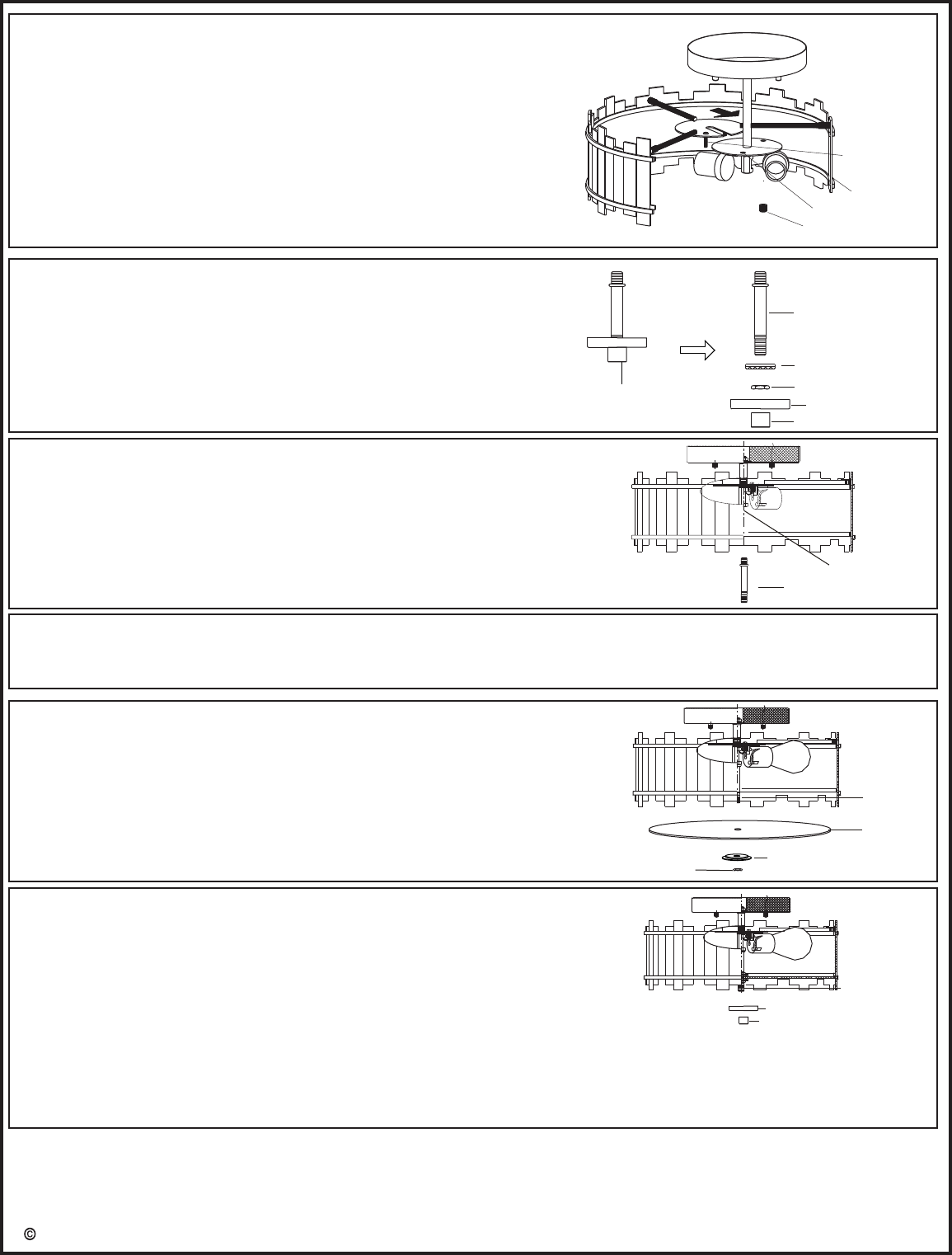

STEP 6:
a. Remove the finial, cap, hex nut, flat washer with rubber
washer from the stem assembly.
STEP 7:
a. Thread the short threaded end of the previously
removed stem onto the coupling on fixture.
b. Hand tighten until snug.
Rubber Washer with
Flat Washer
4
2016 QuoizelInc.
Stem
Coupling
Cap
Finial
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
STEP 5:
a. Remove lock balls from the shade.
b. Attach the plate in the center of the shade onto the plate on
the top of the socket assembly.
c. Place the channel of the plate in the center of the shade
over the center tube and pass the bolts through the holes
on the plate on the top of the socket assembly.
d. Secure by threading previously removed lock balls onto
bolts.
e. Hand tighten until snug.
Lock Balls
Holes
Shade
Lock Screw
