Installation Guide

Mounting
Screw
Hex Nut
Mounting Ball
Ceiling Canopy
3
2016 QuoizelInc.
STEP 2:
a. Remove mounting balls from the crossbar assembly.
b. Fit the ceiling canopy to the crossbar assembly and
secure with mounting balls.
The ceiling canopy should be snug against the
ceiling and the mounting balls.
If not, adjust the length of the mounting screws on the
crossbar assembly by unscrewing the preassembled hex
nuts.
Then, screw the mounting screws in or out of the crossbar
until the desired length is achieved.
Once the ceiling canopy is secure, remove the mounting
balls and ceiling canopy and proceed to Step 3.
Note:
?
?
?
STEP 4:
a. Re-attach the ceiling canopy of the fixture body to the
crossbar assembly.
b. Secure with the previously removed mounting balls.
Crossbar Assembly
Outlet Box Screw
Outlet Box

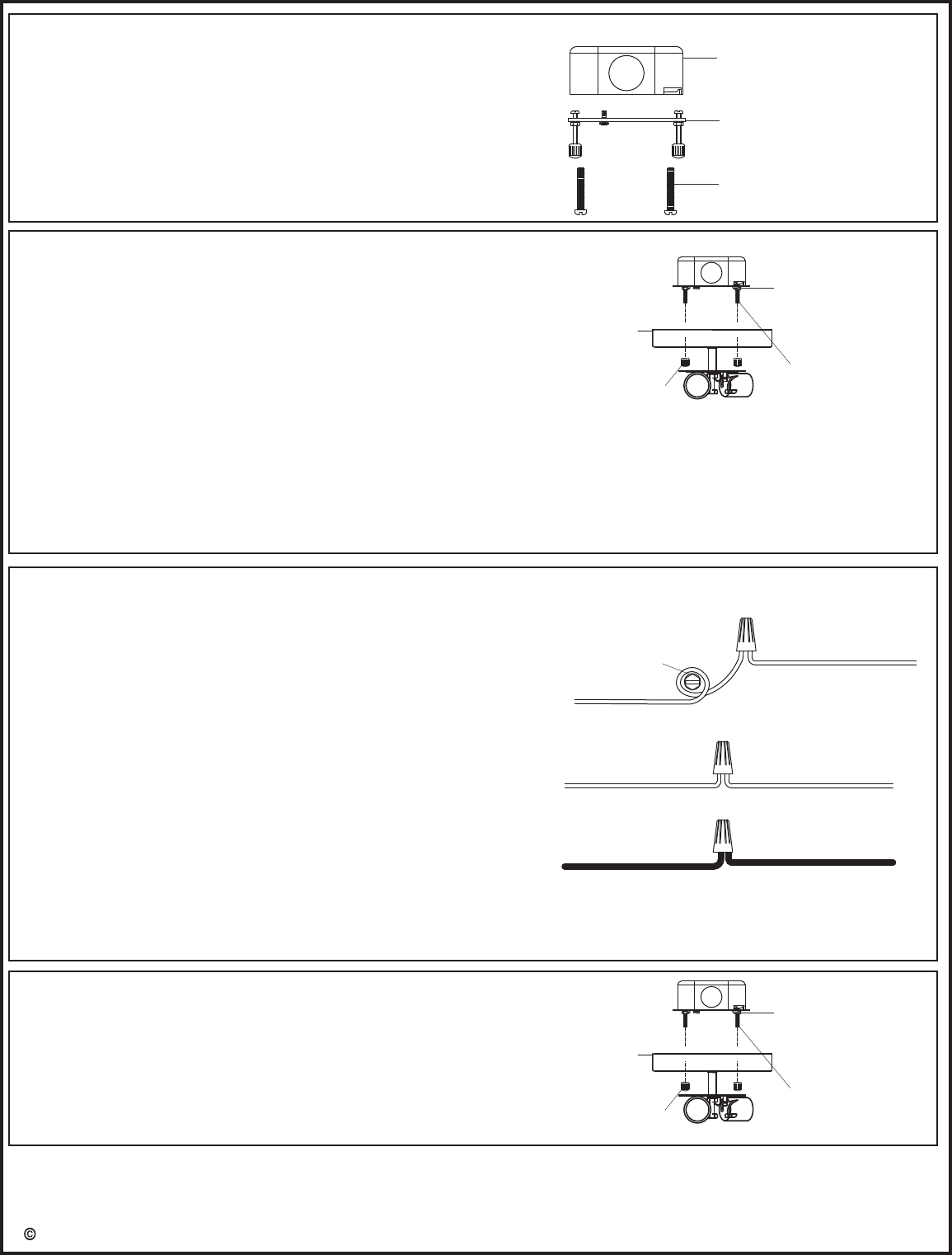

STEP 1:
a. Secure the crossbar to the outlet box (not included) with
outlet box screws.
b. Tighten until snug.
The preassembled mounting screws on the crossbar
should protrude outward.
Note:
Mounting
Screw
Hex Nut
Mounting Ball
Ceiling Canopy
WHITE
BLACK (OR RED) WIRE
WHITE
BLACK
FROM SUPPLY
FROM SUPPLY
FROM FIXTURE
FROM FIXTURE
STEP 3:
* Use Wire Connectors (supplied) to connect the
wires.
a) Ground Wire:
1. Wrap supply around
on mounting bracket, no less than 2 in. from the end of
the wire. Tighten .
2. Connect fixture to wire
with wire connector.
b) Supply Wire:
1. Connect the to the
with wire connector.
2. Connect the wire to the
with wire connector.
3. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
outlet box.
ground wire green ground screw
ground screw
ground wire supply ground
supply white wire white fixture
supply wire
supply black (or red) black
fixture supply wire
GROUND WIRE
GROUND WIRE
FROM SUPPLY
FROM FIXTURE
GREEN GROUND SCREW
